Floor Spring · 21 models in this range

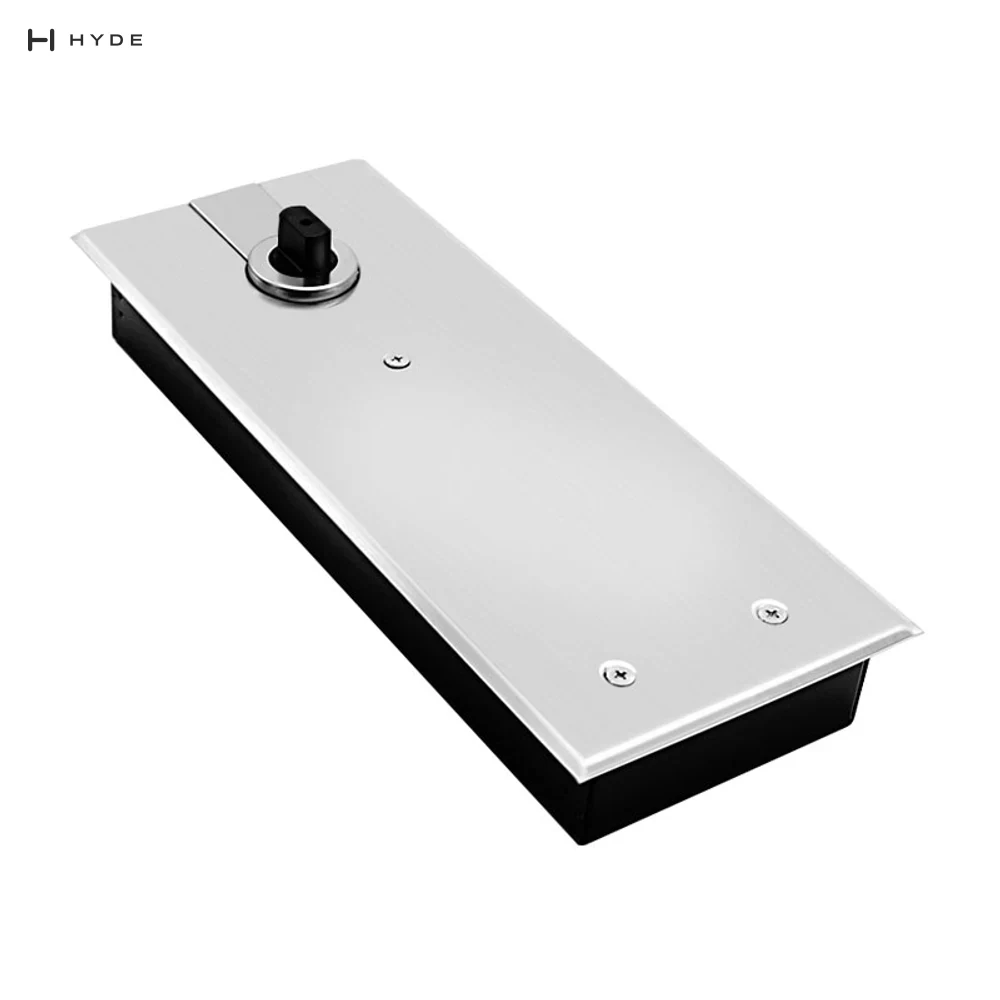

F101 Floor Spring
Floor spring with an iron body and 304 SS outer plates, 129*321.5mm.
- Material
- Iron body and 304 SS outer plates
- Size
- 129*321.5mm (5-1/16" × 12-11/16")
- Finish
- SS/AB/SN/AC/PB are available
- Plate thickness
- 1mm (1/16")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
F101
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Iron body and 304 SS outer plates
- Size
- 129*321.5mm (5-1/16" × 12-11/16")
- Finish
- SS/AB/SN/AC/PB are available
- Plate thickness
- 1mm (1/16")
- Footprint
- 308 × 108mm (12-1/8" × 4-1/4")
- Case depth
- 40.5mm (1-5/8")
Features
- Durability: Tested for over 500,000 open-close cycles
- Adjustment: Latch speed and closing speed adjustable via built-in screws
F101

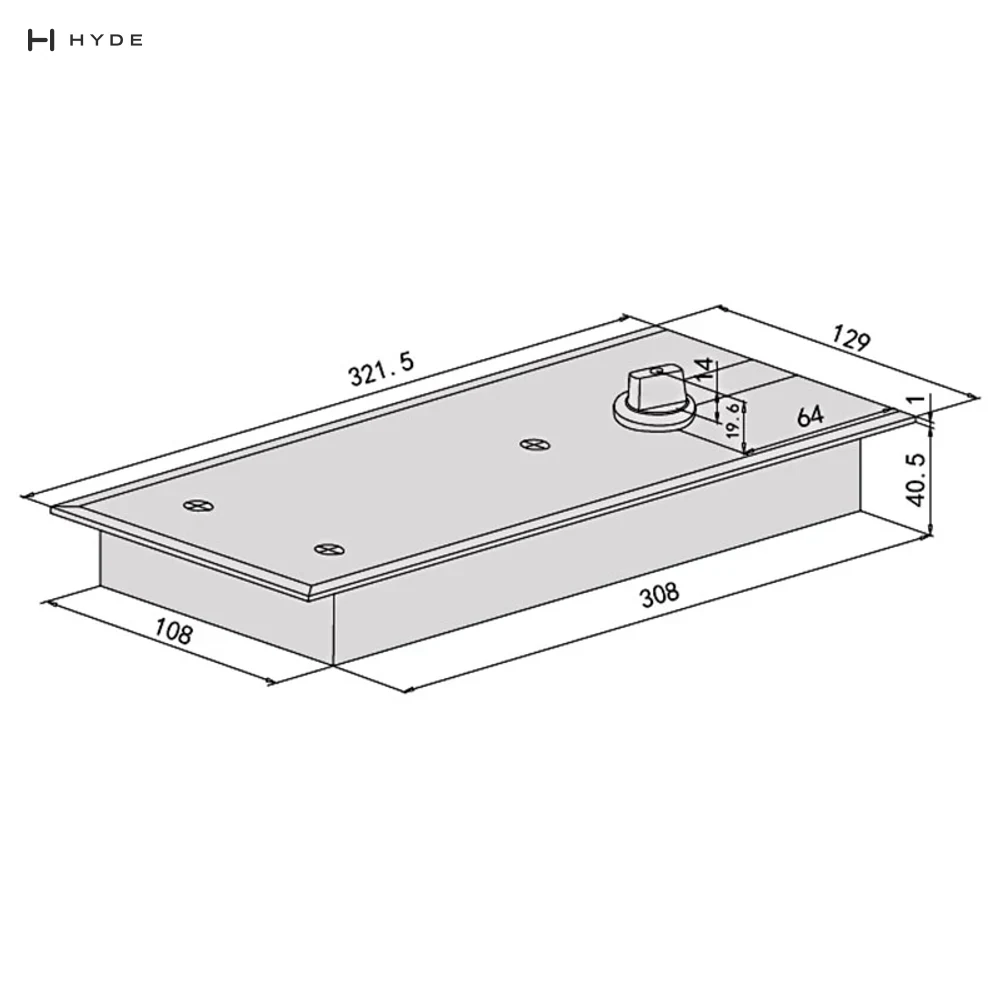

Drawings
Drawings and files published for this model.
F101
Video
10 seconds of the part working.
F101
Common questions
- What is the F101 made from?
- Material of the F101: Iron body and 304 SS outer plates.
- Which finishes is the F101 available in?
- Finishes available for the F101: SS/AB/SN/AC/PB are available.
- What size is the F101?
- Size of the F101: 129*321.5mm.
F101
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishF101, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
F101
Next steps
- Double-Action Doors: Spring Hinge or Floor Spring
Article that cites this model
- Floor Springs for Glass Doors: Door Weight, Door Width and EN 1154 Size
Article that cites this model
- What One Frameless Glass Door Actually Needs
Article that cites this model
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
