Stainless Steel Handle
LH1016 Stainless Steel Handle
Model
LH1016
A stainless steel lever handle in SSS/PSS, brass cylinder preparation.
- Introduction:
- Made from high-quality 304 stainless steel with material certification, this door handle is ideal for modern entry door locks. Contact us for more details.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Find LH1016 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.

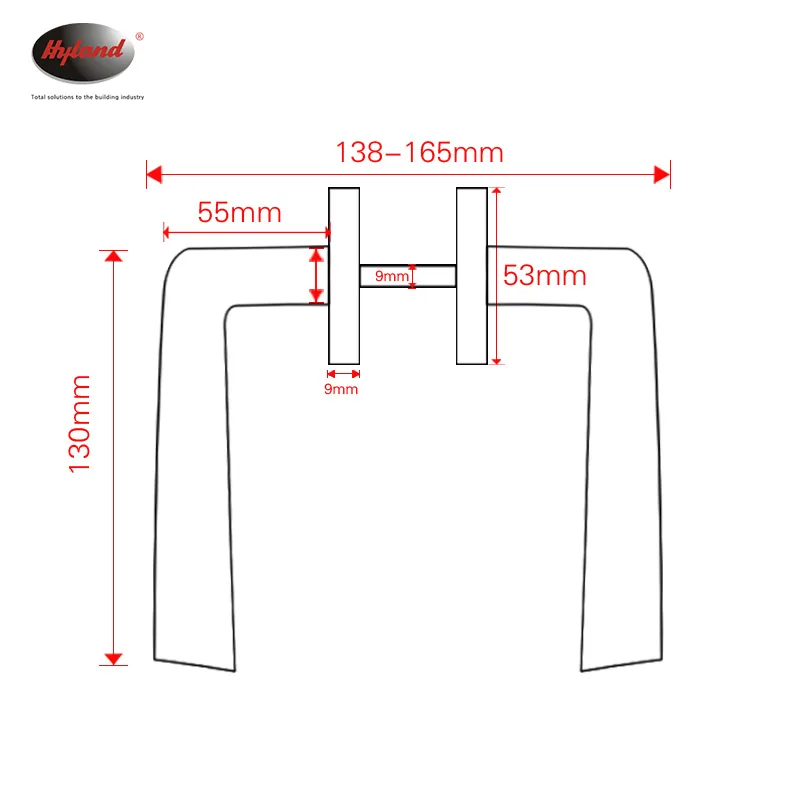

Technical specifications
- Material
- Stainless steel
- Finish
- Satin Stainless Steel (SSS), Polished Stainless Steel (PSS)
- Door thickness
- 35–50mm (1-3/8" to 1-15/16")
- Cylinder
- Brass
- Lever length
- 130mm (5-1/8")
- Rose diameter
- 53mm (2-1/16")
- Rose thickness
- 9mm (3/8")
- Spindle
- 9mm (3/8")
Common questions
- What is the LH1016 made from?
- The LH1016 is made from Stainless steel.
- Which finishes is the LH1016 available in?
- The LH1016 is available in Satin Stainless Steel (SSS), Polished Stainless Steel (PSS).
- What door thickness does the LH1016 suit?
- The LH1016 suits a door thickness of 35–50mm.
- What cylinder does the LH1016 take?
- The LH1016 takes a Brass cylinder.
- What is the ANSI/BHMA finish code for the LH1016?
- Over the Stainless steel base of the LH1016, its finishes correspond to 630 (US32D, Stainless Steel Metal, Satin), 629 (US32, Stainless Steel Metal, Bright) under ANSI/BHMA A156.18.
