Stainless Steel Handle
9004S Stainless Steel Handle
Model
9004S

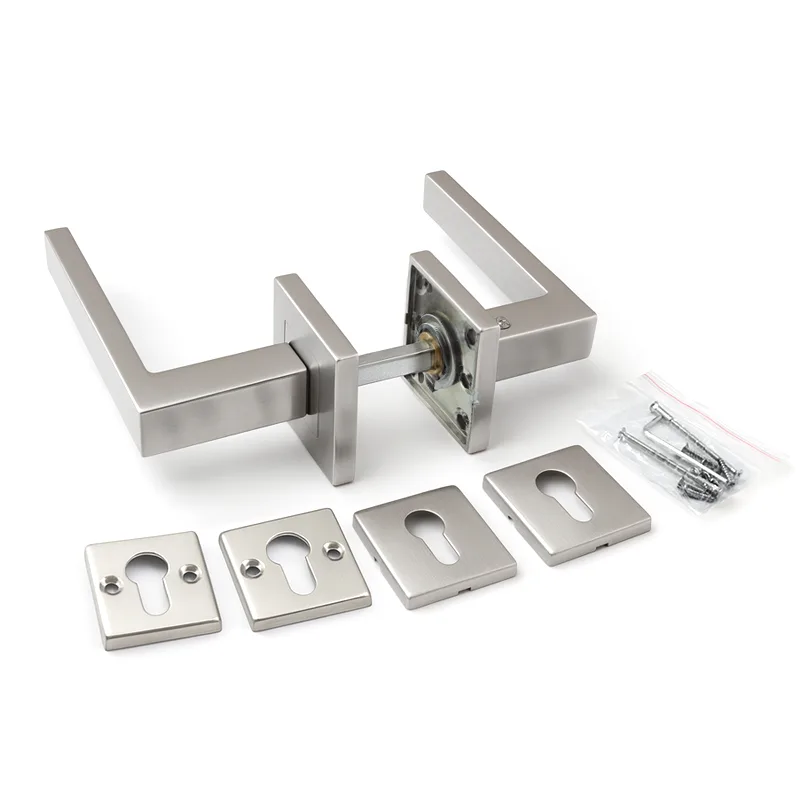

A stainless steel lever handle with a 135mm lever on a 53mm square rose, brass cylinder preparation.
- Introduction:
- Made from high-quality 304 stainless steel with material certification, this door handle is ideal for modern entry door locks. Contact us for more details.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Stainless steel
- Door thickness
- 35–50mm (1-3/8" to 1-15/16")
- Cylinder
- Brass
- Lever length
- 135mm (5-5/16")
- Rose size
- 53mm square (2-1/16")
- Rose thickness
- 8mm (5/16")
- Lever section
- 20mm (13/16")
- Projection
- 63mm (2-1/2")
- Spindle
- 8mm (5/16")
Partial 3D model
9004S
Exterior lever and rose: 135 mm lever length and 53 × 53 × 8 mm rose, based on the published drawing.
Fixing holes, edge radii, spindle length, internal parts and escutcheon are not modeled.
Form reference only. Do not use for machining, door preparation or installation.
Common questions
- What is the 9004S made from?
- The 9004S is made from Stainless steel.
- What door thickness does the 9004S suit?
- The 9004S suits a door thickness of 35–50mm.
- What cylinder does the 9004S take?
- The 9004S takes a Brass cylinder.
