Lever Handle · 45 models in this range

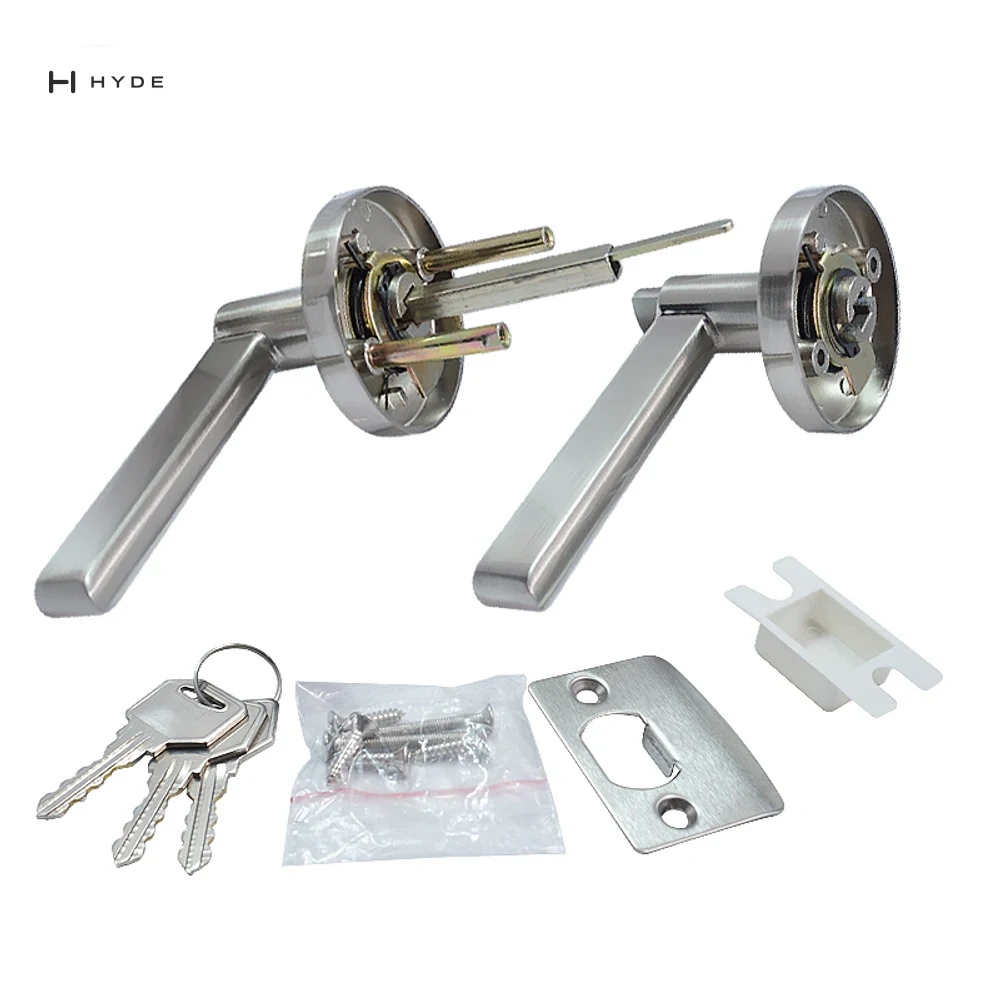

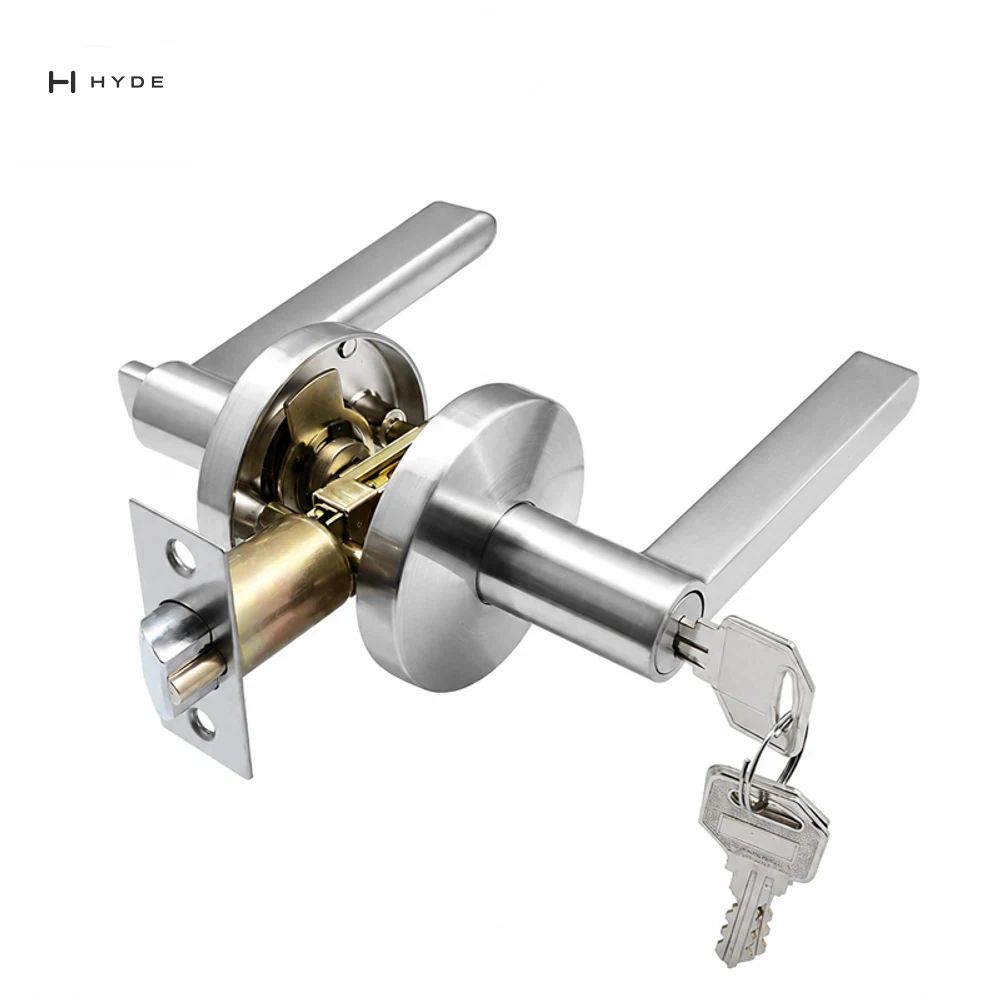

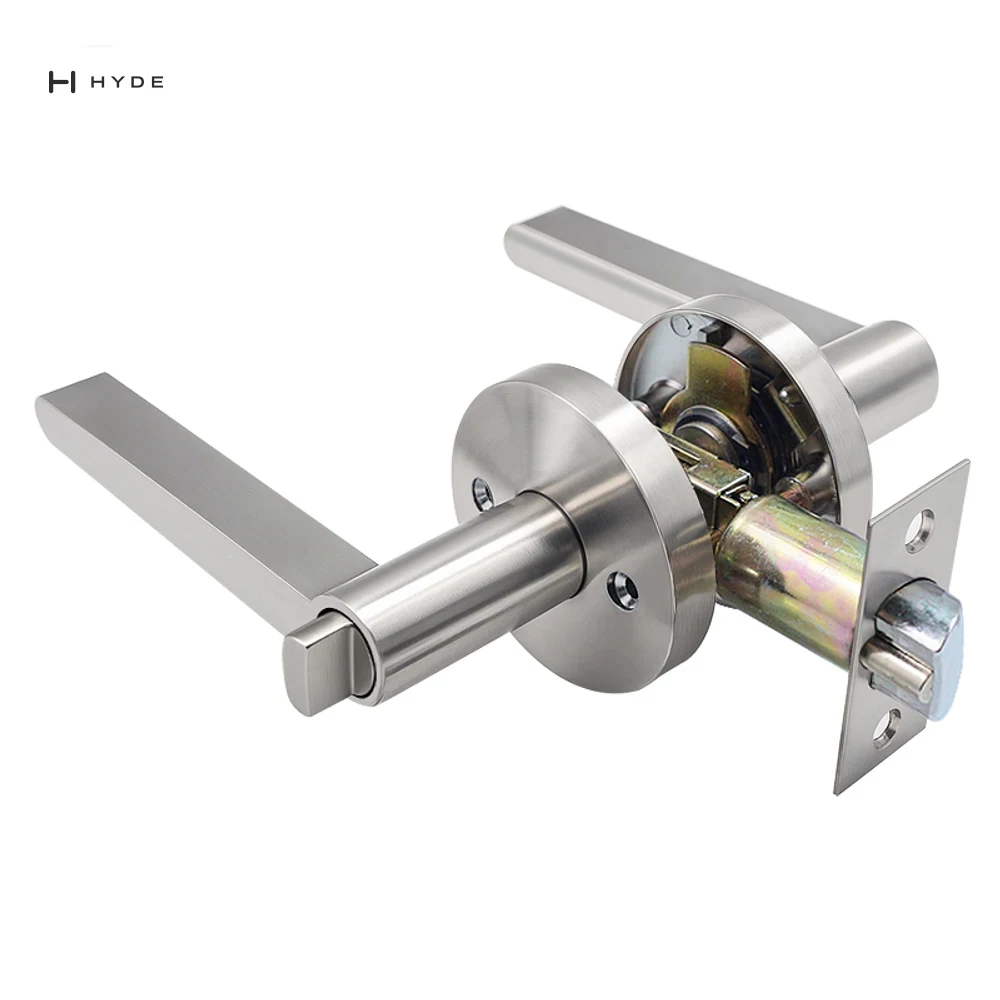

LH853 SNET Tubular Lever Lock
A zinc alloy tubular lever lock, 60mm backset, entrance function, keyed outside, for entrance doors.
- Material
- Zinc alloy
- Backset
- 60mm (2-3/8")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
LH853 SNET
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60mm (2-3/8")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Entrance, keyed outside
- Keying
- Can be keyed alike with deadbolts, or master keyed
- Finish
- Satin nickel
- Application

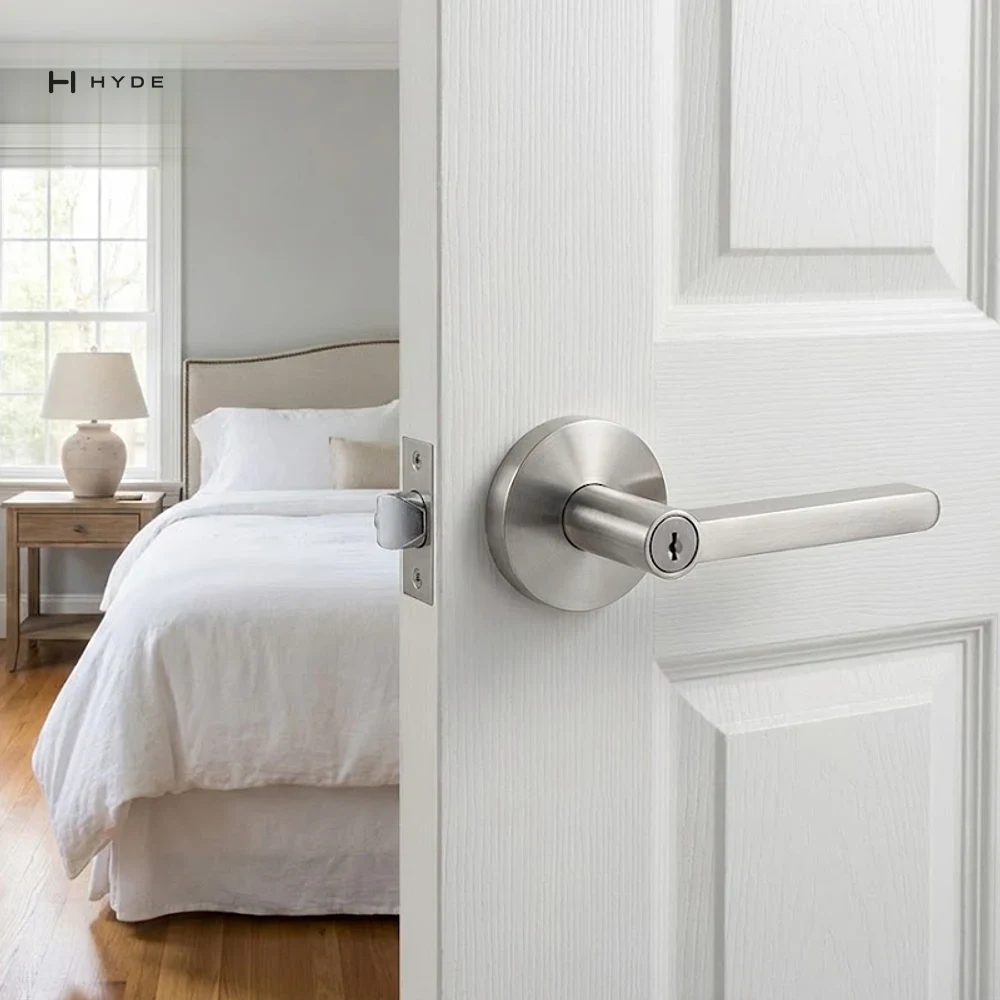

- For entrance doors
Features
- Economical and easy to install, ideal for residential use
- Key or thumb-turn locks/unlocks both levers
- Turn thumb-turn counterclockwise or key clockwise to lock; reverse to unlock
- Zinc-plated steel chassis and latch for corrosion resistance
- Exposed trim available in stainless steel or brass
LH853 SNET

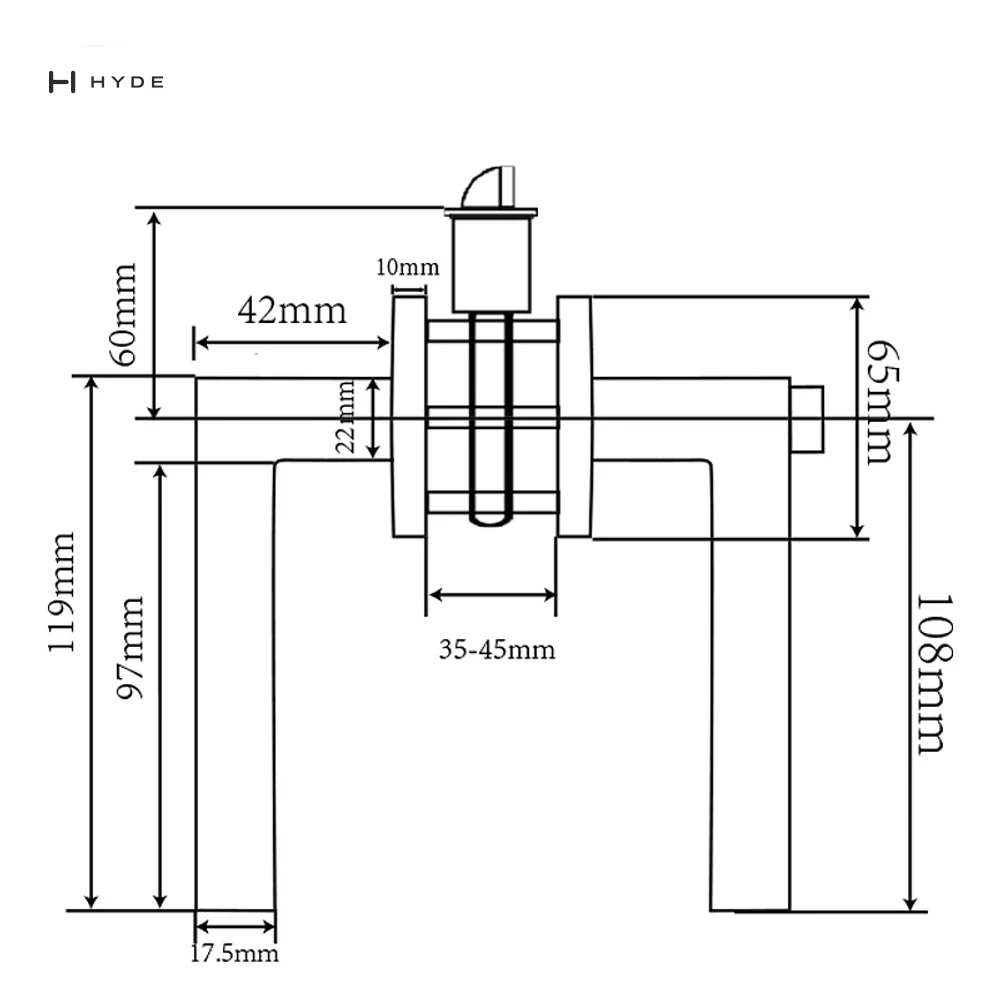

Drawings
Drawings and files published for this model.
LH853 SNET
Video
45 seconds of the part working.
LH853 SNET
Common questions
- What is the LH853 SNET made from?
- Material of the LH853 SNET: Zinc alloy.
- Which finishes is the LH853 SNET available in?
- Finishes available for the LH853 SNET: Satin nickel.
- What backset does the LH853 SNET use?
- Backset of the LH853 SNET: 60mm.
- What door thickness does the LH853 SNET suit?
- Door thickness for the LH853 SNET: 35mm to 45mm adjustable.
- What function does the LH853 SNET provide?
- Function of the LH853 SNET: Entrance, keyed outside.
- How many cycles is the LH853 SNET tested to?
- Cycle rating of the LH853 SNET: 200,000 cycles.
LH853 SNET
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishLH853 SNET, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
