Lever Handle · 45 models in this range

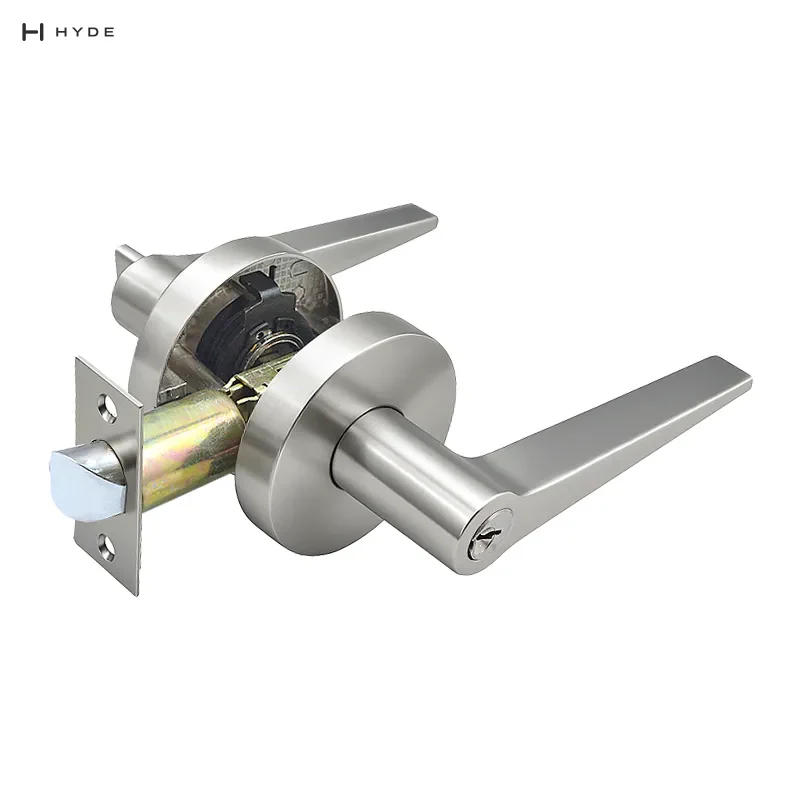

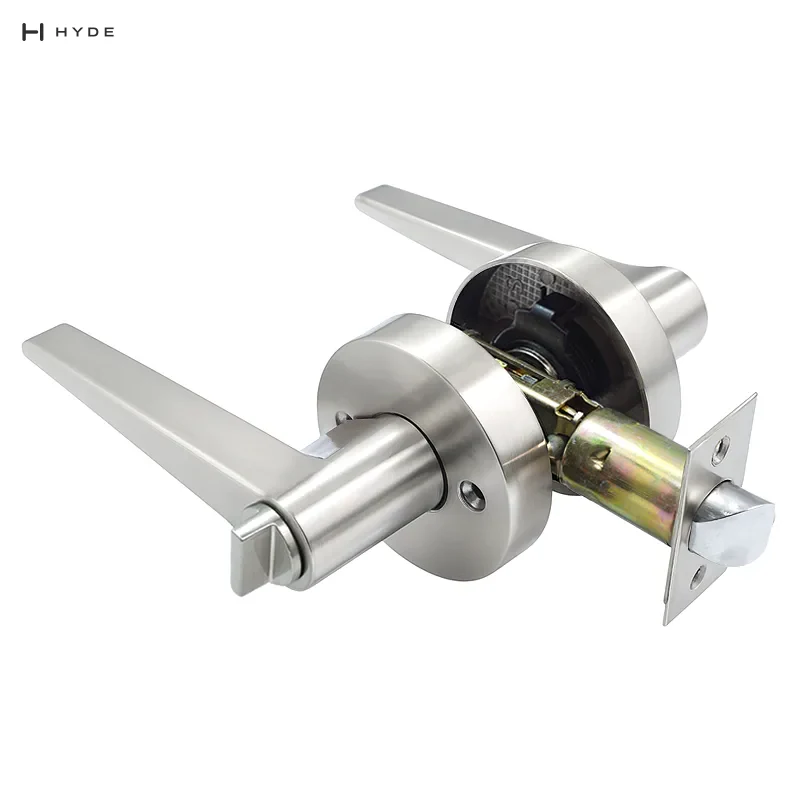

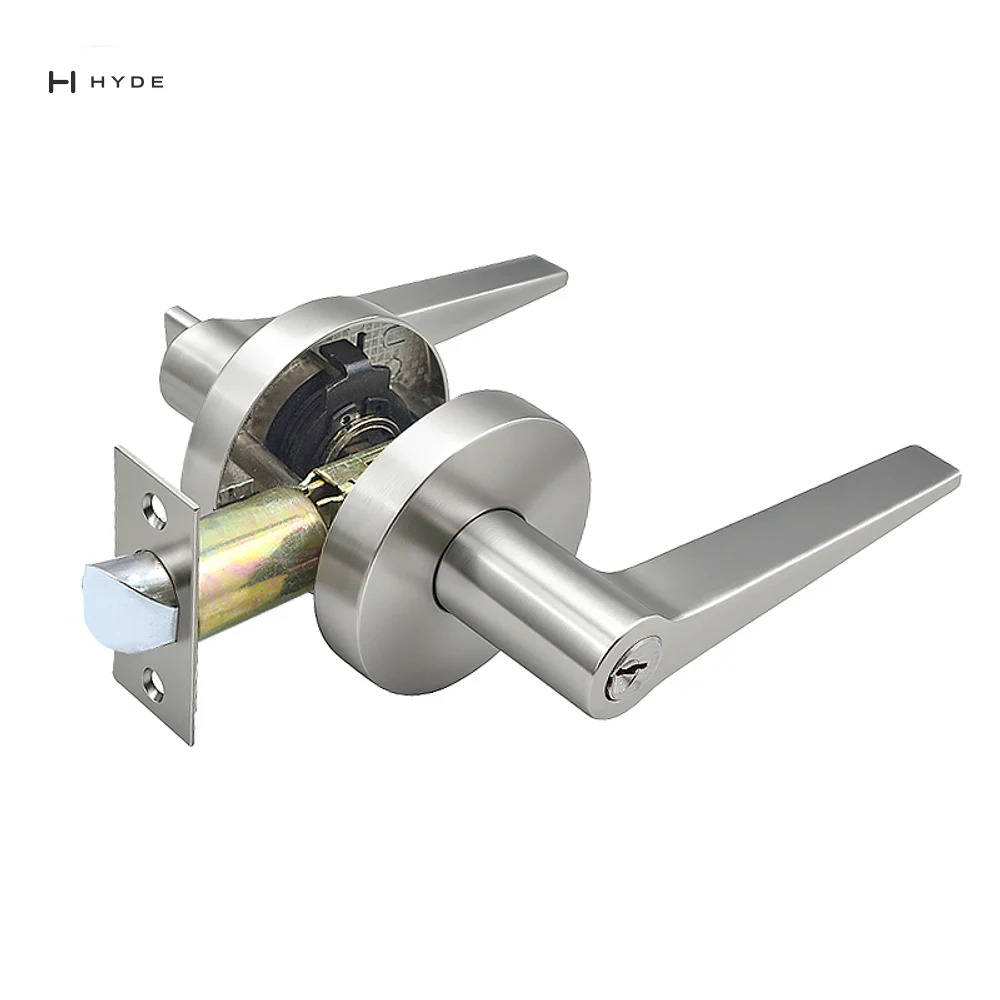

LH854 Tubular Lever Lock
A zinc alloy tubular lever lock with 60/70mm backset, entrance, privacy, passage or dummy function.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
LH854
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Entrance, privacy, passage or dummy
- Keying
- Can be keyed alike with deadbolts, or master keyed
LH854

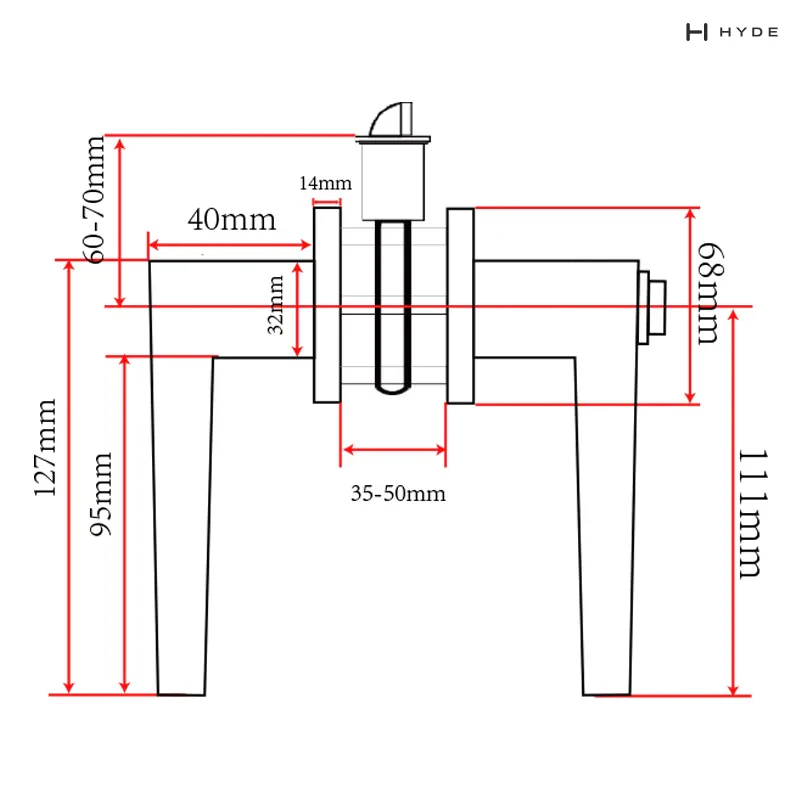

Drawings
Drawings and files published for this model.
LH854
Common questions
- What is the LH854 made from?
- Material of the LH854: Zinc alloy.
- What backset does the LH854 use?
- Backset of the LH854: 60/70mm.
- What door thickness does the LH854 suit?
- Door thickness for the LH854: 35mm to 45mm adjustable.
- What function does the LH854 provide?
- Function of the LH854: Entrance, privacy, passage or dummy.
- How many cycles is the LH854 tested to?
- Cycle rating of the LH854: 200,000 cycles.
- Is the LH854 handed?
- Handing for the LH854: Fully reversible, left or right hand.
LH854
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishLH854, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
