Lever Handle · 45 models in this range

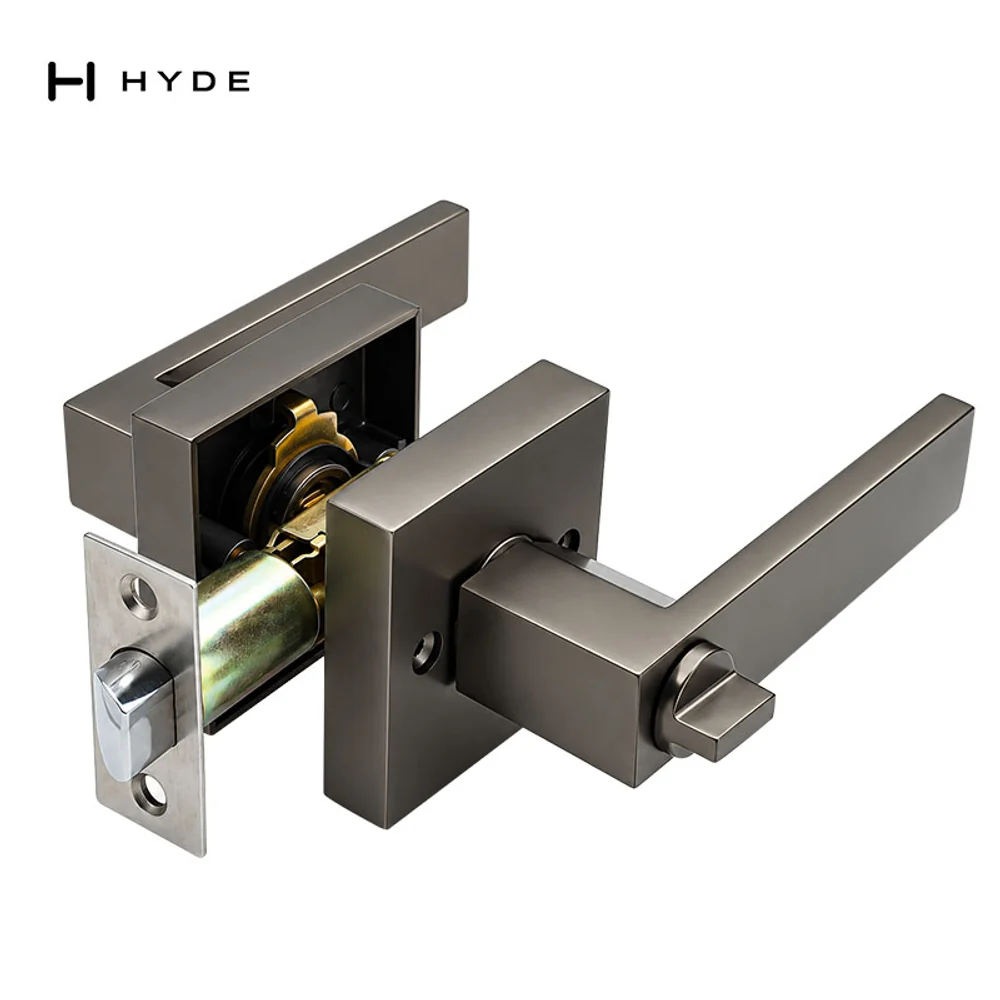

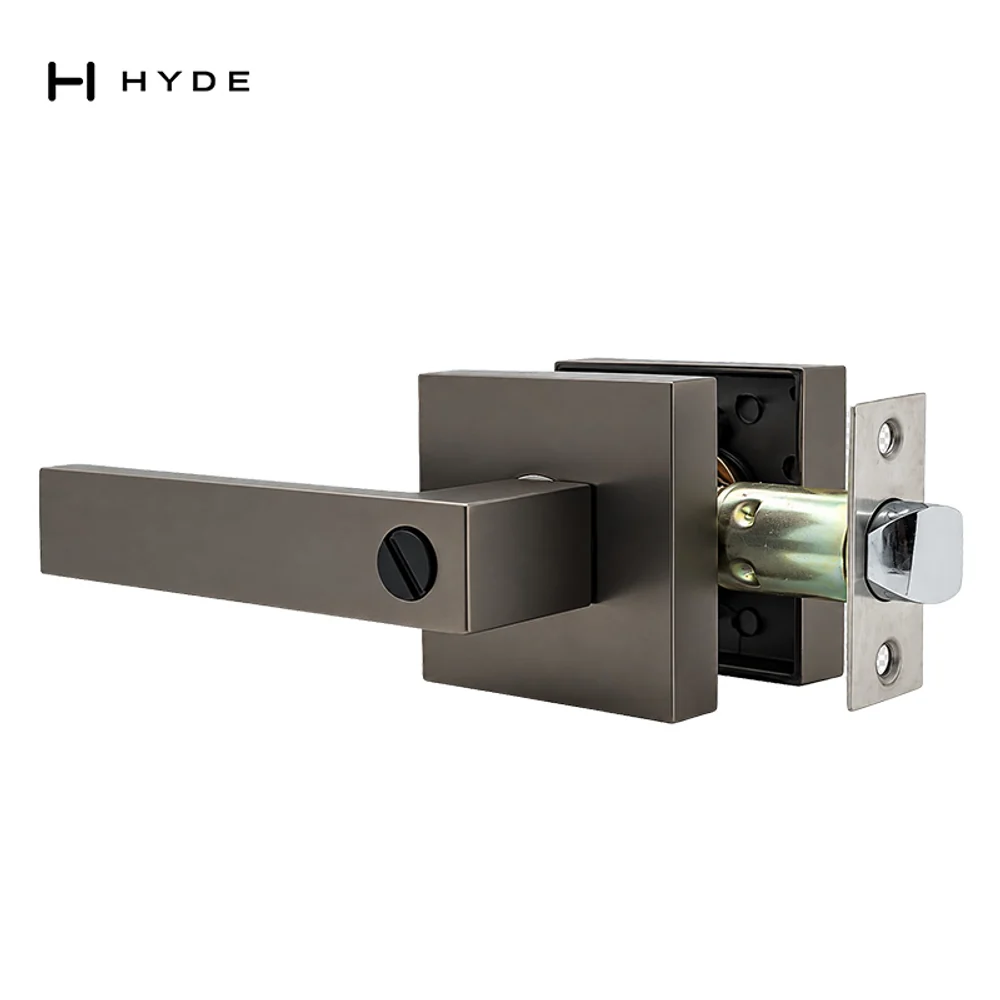

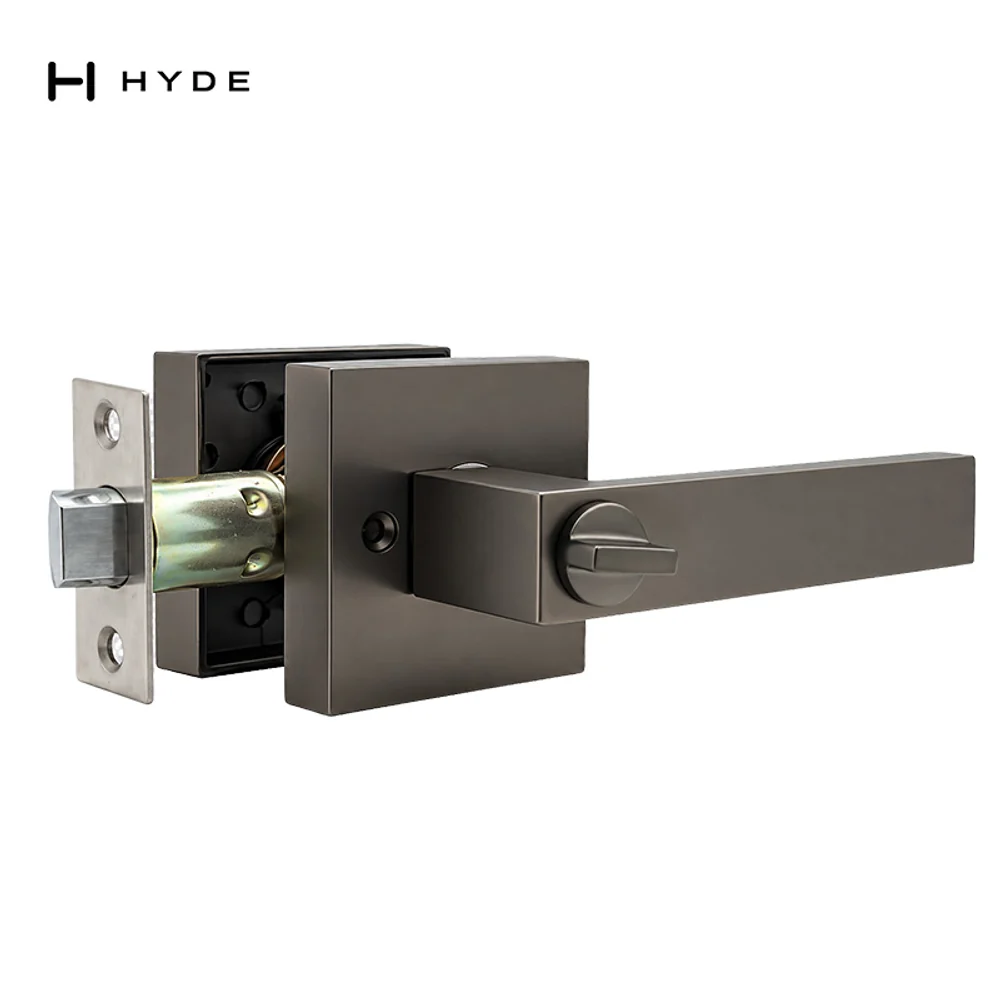

LH852 GMBK Tubular Lever Lock
A zinc alloy tubular lever lock in gun metal with 60/70mm backset, privacy function.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
LH852 GMBK
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Privacy, bathroom, turn button inside
- Finish
- Gun metal (GM)
- Latch
- Adjustable 60–70mm (2-3/8" to 2-3/4")
- Handling
- Fully reversible for left or right-hand doors
- Application
- For Privacy doors
- Lever length
- 120mm (4-3/4")
- Rose size
- 65 × 65mm (2-9/16" × 2-9/16")
Features
- Economical and easy to install, ideal for residential applications
- Thumb-turn inside locks both levers at once; emergency release slot outside
- Locking: turn the thumb-turn inside; in an emergency, open from outside with a coin or flat tool in the release slot
- Zinc-plated steel latch and chassis for corrosion resistance
- Trim in electroplated zinc die-casting or solid brass
LH852 GMBK

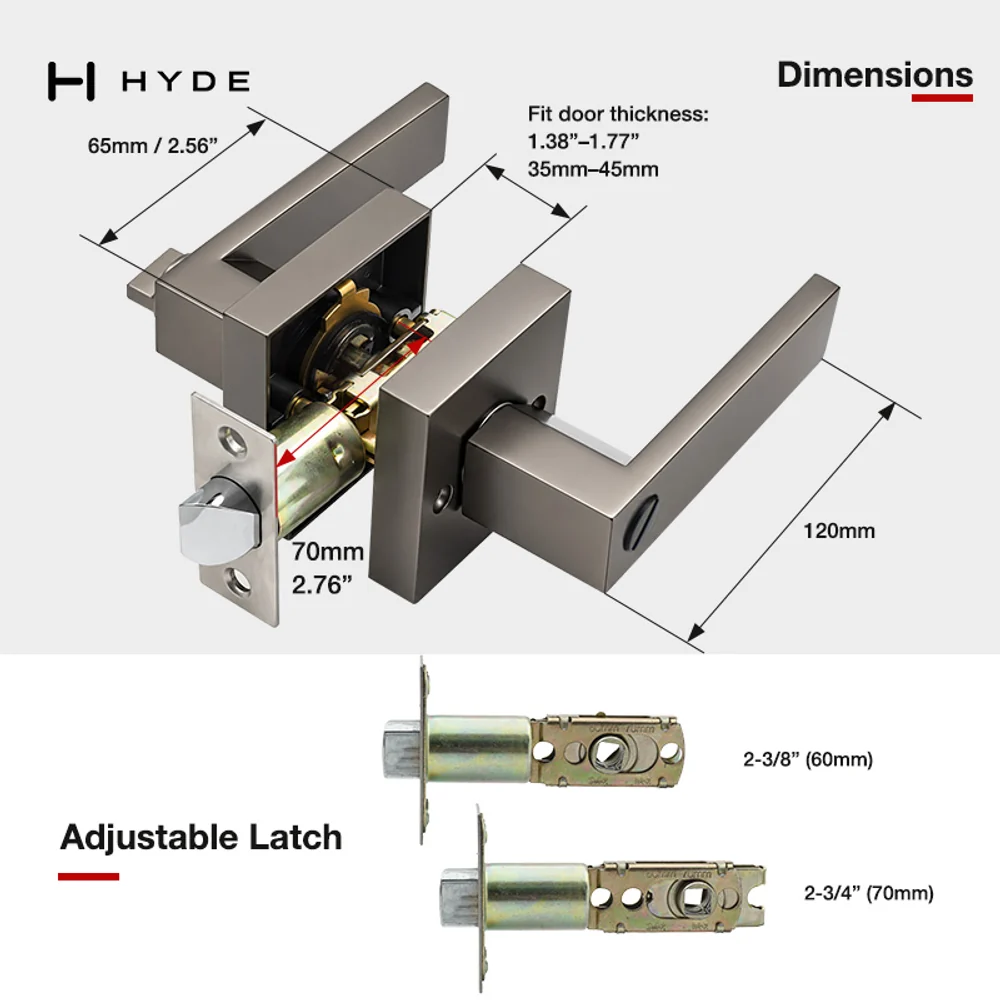

Drawings
Drawings and files published for this model.
LH852 GMBK
Video
28 seconds of the part working.
LH852 GMBK
Common questions
- What is the LH852 GMBK made from?
- Material of the LH852 GMBK: Zinc alloy.
- Which finishes is the LH852 GMBK available in?
- Finishes available for the LH852 GMBK: Gun metal (GM).
- What backset does the LH852 GMBK use?
- Backset of the LH852 GMBK: 60/70mm.
- What door thickness does the LH852 GMBK suit?
- Door thickness for the LH852 GMBK: 35mm to 45mm adjustable.
- What function does the LH852 GMBK provide?
- Function of the LH852 GMBK: Privacy, bathroom, turn button inside.
- How many cycles is the LH852 GMBK tested to?
- Cycle rating of the LH852 GMBK: 200,000 cycles.
LH852 GMBK
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishLH852 GMBK, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
