Lever Handle · 45 models in this range
LH852 BNPS Tubular Lever Lock
A zinc alloy tubular lever lock in black nickel with 60/70mm backset, passage function.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Function
- Passage
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
LH852 BNPS
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Function
- Passage
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Finish
- Black nickel
- Latch
- Adjustable 60–70mm (2-3/8" to 2-3/4")
- Handling
- Fully reversible for left or right-hand doors
- Application
- For Passage doors
Features
- Economical and easy to install, ideal for residential applications
- Key or thumb-turn simultaneously locks/unlocks both levers
- Locking: turn thumb-turn counter-clockwise or key clockwise; reverse to unlock
- Zinc-plated steel latch and chassis for corrosion resistance
- Exposed trim available in stainless steel or brass
LH852 BNPS

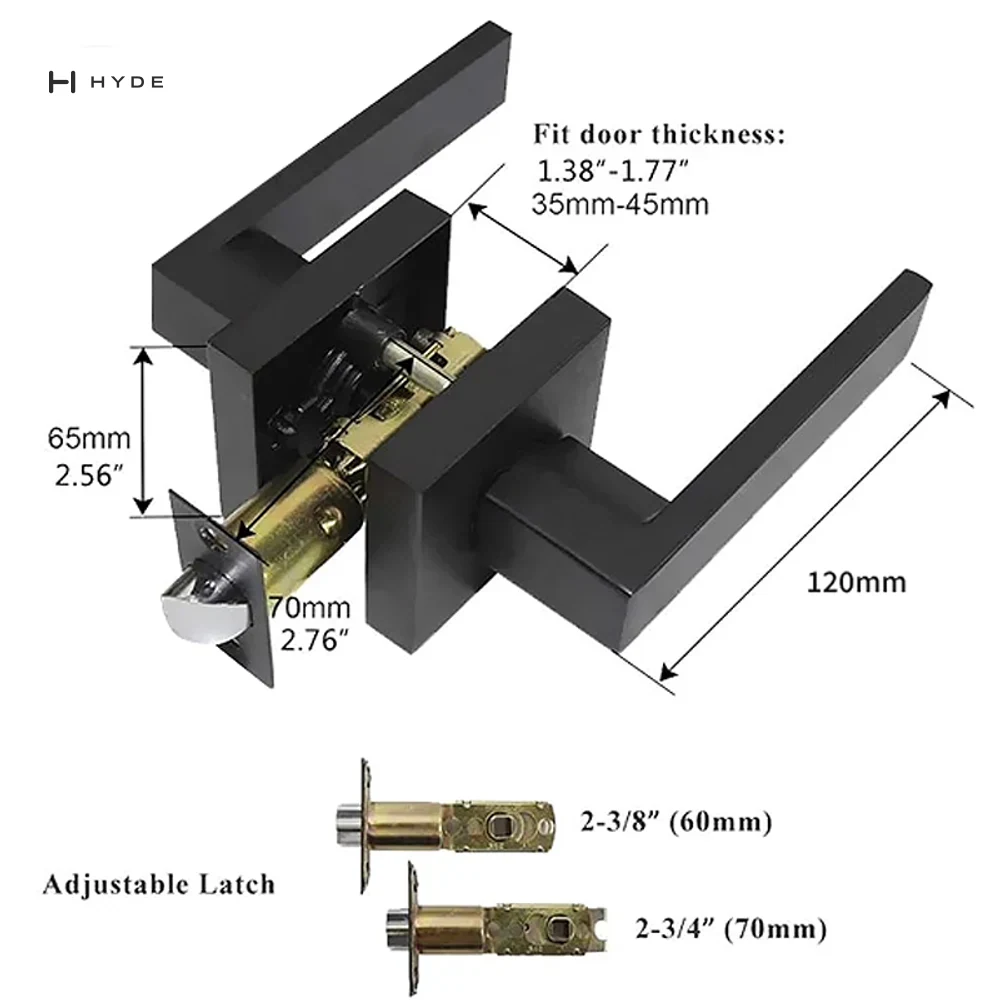

Drawings
Drawings and files published for this model.
LH852 BNPS
Video
33 seconds of the part working.
LH852 BNPS
Common questions
- What is the LH852 BNPS made from?
- Material of the LH852 BNPS: Zinc alloy.
- Which finishes is the LH852 BNPS available in?
- Finishes available for the LH852 BNPS: Black nickel.
- What backset does the LH852 BNPS use?
- Backset of the LH852 BNPS: 60/70mm.
- What door thickness does the LH852 BNPS suit?
- Door thickness for the LH852 BNPS: 35mm to 45mm adjustable.
- What function does the LH852 BNPS provide?
- Function of the LH852 BNPS: Passage.
- How many cycles is the LH852 BNPS tested to?
- Cycle rating of the LH852 BNPS: 200,000 cycles.
LH852 BNPS
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishLH852 BNPS, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
