BH15-80mm Barrel Bolt

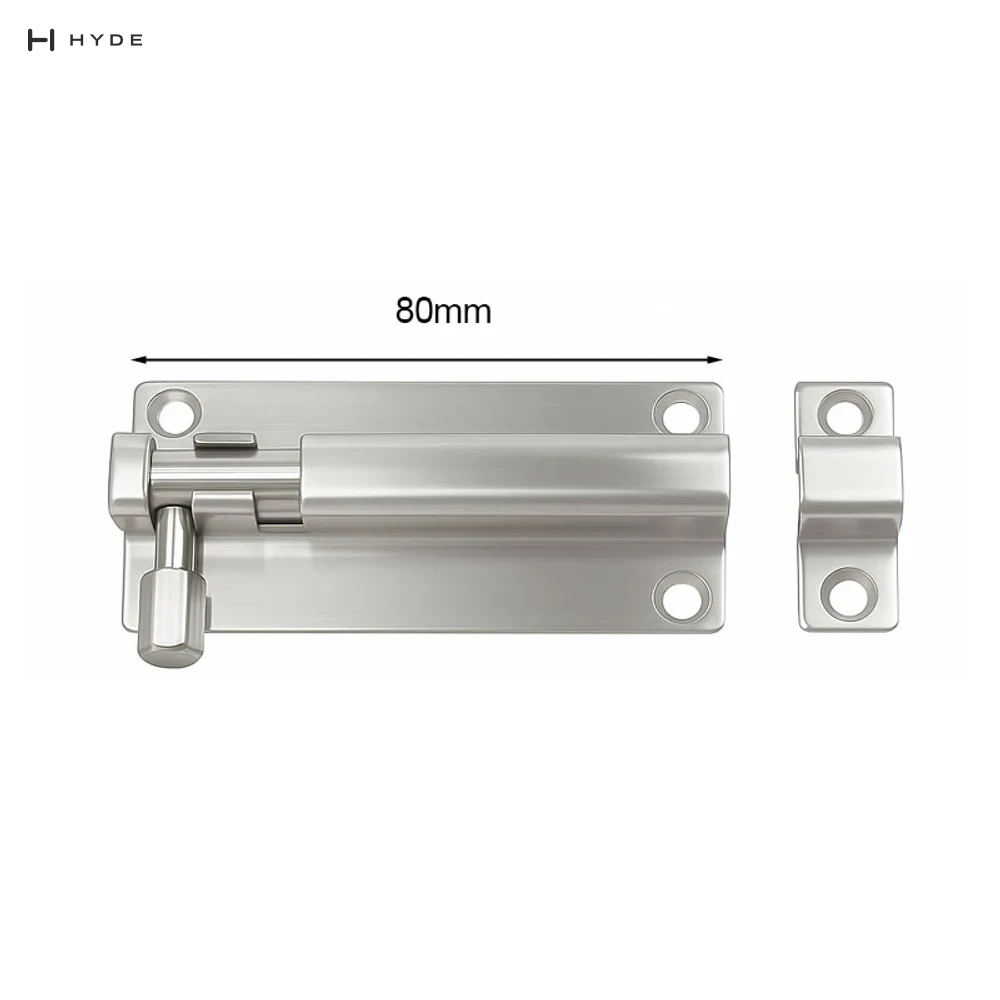

Surface-mounted barrel bolt for doors, 80mm long, with its keeper, in satin or polished stainless steel.
- Size
- Plate 80 × 37mm; bolt 12mm; keeper 38 × 14mm
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
BH15-80mm
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.

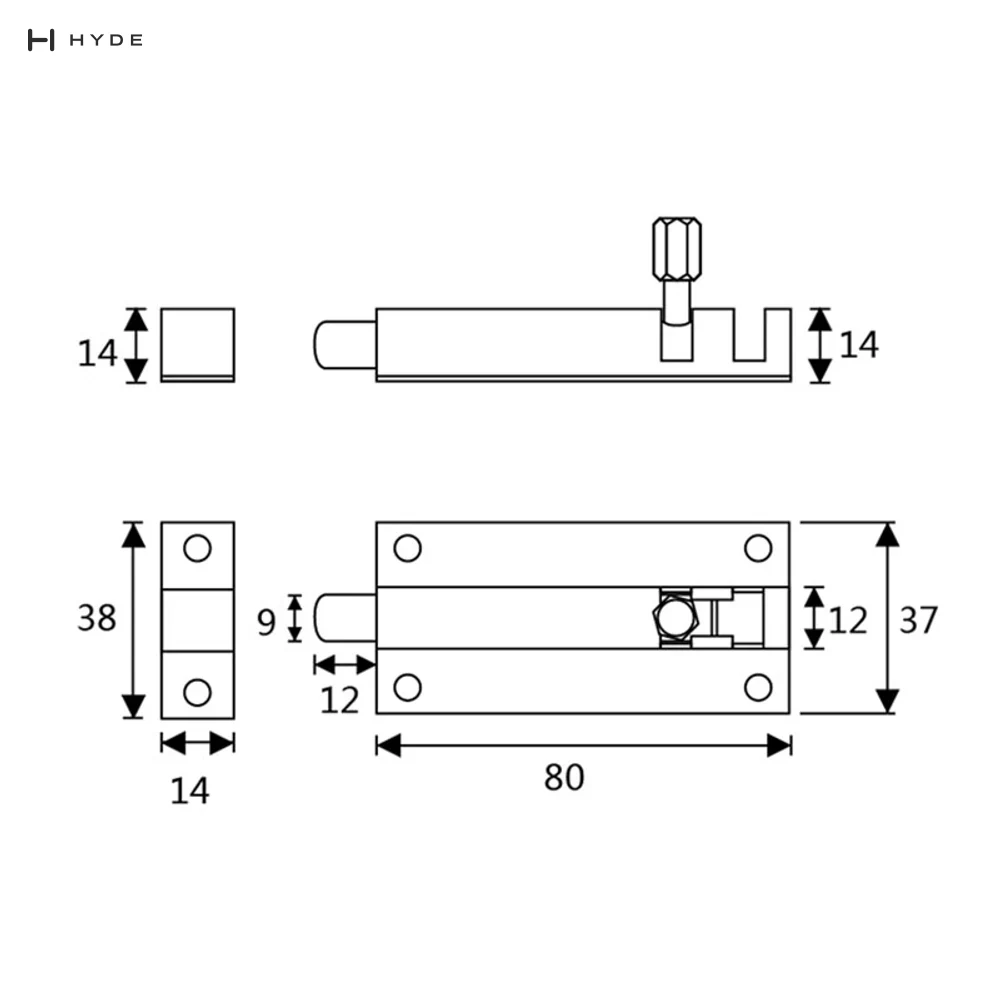

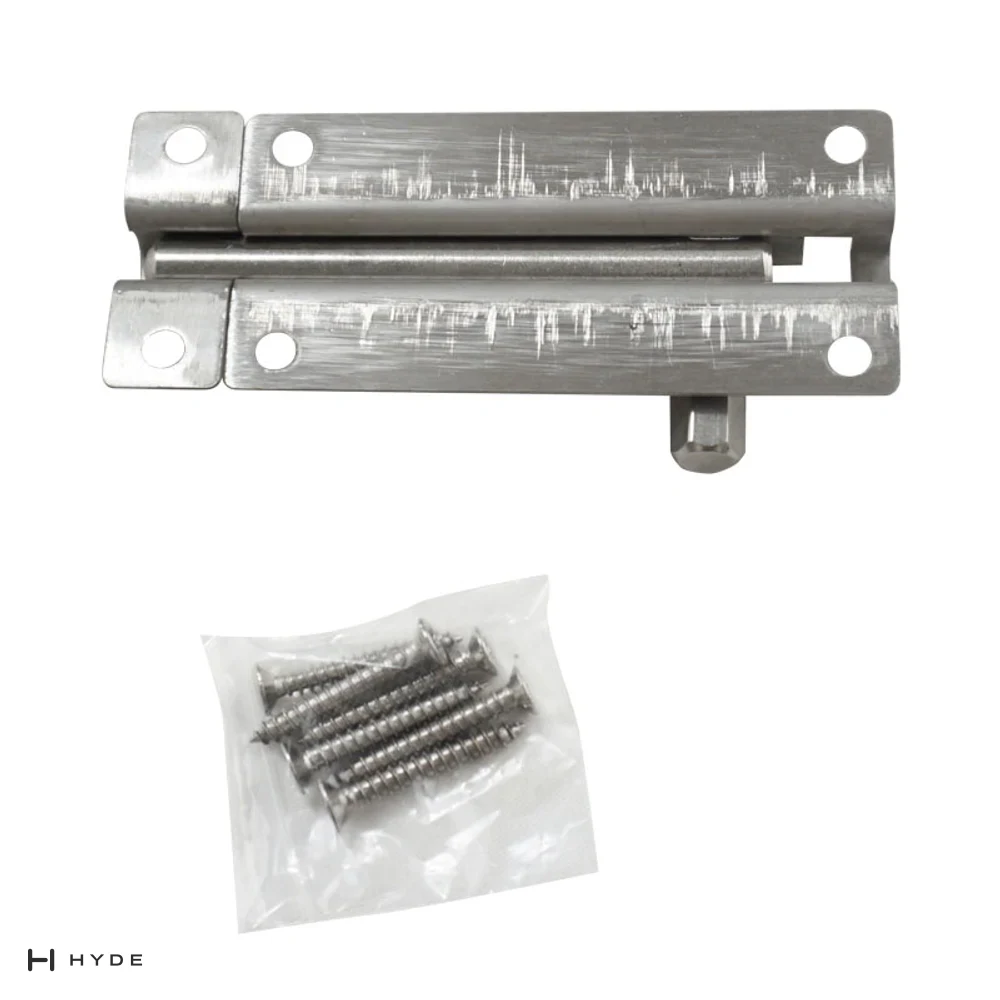

The BH15-80mm is an 80mm surface-mounted barrel bolt for doors, supplied with its keeper and fixing screws, in satin or polished stainless steel. The plate is 80 × 37 mm, the bolt 12 mm and the keeper 38 × 14 mm, from the drawing above.
- Size
- Plate 80 × 37mm; bolt 12mm; keeper 38 × 14mm
- Material
- Stainless Steel
- Suitable door types
- Wooden Door · Metal Door
BH15-80mm
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishBH15-80mm, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
