Latch · 24 models in this range

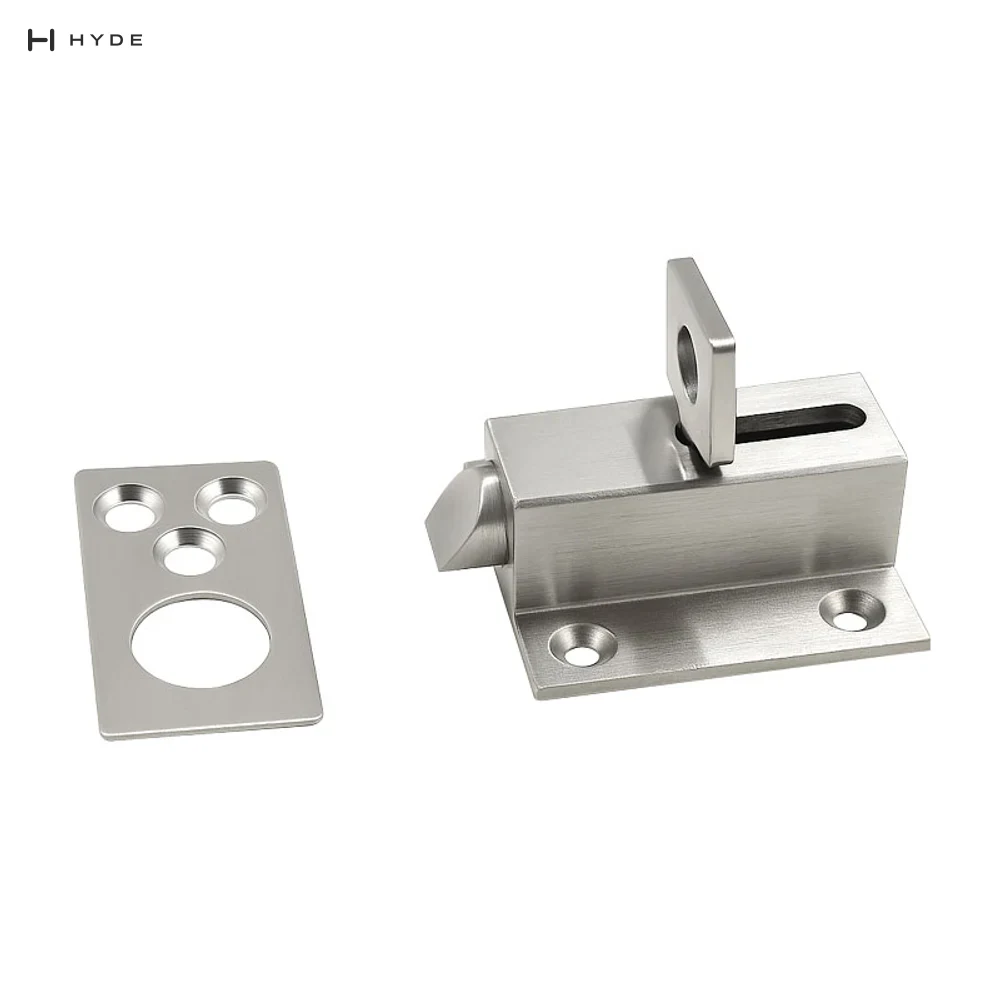

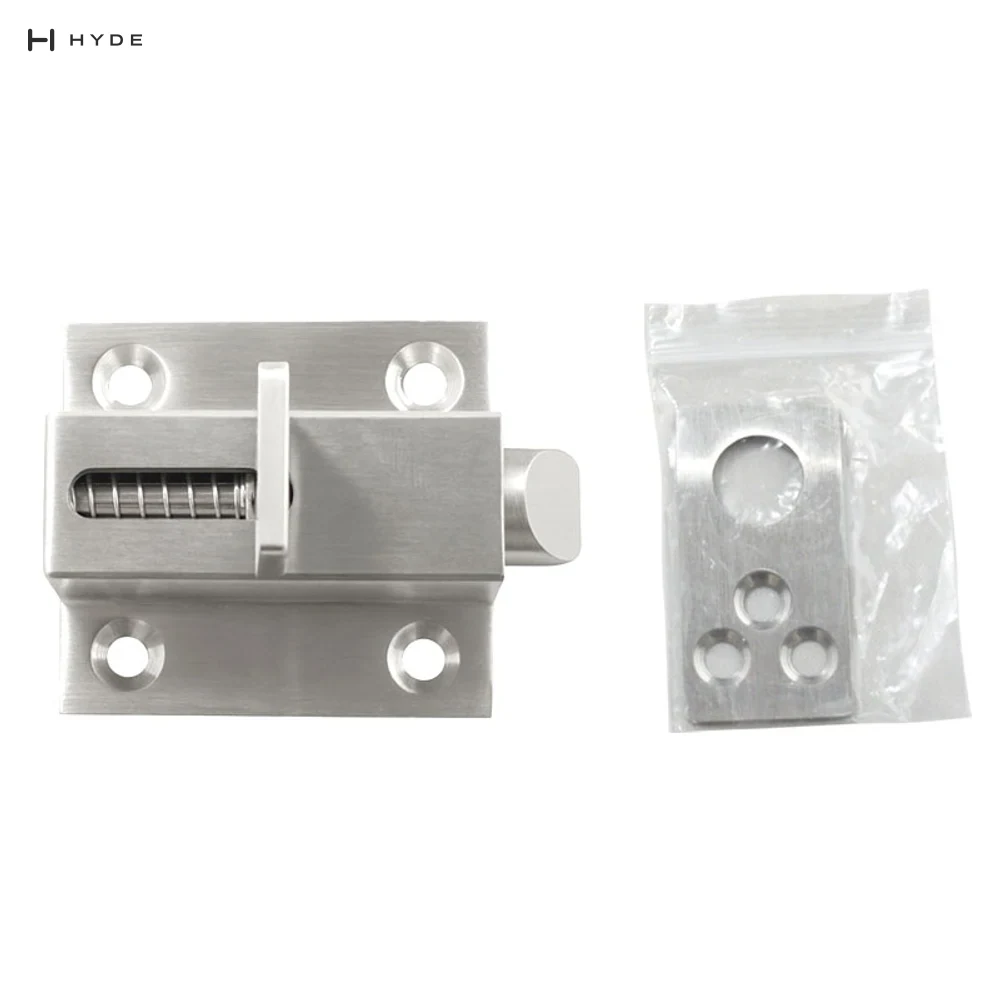

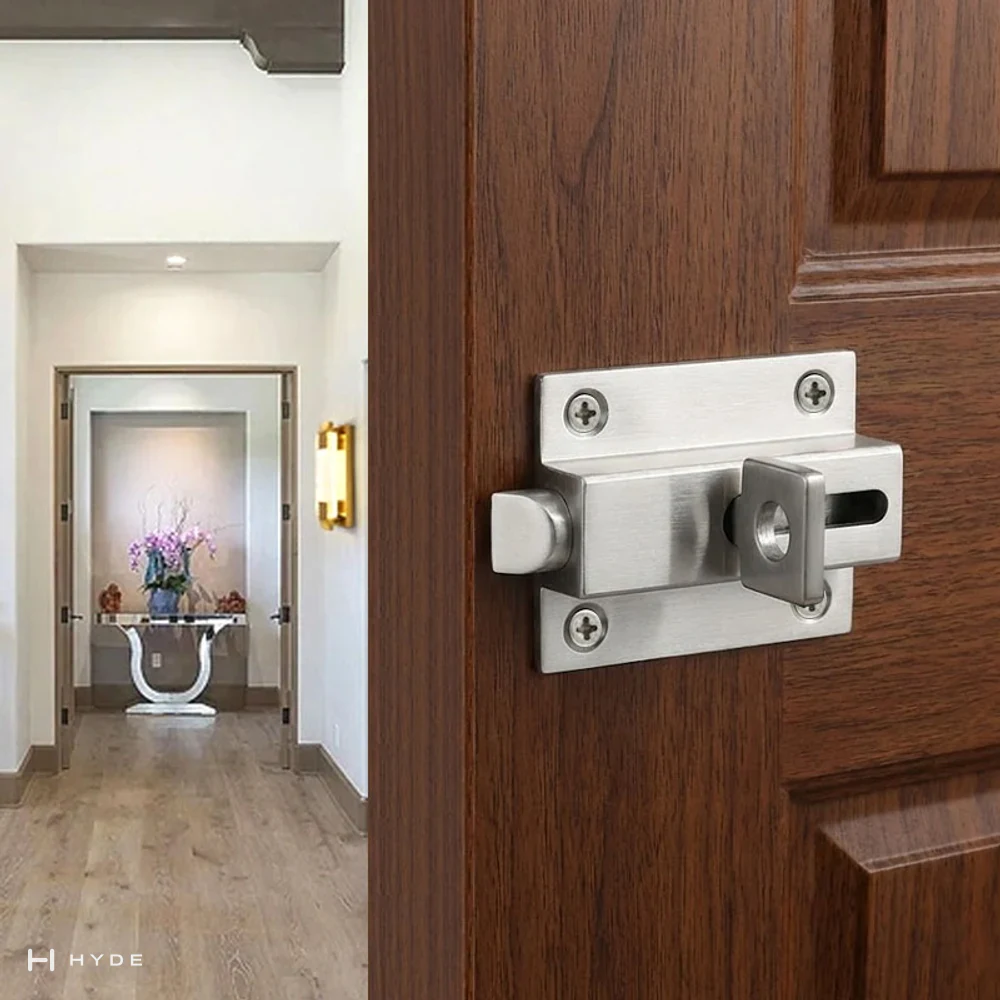

BH17 Spring Latch
Surface-mounted spring latch for doors with a beveled tongue, 44 × 42mm, with its strike plate, in satin or polished stainless steel.
- Material
- Stainless Steel
- Finish
- Satin Stainless Steel (SSS), Polished Stainless Steel (PSS)
- Length
- 44mm (1-3/4")
- Thickness
- 2.5mm (1/8")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
BH17
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Stainless Steel
- Finish
- Satin Stainless Steel (SSS), Polished Stainless Steel (PSS)
- Length
- 44mm (1-3/4")
- Thickness
- 2.5mm (1/8")
- Application
- Door Security
- Size
- 44 × 42 × 2.5mm
BH17

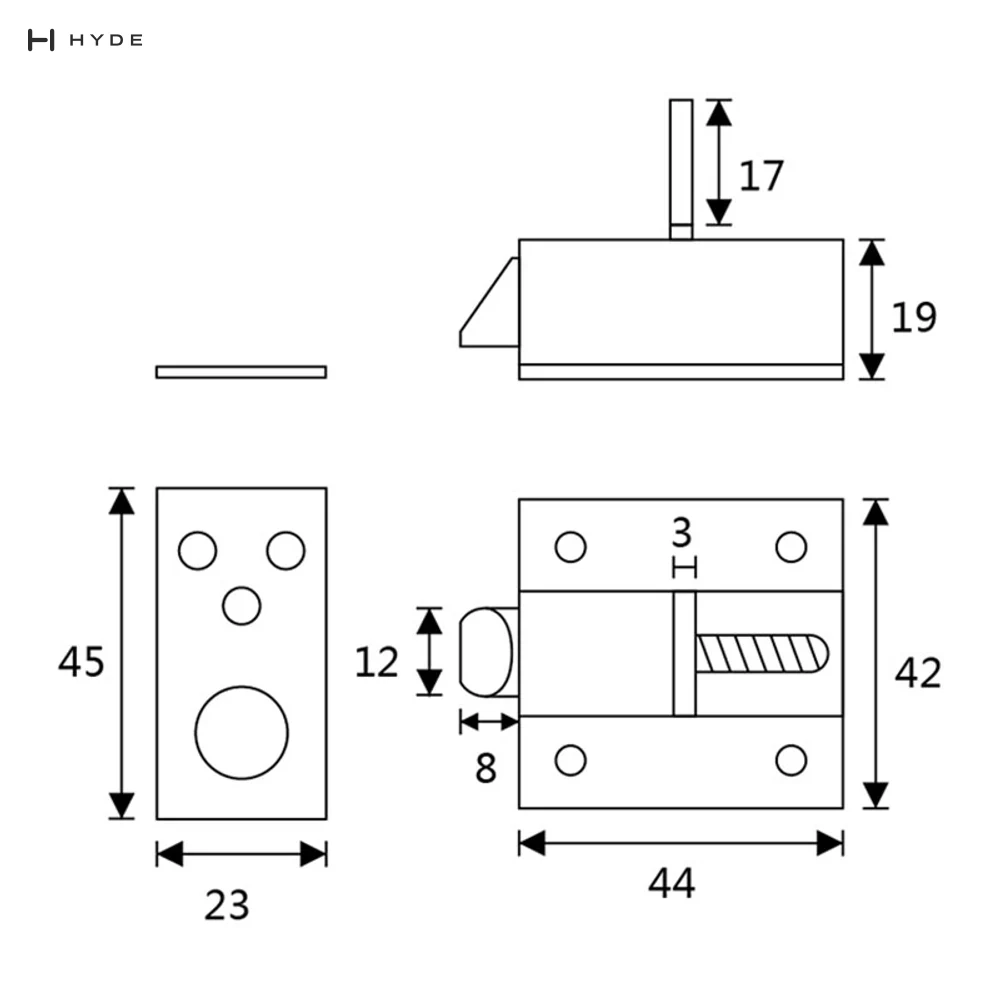

Drawings
Drawings and files published for this model.
BH17
Common questions
- What is the BH17 made from?
- Material of the BH17: Stainless Steel.
- Which finishes is the BH17 available in?
- Finishes available for the BH17: Satin Stainless Steel (SSS), Polished Stainless Steel (PSS).
- Where is the BH17 used?
- Where the BH17 is used: Door Security.
- What size is the BH17?
- Size of the BH17: 44 × 42 × 2.5mm.
- What is the ANSI/BHMA finish code for the BH17?
- Over the Stainless Steel base of the BH17, its finishes correspond to 630 (US32D, Stainless Steel Metal, Satin), 629 (US32, Stainless Steel Metal, Bright) under ANSI/BHMA A156.18.
BH17
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishBH17, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
