Grip Handle Set in matt black, entrance function.
Watch it work0:44Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.

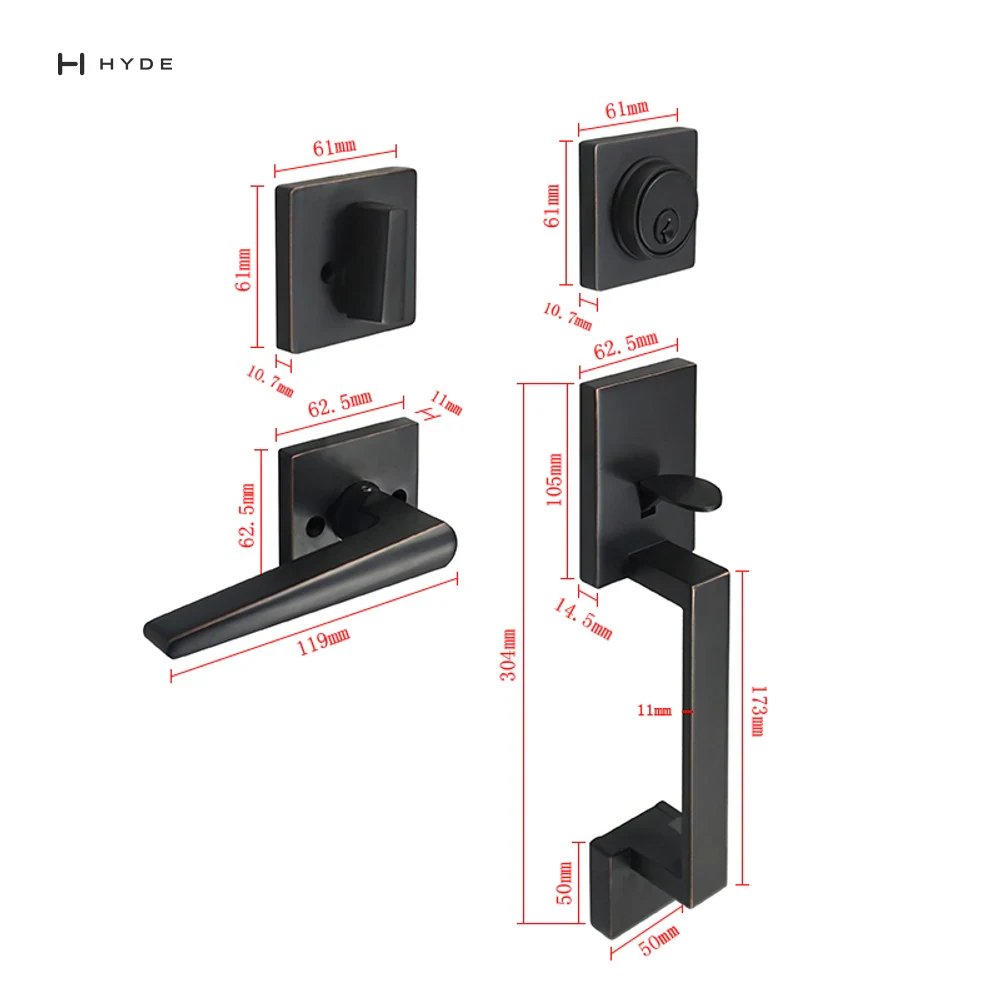

Technical specifications
- Material
- Aluminum
- Backset
- 60mm / 70mm adjustable, latch and deadbolt both
- Door thickness
- 35mm to 45mm adjustable
- Deadbolt throw
- 25mm, with hardened steel insert to resist sawing
- Latch extension
- 13mm
- Cross bore
- 51mm — replaces most existing locksets

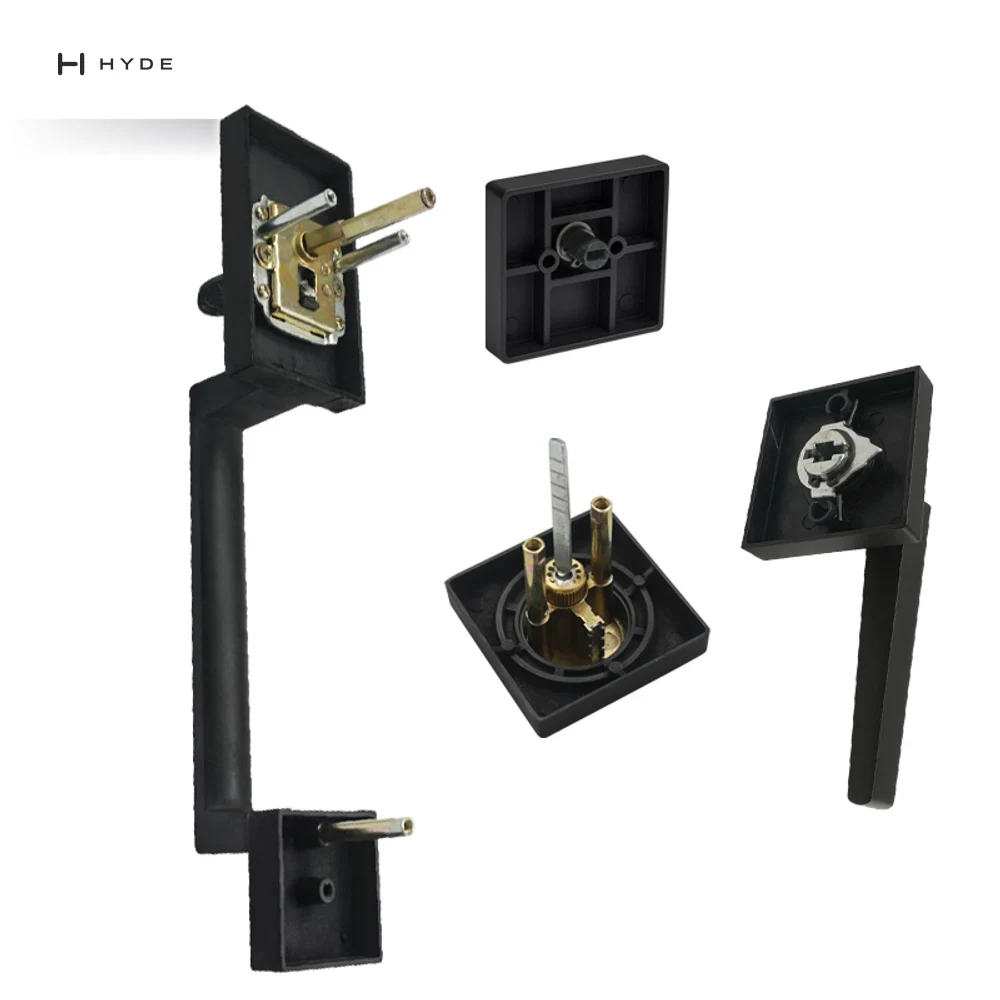

- Chassis
- Solid steel internal construction, corrosion protected
- Trim
- Forged solid brass or zinc die-casting electro-plated
- Handing
- Non-handed, left or right hand
- Feature
- No exposed exterior fixings; free-turning cylinder ring resists wrenching
- Function
- Entrance — keyed outside
- Finish
- Matt Black
Bolt detail
Backset 60mm to the cylinder centre. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- What is the 70900 MBET made from?
- The 70900 MBET is made from Aluminum.
- Which finishes is the 70900 MBET available in?
- The 70900 MBET is available in Matt Black.
- What backset does the 70900 MBET use?
- The 70900 MBET has a backset of 60mm / 70mm adjustable, latch and deadbolt both.
- What door thickness does the 70900 MBET suit?
- The 70900 MBET suits a door thickness of 35mm to 45mm adjustable.
- What function does the 70900 MBET provide?
- The 70900 MBET provides Entrance — keyed outside.
- Is the 70900 MBET handed?
- Handing for the 70900 MBET: Non-handed, left or right hand.
