Grip Handle Set · 14 models in this range

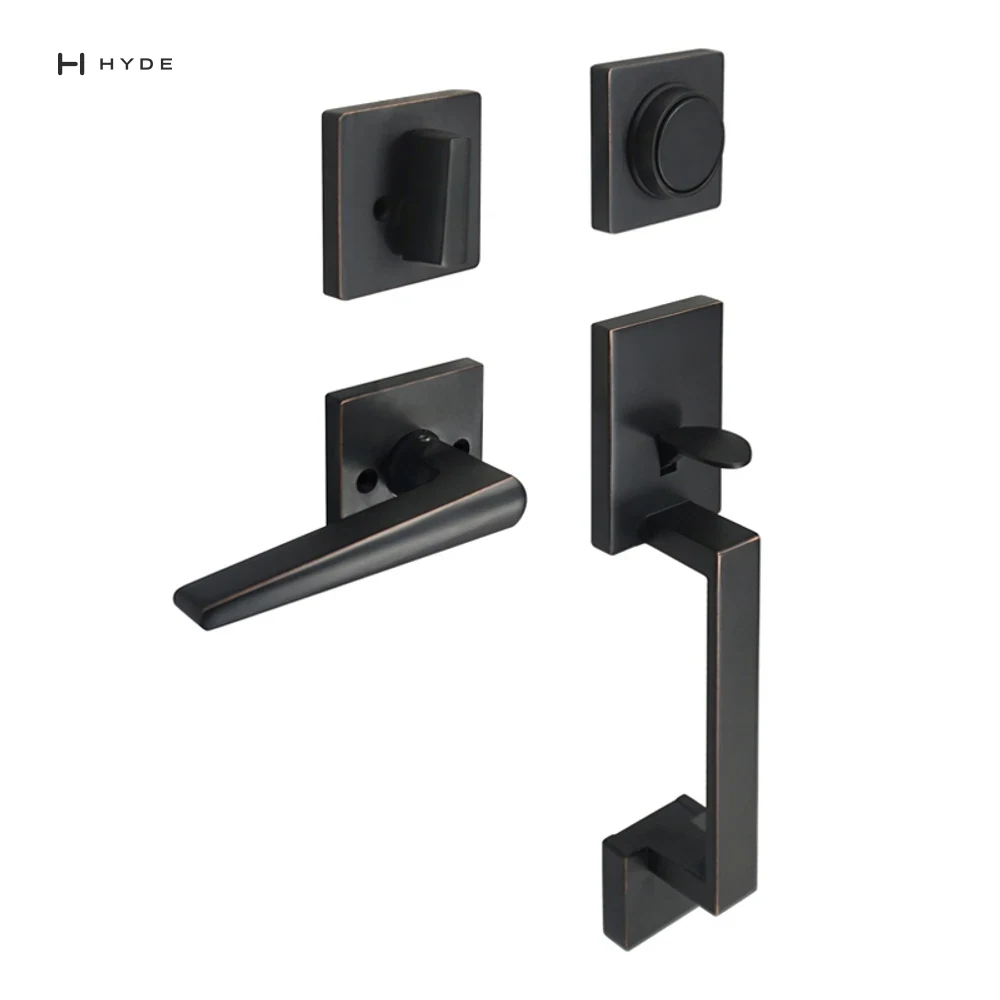

70900 MBBK Grip Handle Set
Grip Handle Set in matt black, privacy function.
- Material
- Aluminum
- Backset
- 60mm / 70mm adjustable, latch and deadbolt both (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Deadbolt throw
- 25mm, with hardened steel insert to resist sawing (1")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
70900 MBBK
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Aluminum
- Backset
- 60mm / 70mm adjustable, latch and deadbolt both (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Deadbolt throw
- 25mm, with hardened steel insert to resist sawing (1")
- Latch extension
- 13mm (1/2")
- Cross bore
- 51mm, replaces most existing locksets (2")
- Chassis
- Solid steel internal construction, corrosion protected
- Trim
- Forged solid brass or zinc die-casting electro-plated
- Handing
- Non-handed, left or right hand
- Feature
- No exposed exterior fixings; free-turning cylinder ring resists wrenching
- Function
- Privacy, bathroom, turn button inside
- Finish
- Matt Black
70900 MBBK
Drawings
Drawings and files published for this model.
Bolt detail
Backset 60mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
70900 MBBK
Common questions
- What is the 70900 MBBK made from?
- The 70900 MBBK is made from Aluminum.
- Which finishes is the 70900 MBBK available in?
- The 70900 MBBK is available in Matt Black.
- What backset does the 70900 MBBK use?
- The 70900 MBBK has a backset of 60mm / 70mm adjustable, latch and deadbolt both.
- What door thickness does the 70900 MBBK suit?
- The 70900 MBBK suits a door thickness of 35mm to 45mm adjustable.
- What function does the 70900 MBBK provide?
- The 70900 MBBK provides Privacy, bathroom, turn button inside.
- Is the 70900 MBBK handed?
- Handing for the 70900 MBBK: Non-handed, left or right hand.
70900 MBBK
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish70900 MBBK, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
