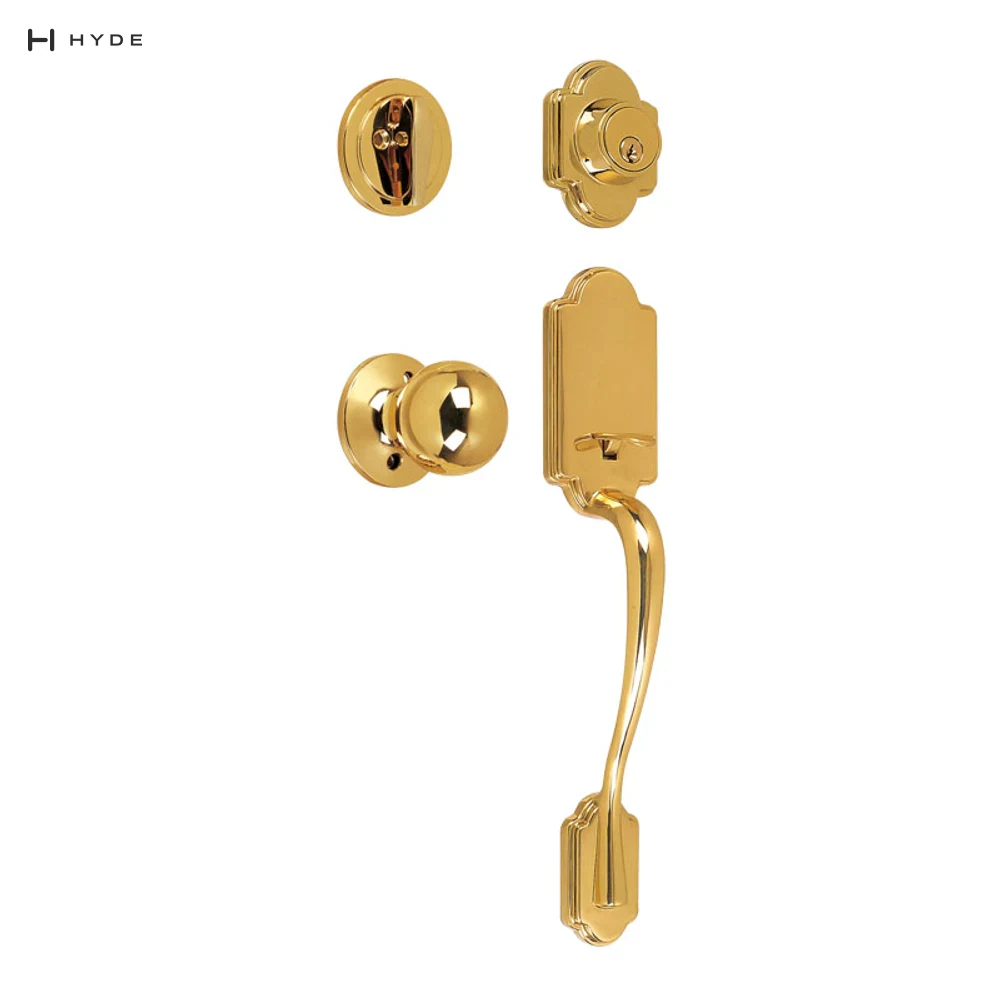

70720 PB Grip Handle Set

Material

Zinc alloy

Backset

60mm / 70mm adjustable, latch and deadbolt both (2-3/8" / 2-3/4")

Door thickness

35mm to 45mm adjustable (1-3/8" / 1-3/4")

Deadbolt throw

25mm, with hardened steel insert to resist sawing (1")

Latch extension

13mm (1/2")

Cross bore

51mm, replaces most existing locksets (2")

Chassis

Solid steel internal construction, corrosion protected

Trim

Forged solid brass or zinc die-casting electro-plated

Handing

Non-handed, left or right hand

Feature

No exposed exterior fixings; free-turning cylinder ring resists wrenching

Finish

Polished brass (US3)

Download the spec sheet (PDF)

Bolt detail

Backset 60mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.

Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.

What is the 70720 PB made from?

The 70720 PB is made from Zinc alloy.

Which finishes is the 70720 PB available in?

The 70720 PB is available in Polished brass (US3).

What backset does the 70720 PB use?

The 70720 PB has a backset of 60mm / 70mm adjustable, latch and deadbolt both.

What door thickness does the 70720 PB suit?

The 70720 PB suits a door thickness of 35mm to 45mm adjustable.

Is the 70720 PB handed?

Handing for the 70720 PB: Non-handed, left or right hand.
