Grip Handle Set

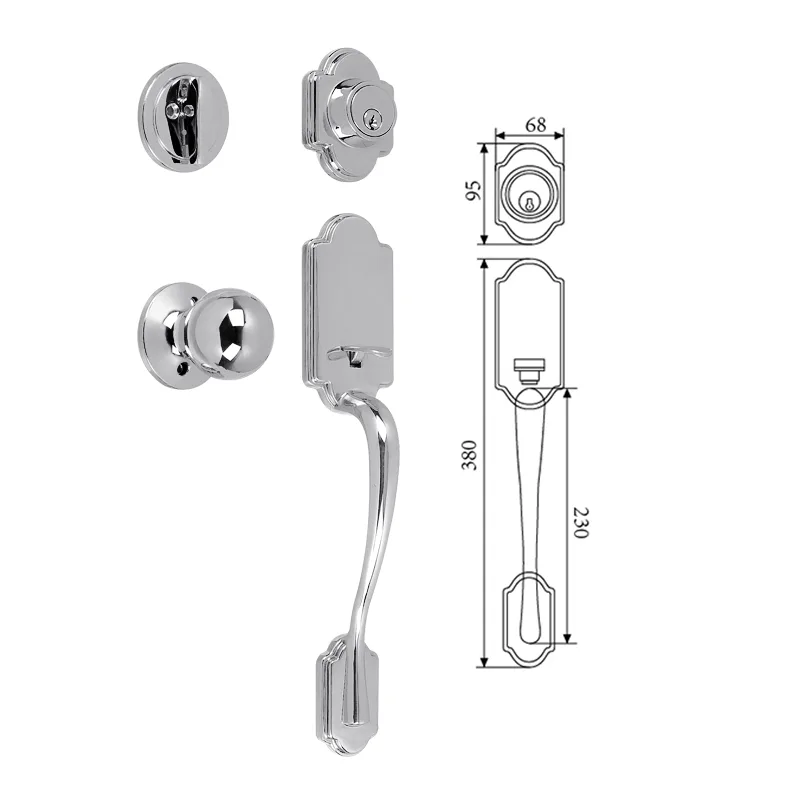

70720 SM Grip Handle Set
Model
70720 SM
A zinc alloy grip handle set with 60mm / 70mm adjustable, latch and deadbolt both backset.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Zinc alloy
- Backset
- 60mm / 70mm adjustable, latch and deadbolt both (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Deadbolt throw
- 25mm, with hardened steel insert to resist sawing (1")
- Latch extension
- 13mm (1/2")
- Cross bore
- 51mm, replaces most existing locksets (2")
- Chassis
- Solid steel internal construction, corrosion protected
- Trim
- Forged solid brass or zinc die-casting electro-plated
- Handing
- Non-handed, left or right hand
- Feature
- No exposed exterior fixings; free-turning cylinder ring resists wrenching
Bolt detail
Backset 60mm to the cylinder center. Latch throw 13mm. Deadbolt throw 25mm. Case outline is not published and is therefore not drawn.
Drawn 1:1 from the published specification · Case outline is not published; only the dimensions stated below are drawn.
Common questions
- What is the 70720 SM made from?
- The 70720 SM is made from Zinc alloy.
- What backset does the 70720 SM use?
- The 70720 SM has a backset of 60mm / 70mm adjustable, latch and deadbolt both.
- What door thickness does the 70720 SM suit?
- The 70720 SM suits a door thickness of 35mm to 45mm adjustable.
- Is the 70720 SM handed?
- Handing for the 70720 SM: Non-handed, left or right hand.
