HYDE Argentina AR-4 · 48 models in this range

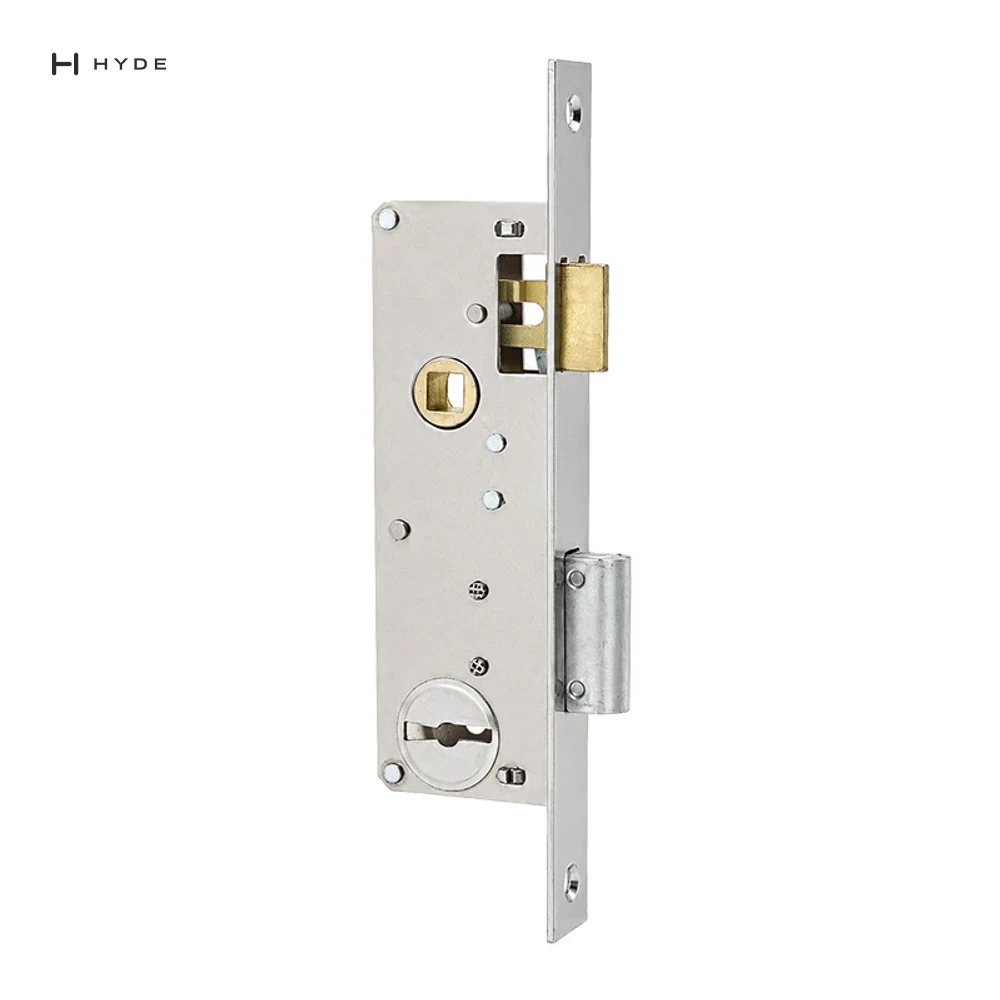

AR4-140 Aluminum-Door Mortise Lock Body

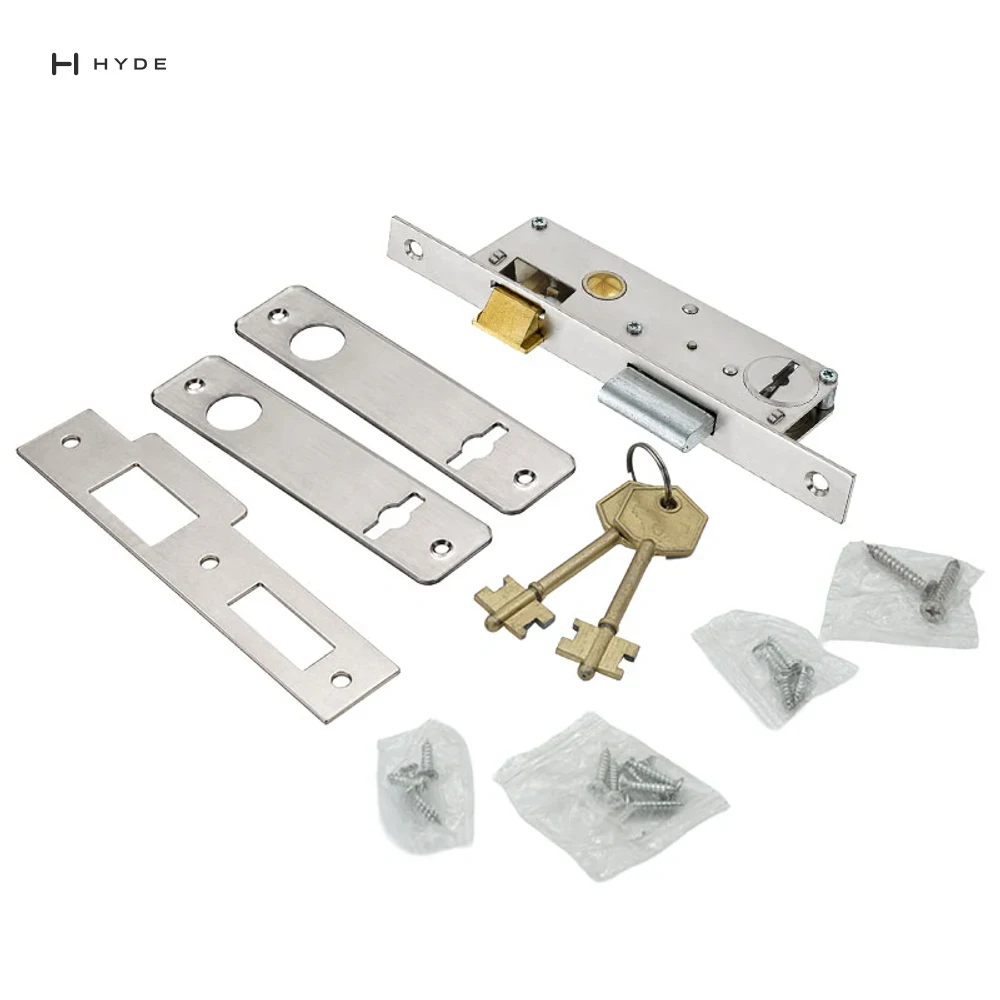

Mortise lock body for aluminum door profiles: 25mm backset, 72mm center distance and a 183.5 × 20mm faceplate, supplied with two keys.
- Factory reference
- 7225
- Center distance
- 72mm (2-13/16")
- Backset
- 25mm (1")
- Faceplate
- 183.5 × 20mm (7-1/4" × 13/16")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
AR4-140
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Factory reference
- 7225
- Center distance
- 72mm (2-13/16")
- Backset
- 25mm (1")
- Faceplate
- 183.5 × 20mm (7-1/4" × 13/16")
- Case size
- 125.7 × 41.7mm (4-15/16" × 1-5/8")
- Application

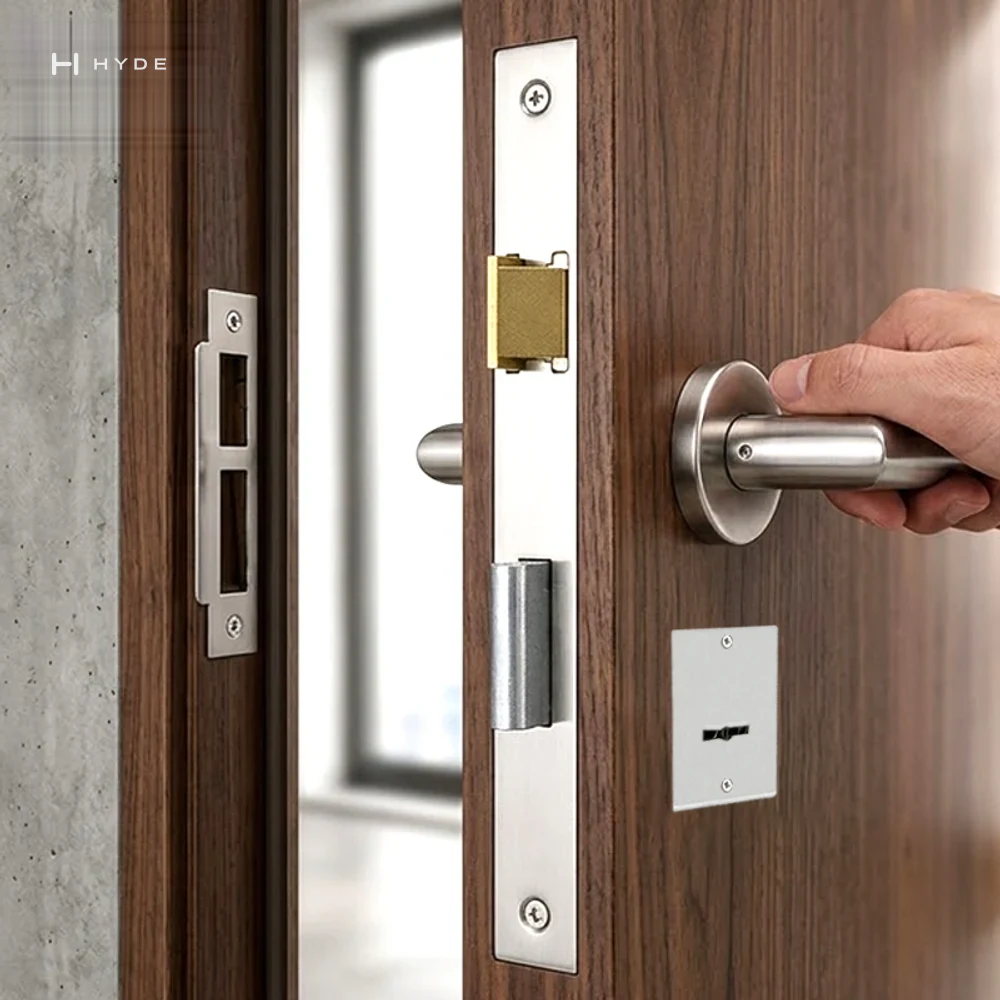

- Aluminum narrow-stile doors
- Latch options
- Copper-plated zinc alloy or brass
- Key options
- Zinc alloy or brass; two keys
- Material
- Nickel-plated iron lock case
- Available finishes
- Nickel-plated
AR4-140

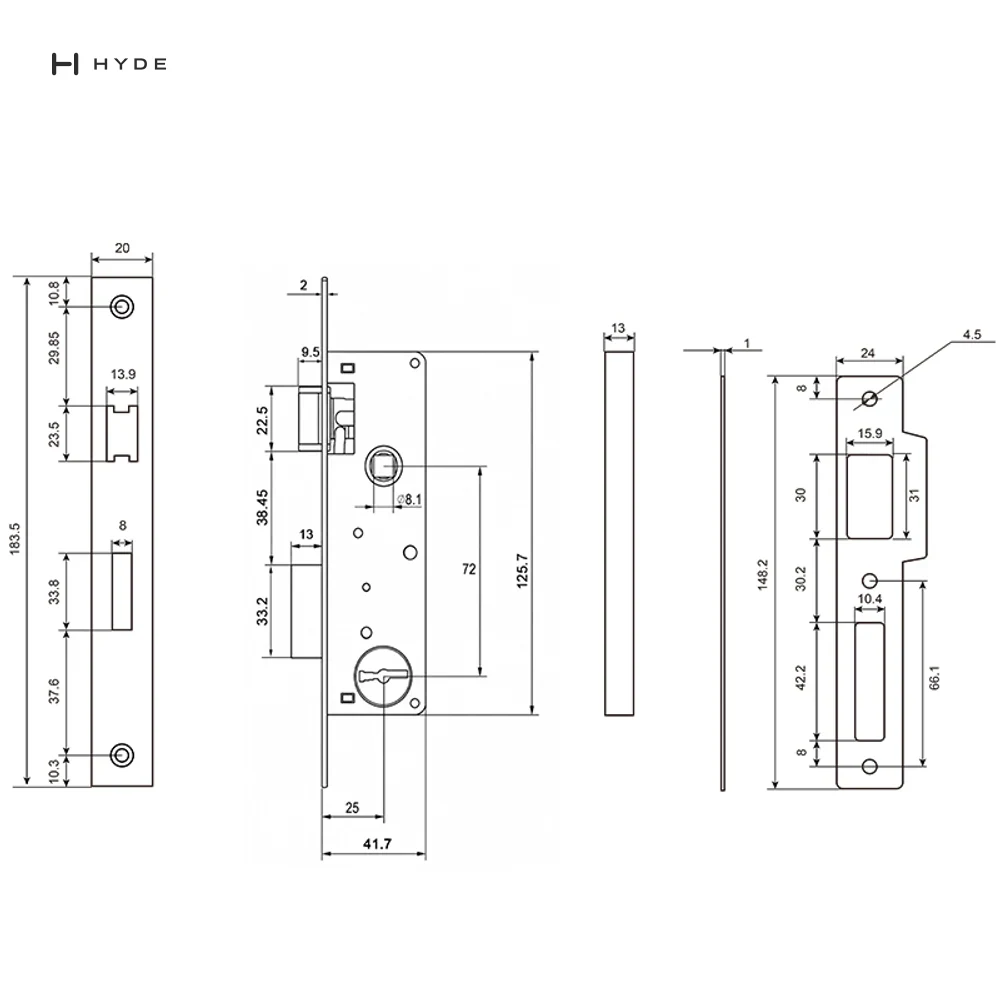

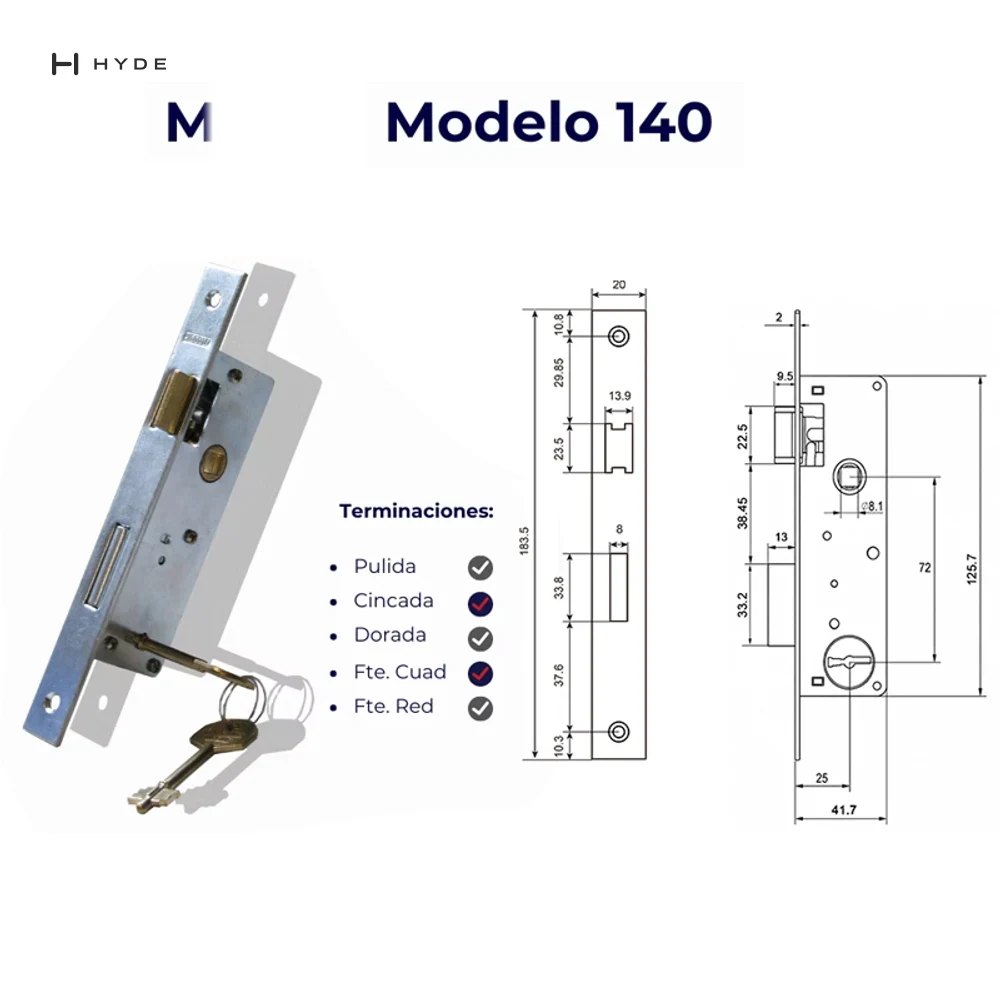

Drawings
Drawings and files published for this model.
AR4-140
Video
20 seconds of the part working.
AR4-140
Common questions
- What backset does the AR4-140 use?
- The AR4-140 has a backset of 25mm.
- What is the center distance on the AR4-140?
- The center distance on the AR4-140 is 72mm.
- Where is the AR4-140 used?
- The AR4-140 is used on Aluminum narrow-stile doors.
AR4-140
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishAR4-140, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
