HYDE Argentina AR-4 · 48 models in this range

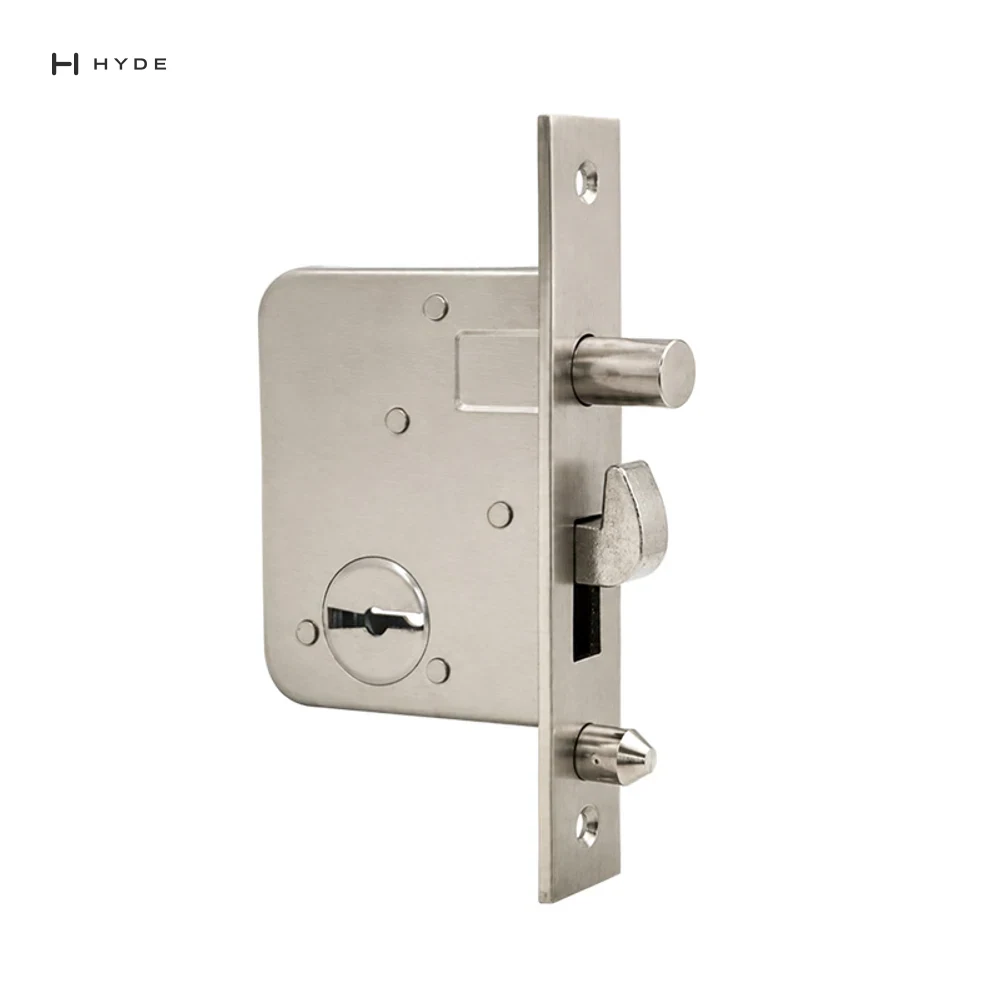

AR4-1121 Hook-Bolt Deadlock

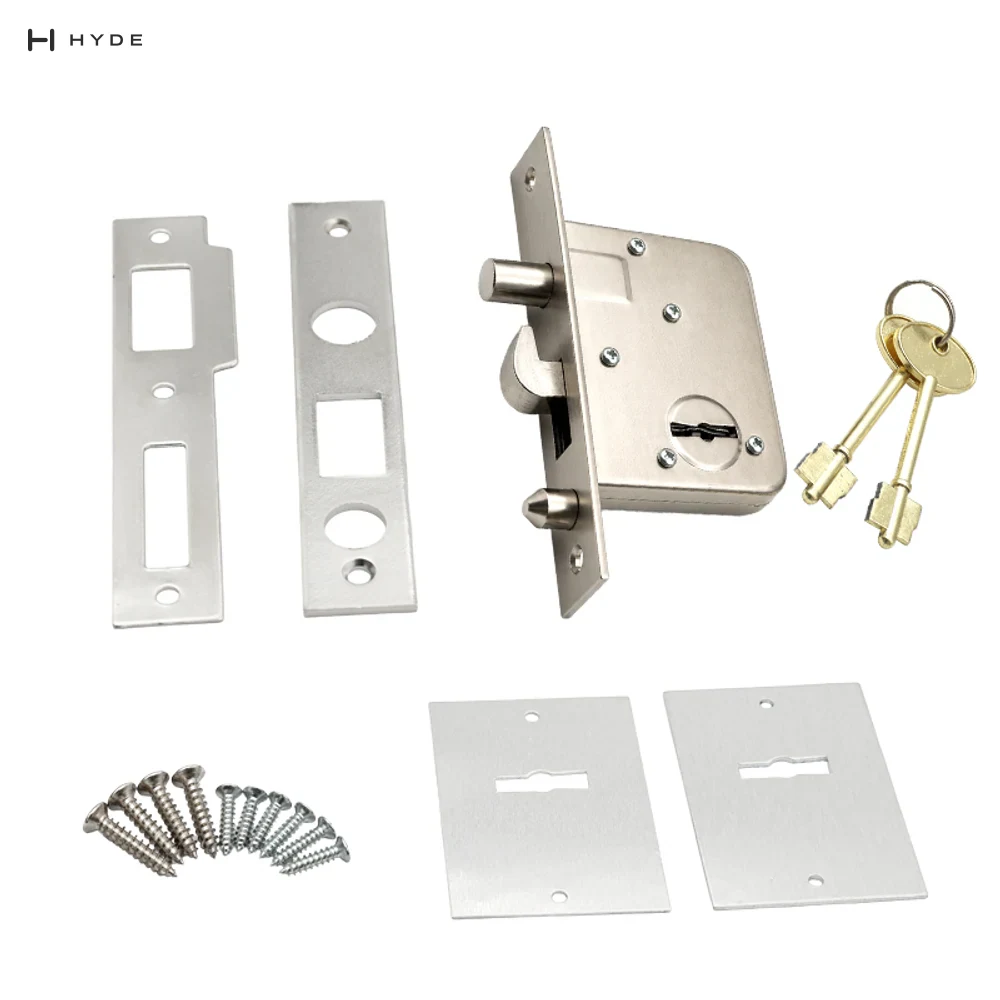

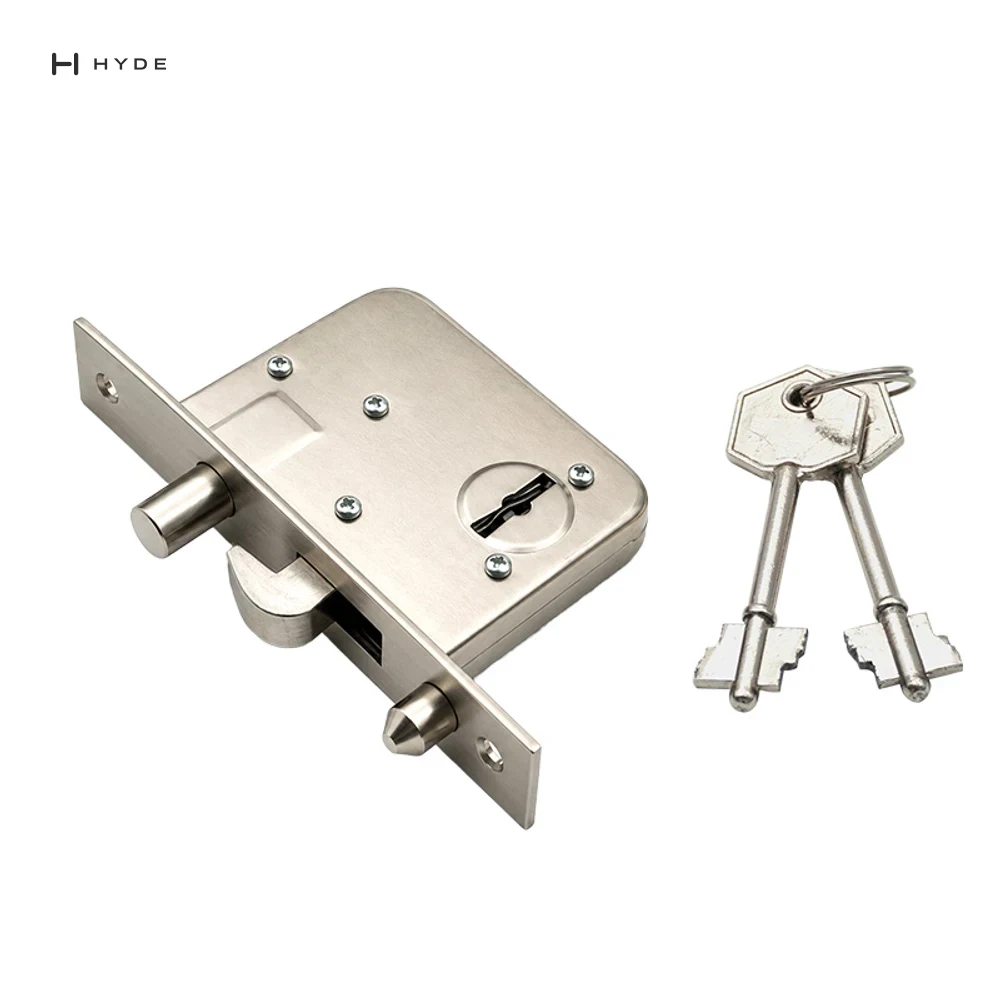

Key-operated hook-bolt deadlock with a 40mm backset and a 140 × 25mm faceplate, supplied with two keys.
- Factory reference
- 40 hook-bolt lock body
- Backset
- 40mm (1-9/16")
- Faceplate
- 140 × 25mm (5-1/2" × 1")
- Case size
- 82.4 × 66.7mm (3-1/4" × 2-5/8")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
AR4-1121
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Factory reference
- 40 hook-bolt lock body
- Backset
- 40mm (1-9/16")
- Faceplate
- 140 × 25mm (5-1/2" × 1")
- Case size
- 82.4 × 66.7mm (3-1/4" × 2-5/8")
- Hook bolt
- Nickel-plated iron
- Key options
- Zinc alloy or brass; two keys
- Material
- Nickel-plated iron lock case

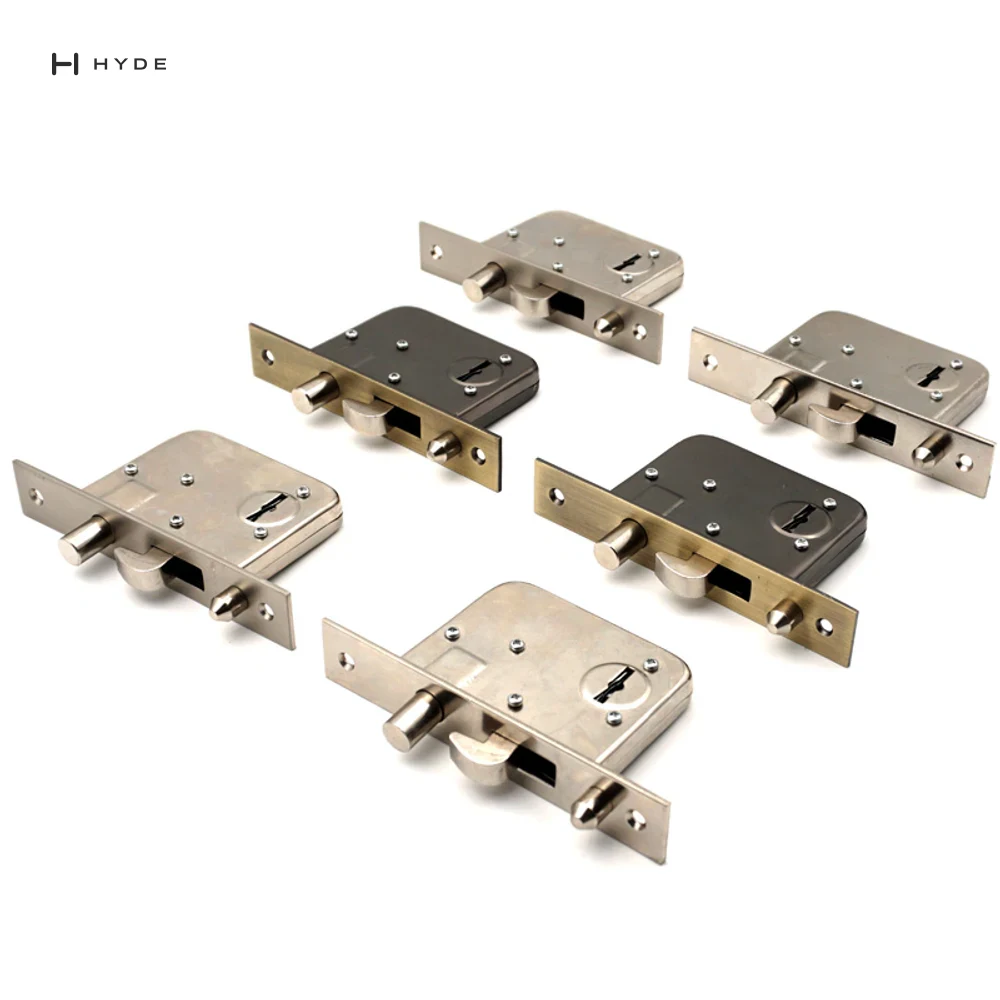

- Available finishes
- Nickel-plated
AR4-1121

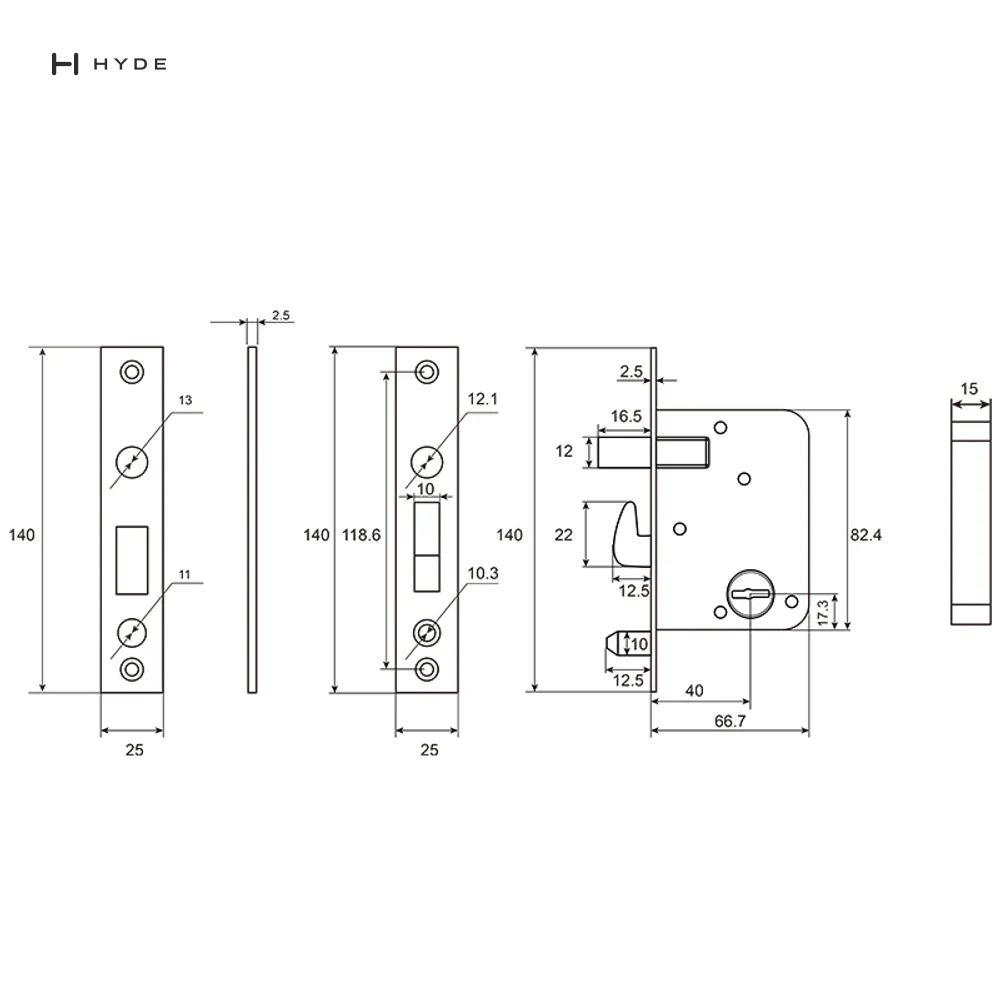

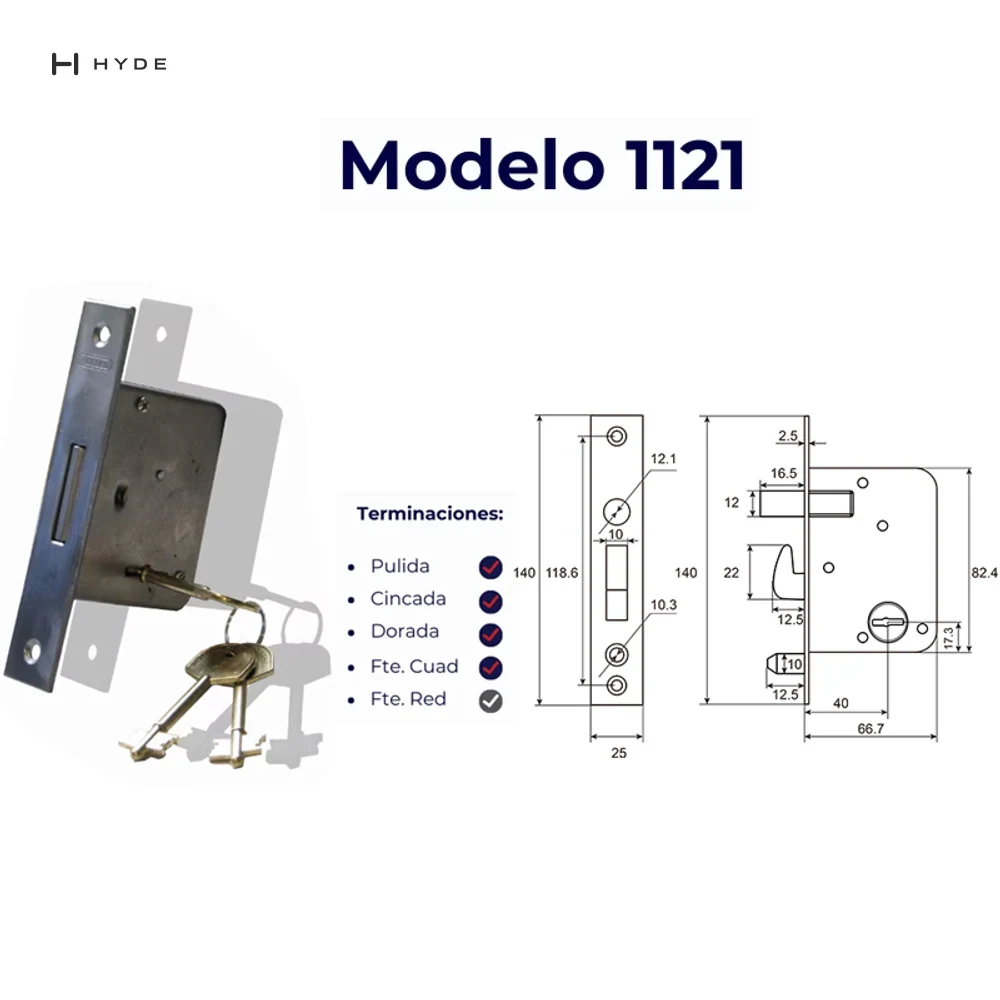

Drawings
Drawings and files published for this model.
AR4-1121
Video
35 seconds of the part working.
AR4-1121
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishAR4-1121, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
