Lever Handle · 45 models in this range

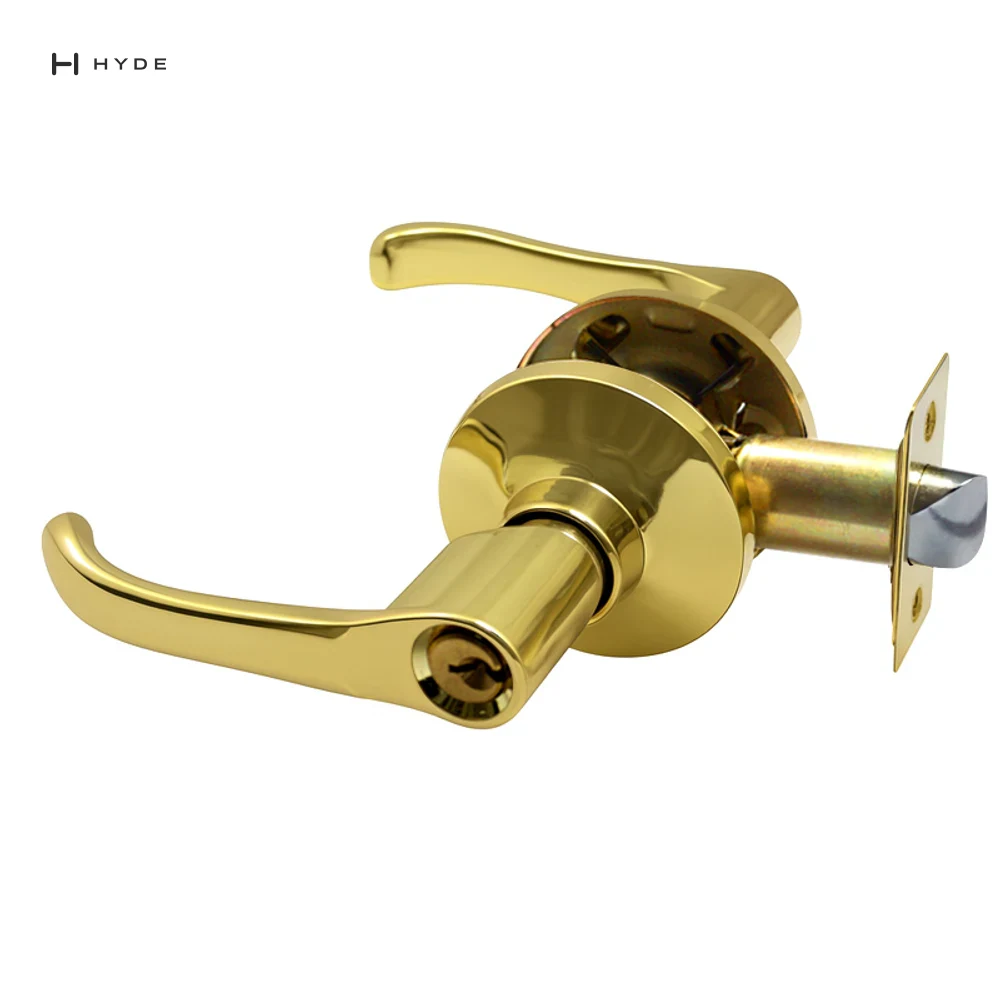

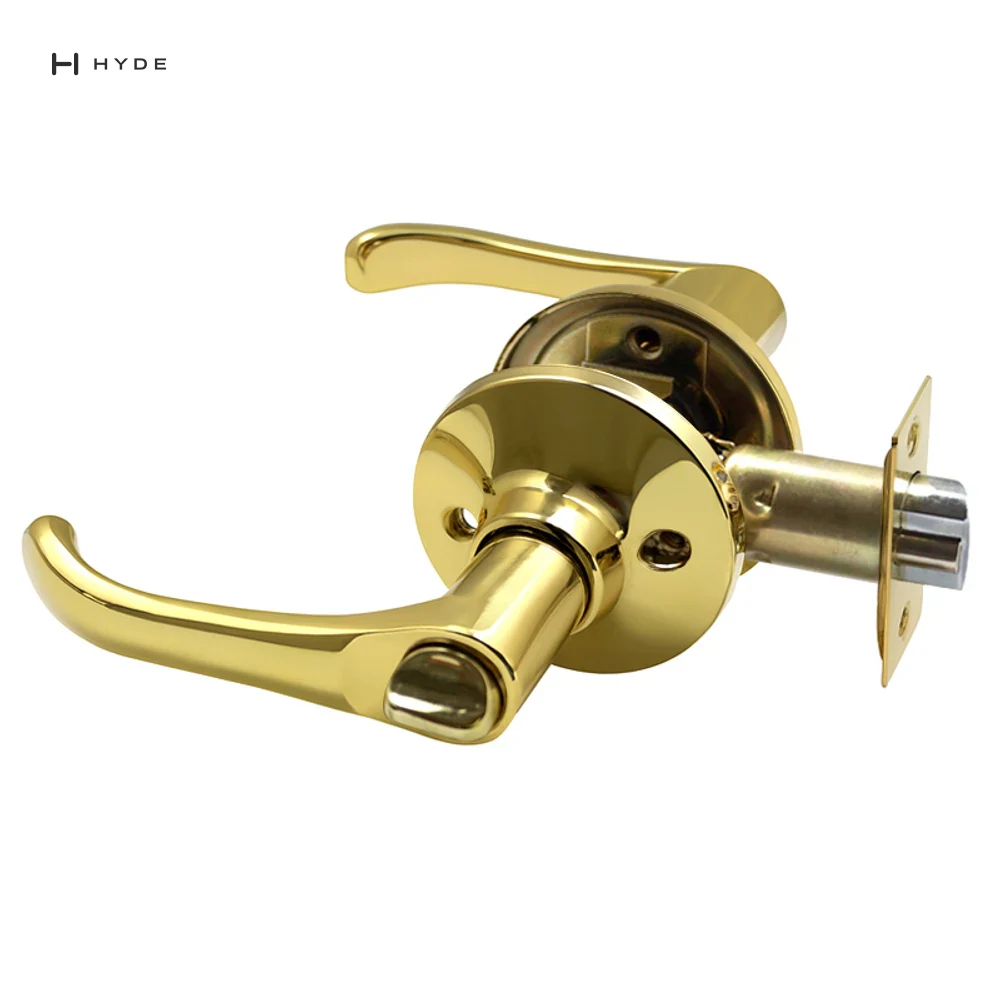

816 PBET Tubular Lever Lock
A zinc alloy tubular lever lock in polished brass (US3) with 60/70mm backset, entrance function.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
816 PBET
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Entrance, keyed outside
- Keying
- Can be keyed alike with deadbolts, or master keyed
- Finish
- Polished brass (US3)
Features
- Economical and easy to install, ideal for residential use
- Lock/unlock via key or thumb-turn
- Synchronized locking for both levers
- Zinc-plated steel chassis and latch for corrosion resistance
- Exposed trim available in stainless steel or brass
816 PBET

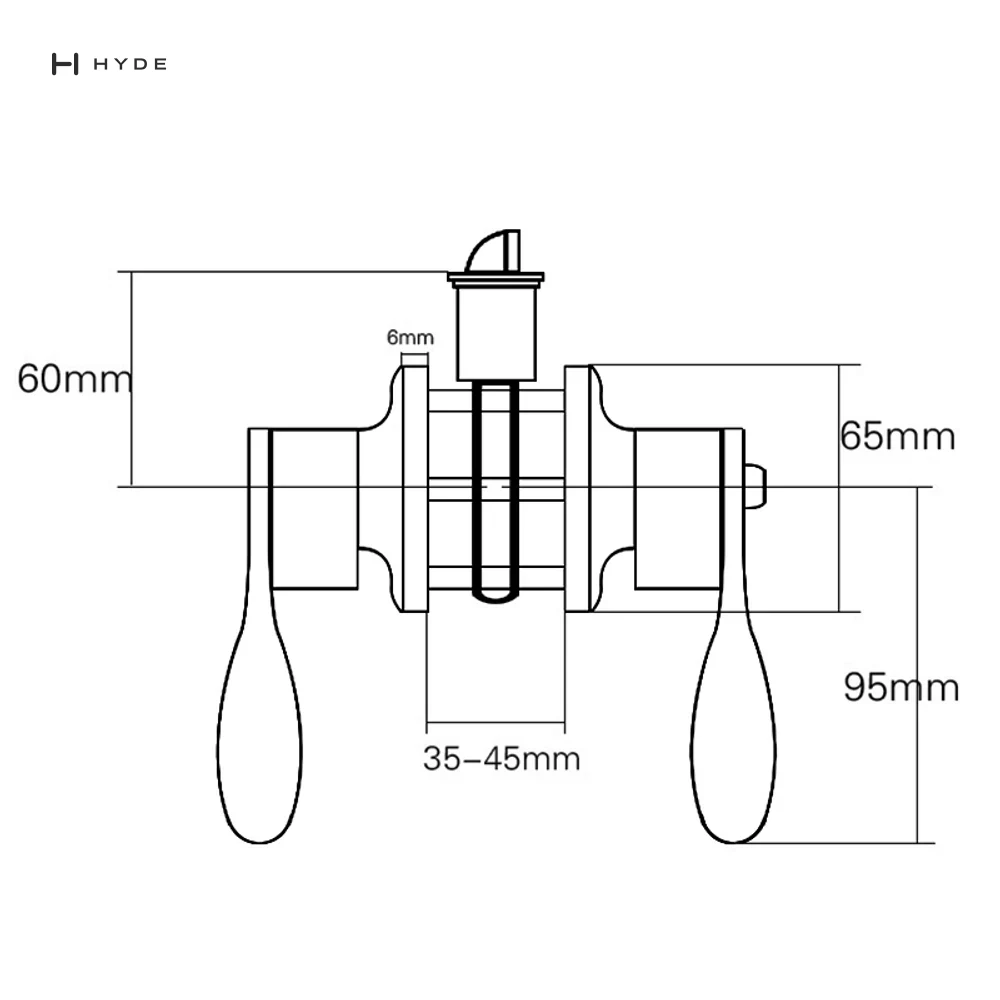

Drawings
Drawings and files published for this model.
816 PBET
Video
23 seconds of the part working.
816 PBET
Common questions
- What is the 816 PBET made from?
- Material of the 816 PBET: Zinc alloy.
- Which finishes is the 816 PBET available in?
- Finishes available for the 816 PBET: Polished brass (US3).
- What backset does the 816 PBET use?
- Backset of the 816 PBET: 60/70mm.
- What door thickness does the 816 PBET suit?
- Door thickness for the 816 PBET: 35mm to 45mm adjustable.
- What function does the 816 PBET provide?
- Function of the 816 PBET: Entrance, keyed outside.
- How many cycles is the 816 PBET tested to?
- Cycle rating of the 816 PBET: 200,000 cycles.
816 PBET
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish816 PBET, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
