Heavy Duty Cylindrical Lock
5871 SSET Heavy Duty Cylindrical Lock
Model
5871 SSET

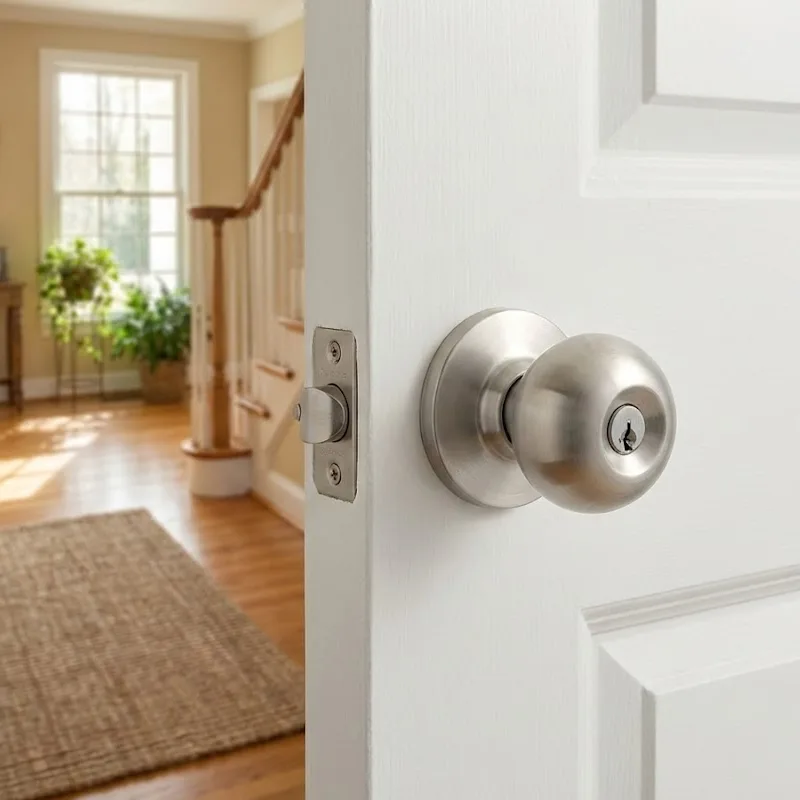

A stainless steel knob lock in satin stainless steel (US32D), entrance function.
- Latch Bolt: 12mm (1/2”) throw with deadlocking
- Door Thickness: 35–50mm (1-3/8” to 2”), adjustable
- Backset: Standard 70mm (2-3/4”); optional 60mm or 90mm available
- Handing: Fully reversible for left or right hand doors
- Introduction
- Ideal for medium-grade commercial and heavy-duty residential applications
- Supports keyed alike function with deadbolts to enhance security
- Tested for over 200,000 life cycles
- Solid steel chassis and latch case, zinc-plated for corrosion resistance
- Exposed trim in zinc die-casting (electroplated) or solid brass
- 5-pin brass cylinder, brass plug with 2 nickel-plated brass keys
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Stainless steel
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel chassis and latch case, zinc plated
- Trim
- Zinc die-casting electro-plated or solid brass
- Cylinder
- 5-pin tumbler, brass plug, two nickel-plated brass keys
- Latch
- Deadlocking on keyed functions
- Handing
- Fully reversible, left or right hand
- Application
- Commercial offices, schools and heavy-duty residential
- Keying
- Can be keyed alike to deadbolts
- Finish
- Satin stainless steel (US32D)
- Function
- Entrance, keyed outside
Common questions
- What is the 5871 SSET made from?
- The 5871 SSET is made from Stainless steel.
- Which finishes is the 5871 SSET available in?
- The 5871 SSET is available in Satin stainless steel (US32D).
- What function does the 5871 SSET provide?
- The 5871 SSET provides Entrance, keyed outside.
- How many cycles is the 5871 SSET tested to?
- The 5871 SSET is tested to 200,000 cycles.
- Where is the 5871 SSET used?
- The 5871 SSET is used on Commercial offices, schools and heavy-duty residential.
- Is the 5871 SSET handed?
- Handing for the 5871 SSET: Fully reversible, left or right hand.
