Door viewer
DV11 Door viewer
Model
DV11

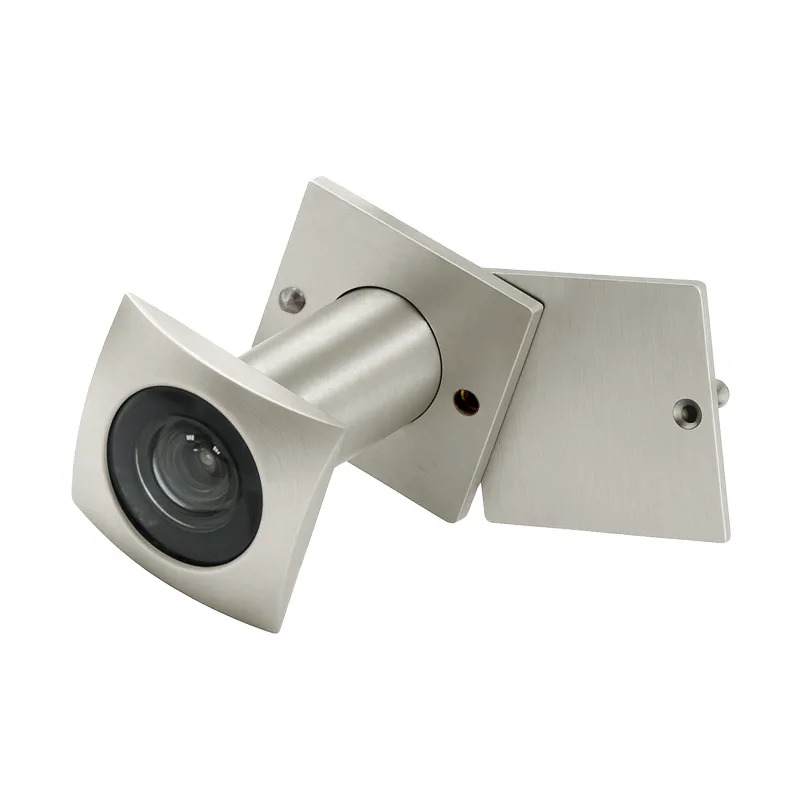

A brass door viewer, monitoring outdoor function.
- Introduction:
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Find DV11 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Brass
- Finish
- Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP), Satin Nickel (SN)
- Function
- Monitoring Outdoor
- Lens
- Synthetic resin lens with cover

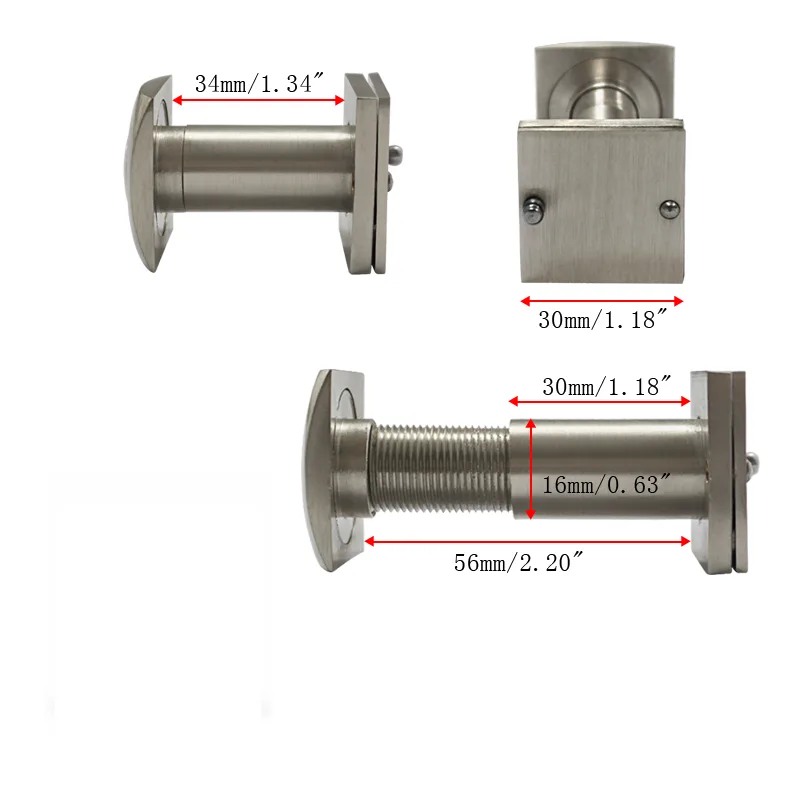

- Diameter
- 12mm / 14mm / 16mm (1/2" / 9/16" / 5/8")
- Suitable Door Thickness
- 35–55mm (1-3/8" to 2-3/16")
- Viewing Angle
- 180° / 200°
Common questions
- What is the DV11 made from?
- The DV11 is made from Brass.
- Which finishes is the DV11 available in?
- The DV11 is available in Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP), Satin Nickel (SN).
- What door thickness does the DV11 suit?
- The DV11 suits a door thickness of 35–55mm.
- What function does the DV11 provide?
- The DV11 provides Monitoring Outdoor.
- What is the ANSI/BHMA finish code for the DV11?
- Over the Brass base of the DV11, its finishes correspond to 605 (US3, Bright Brass, clear coated), 625 (US26, Bright Chromium plated), 619 (US15, Satin Nickel plated, clear coated) under ANSI/BHMA A156.18.
