Grab Bar · 4 models in this range

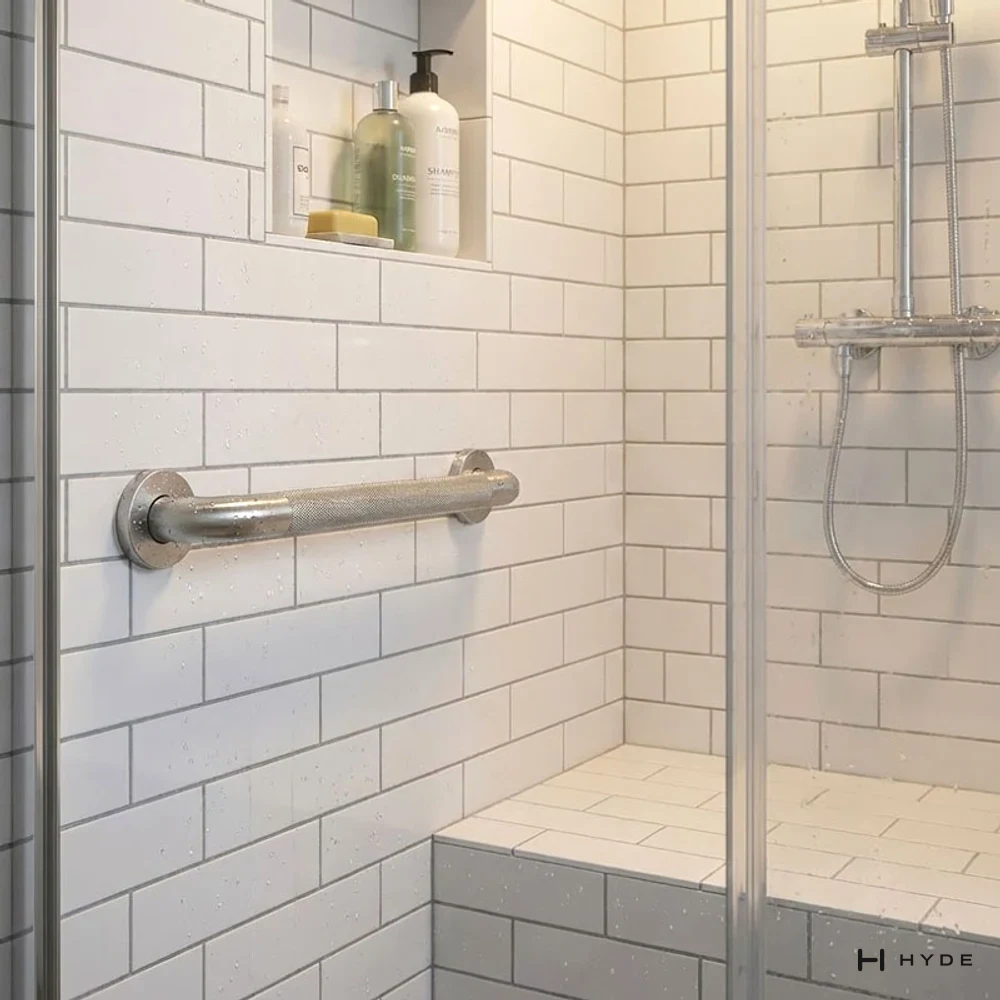

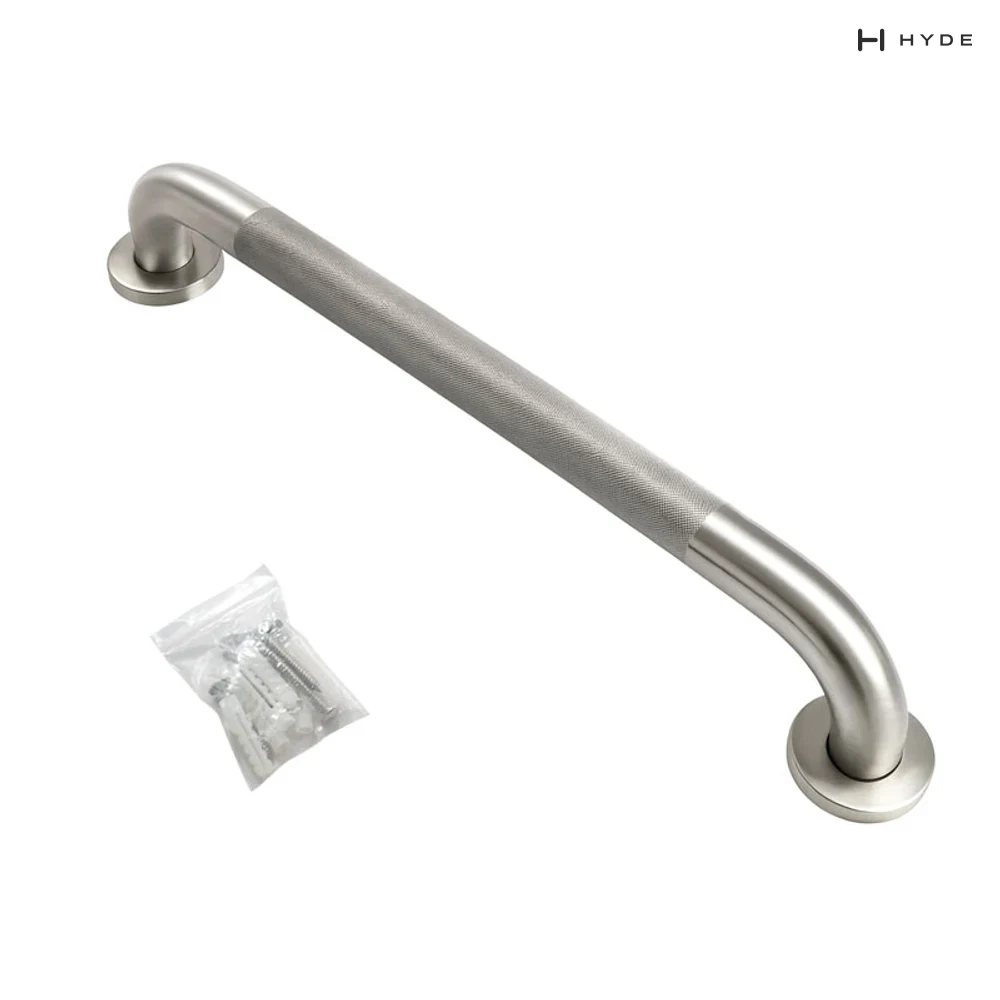

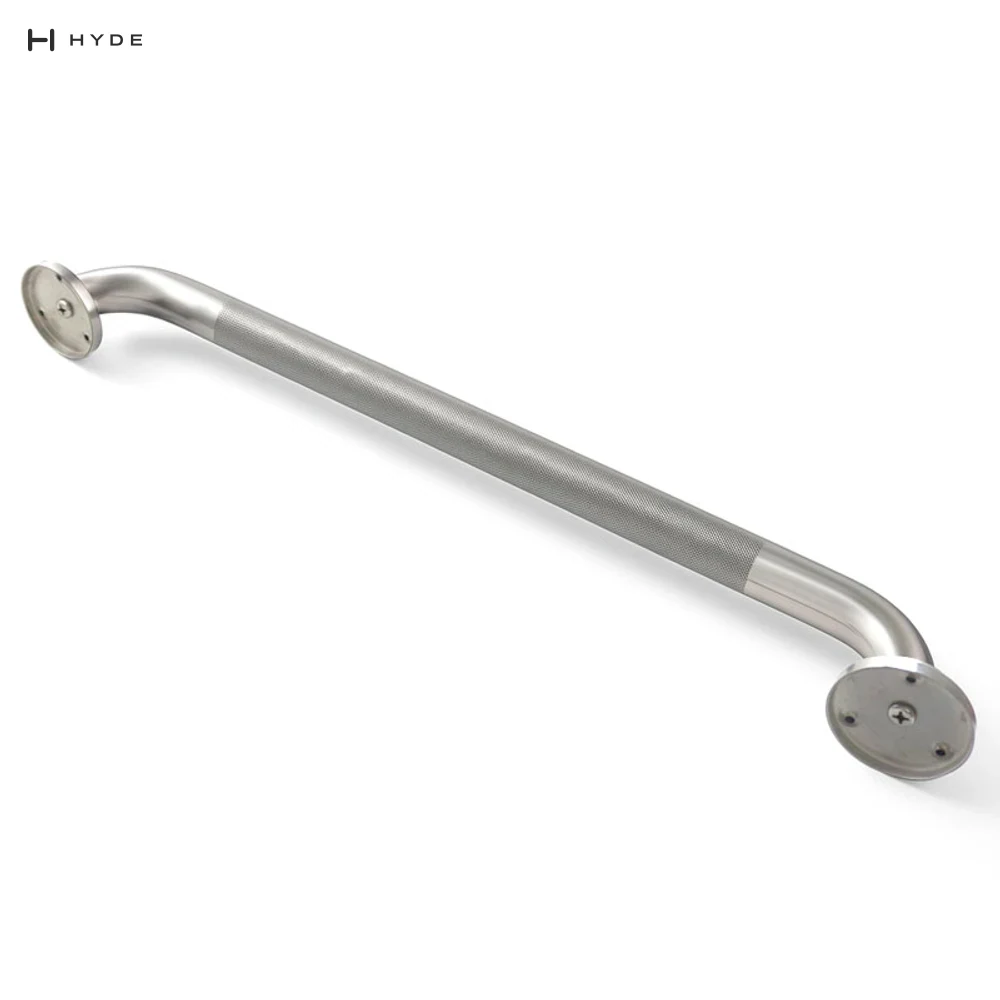

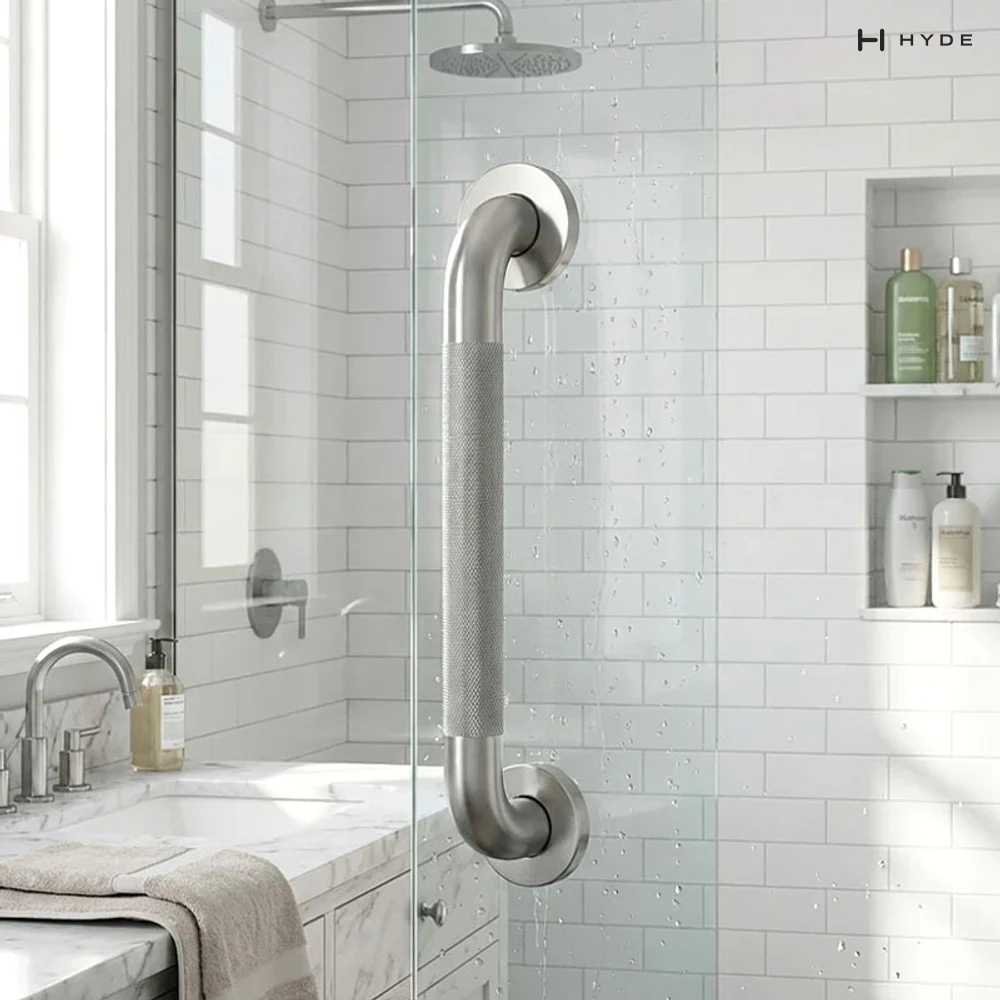

BH02 Knurled Grab Bar
Straight grab bar with a knurled grip section, in lengths from 300 to 1000mm, in satin or polished stainless steel.
- Material
- Stainless Steel
- Finish
- Satin Stainless Steel (SSS), Polished Stainless Steel (PSS)
- Length
- 300mm/400mm/500mm/600mm/700mm/800mm/900mm/1000mm (11-13/16" / 15-3/4" / 19-11/16" / 23-5/8" / 27-9/16" / 31-1/2" / 35-7/16" / 39-3/8")
- Application
- Bathroom
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
BH02
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Stainless Steel
- Finish
- Satin Stainless Steel (SSS), Polished Stainless Steel (PSS)
- Length
- 300mm/400mm/500mm/600mm/700mm/800mm/900mm/1000mm (11-13/16" / 15-3/4" / 19-11/16" / 23-5/8" / 27-9/16" / 31-1/2" / 35-7/16" / 39-3/8")
- Application
- Bathroom
- Suitable for
- Bathroom
BH02

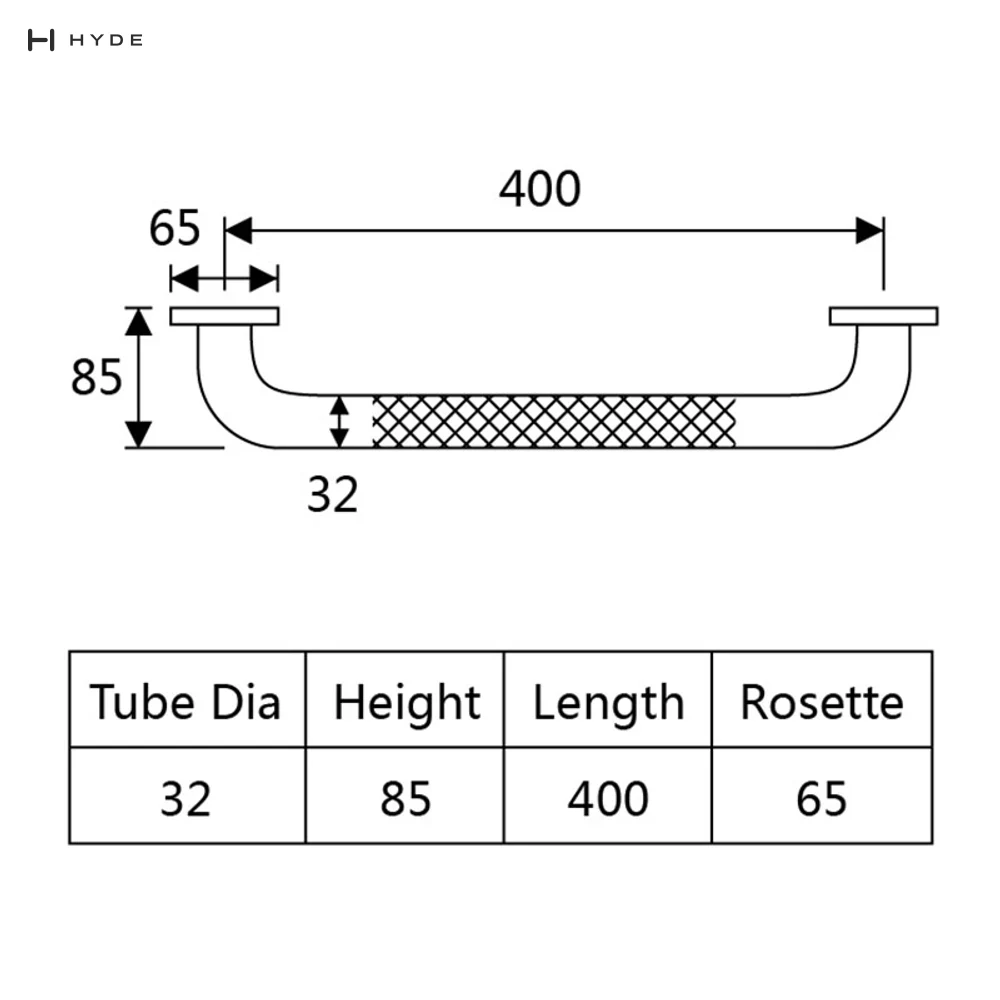

Drawings
Drawings and files published for this model.
BH02
Common questions
- What is the BH02 made from?
- Material of the BH02: Stainless Steel.
- Which finishes is the BH02 available in?
- Finishes available for the BH02: Satin Stainless Steel (SSS), Polished Stainless Steel (PSS).
- Where is the BH02 used?
- Where the BH02 is used: Bathroom.
- What size is the BH02?
- Size of the BH02: 300mm/400mm/500mm/600mm/700mm/800mm/900mm/1000mm.
- What is the ANSI/BHMA finish code for the BH02?
- Over the Stainless Steel base of the BH02, its finishes correspond to 630 (US32D, Stainless Steel Metal, Satin), 629 (US32, Stainless Steel Metal, Bright) under ANSI/BHMA A156.18.
BH02
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishBH02, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
