Glass Door Handle · 44 models in this range

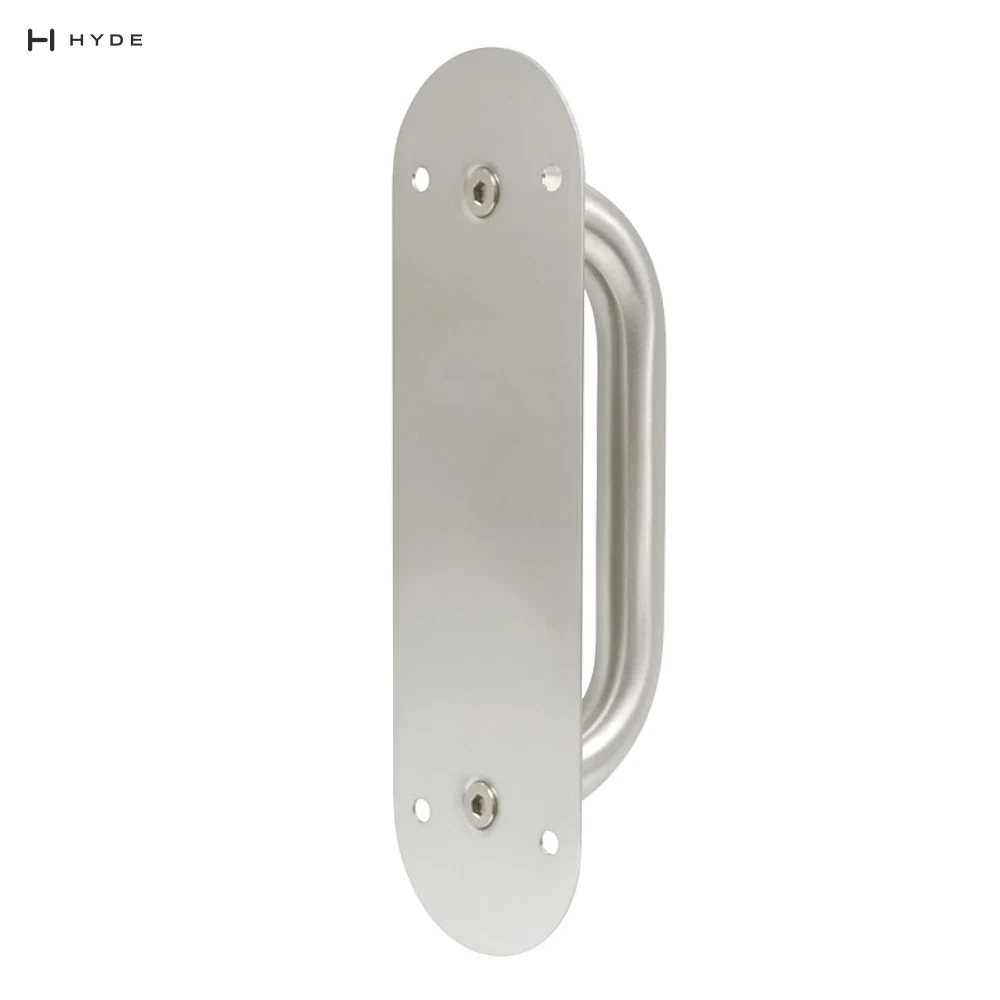

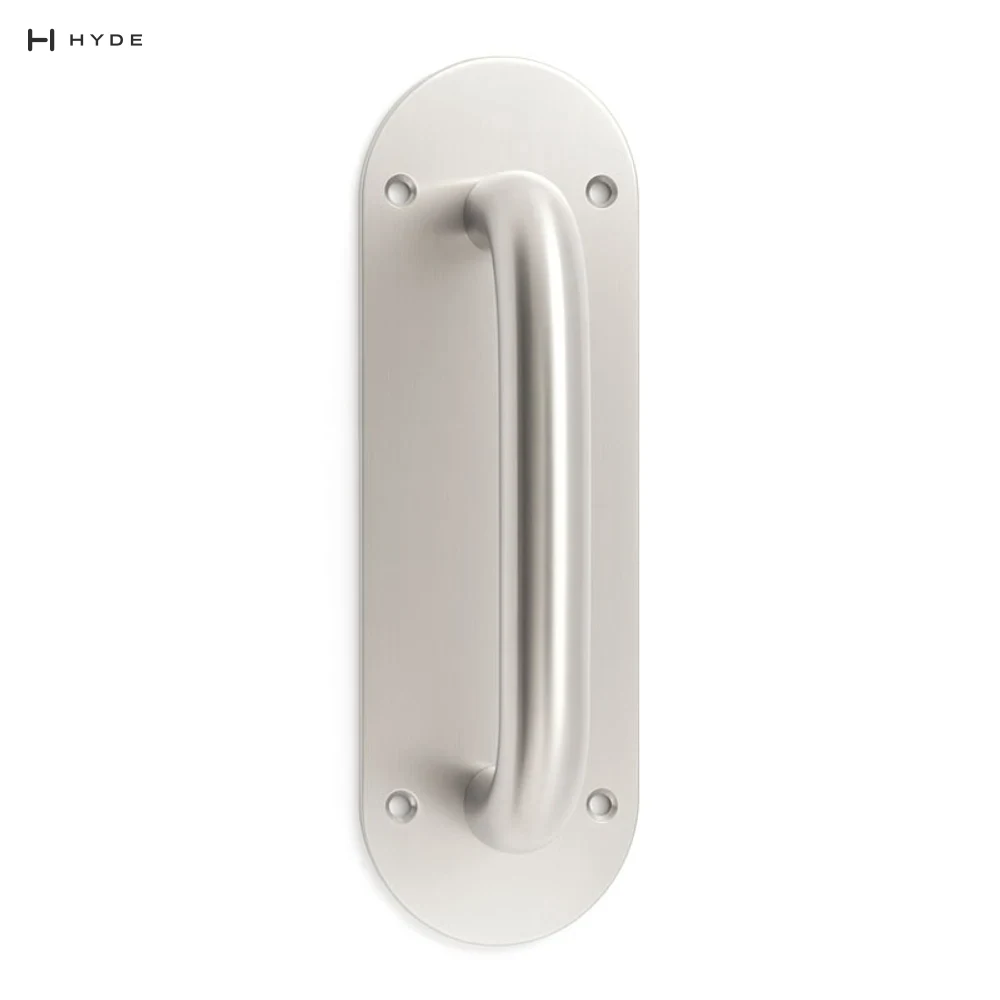

19-130MM Pull Handle on Backplate
Stainless steel pull handle with a 19mm grip on a 200 × 65mm screw-fixed backplate, for timber and metal doors.
- Material
- Stainless steel
- Plate size
- 200 × 65mm (7-7/8" × 2-9/16")
- Plate thickness
- 1.2mm (1/16")
- Projection
- 60mm (2-3/8")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
19-130MM
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Stainless steel
- Plate size
- 200 × 65mm (7-7/8" × 2-9/16")
- Plate thickness
- 1.2mm (1/16")
- Projection
- 60mm (2-3/8")
- Grip section
- 19mm (3/4")
- Slot width
- 20mm (13/16")
- Size
- 148mm across the outside of the legs (5-13/16")
19-130MM

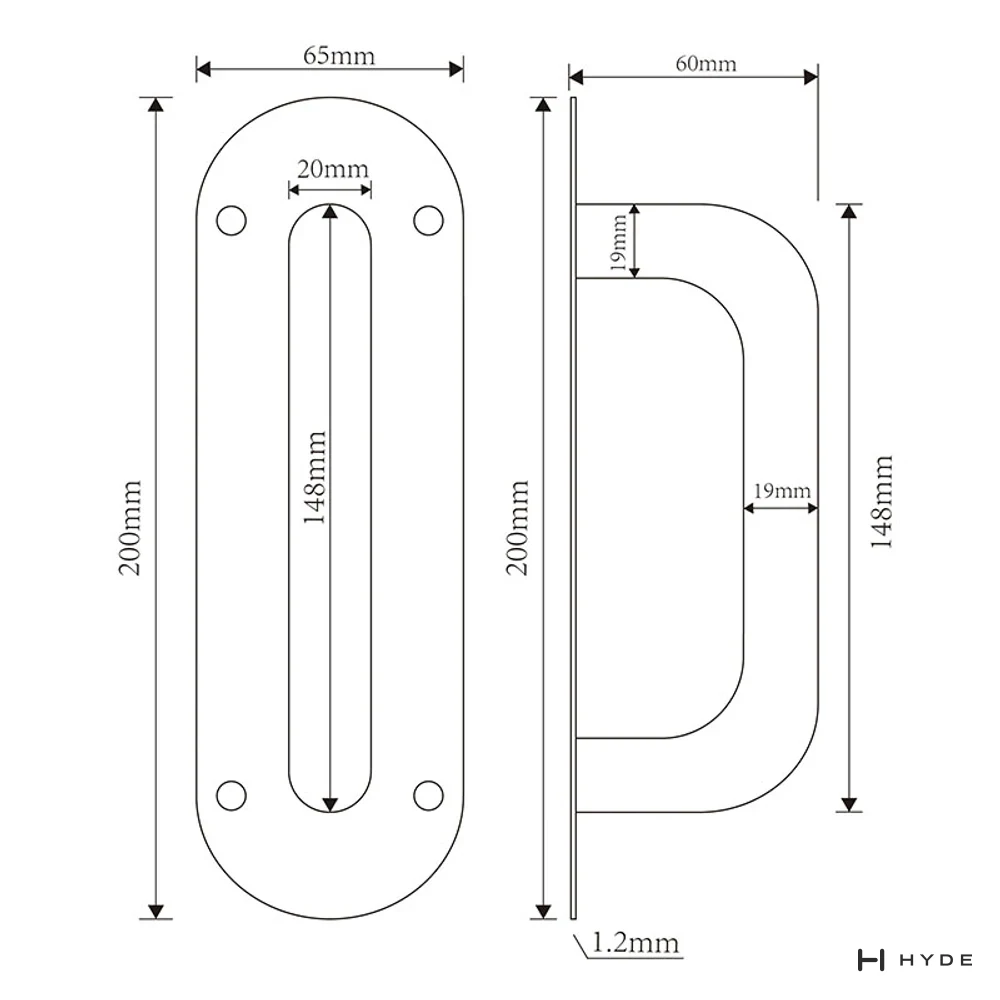

Drawings
Drawings and files published for this model.
19-130MM
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish19-130MM, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
