Night Latch And Rim Lock
5689 Night Latch And Rim Lock
Model
5689

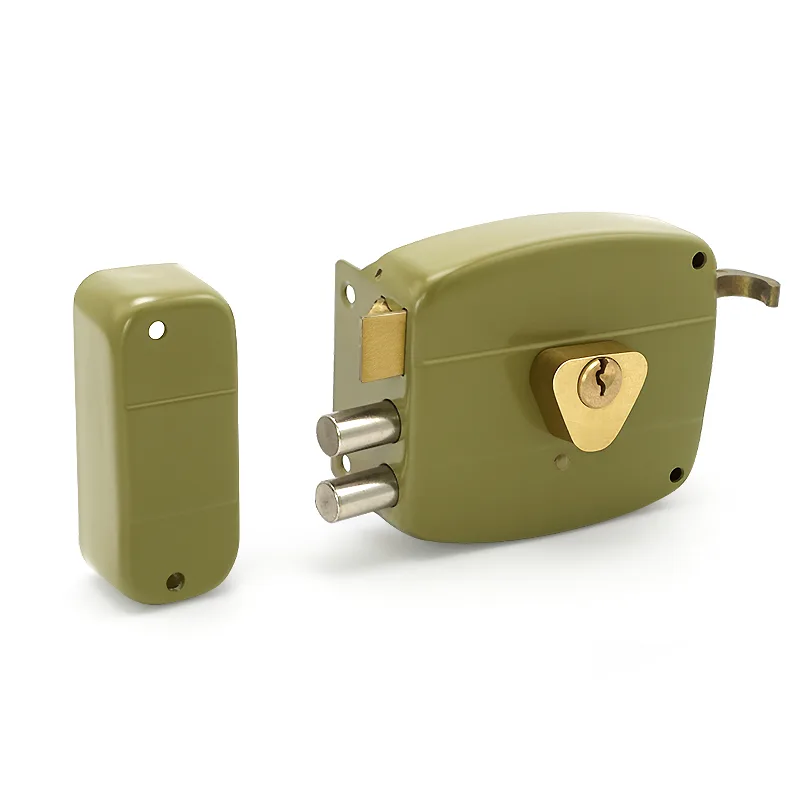

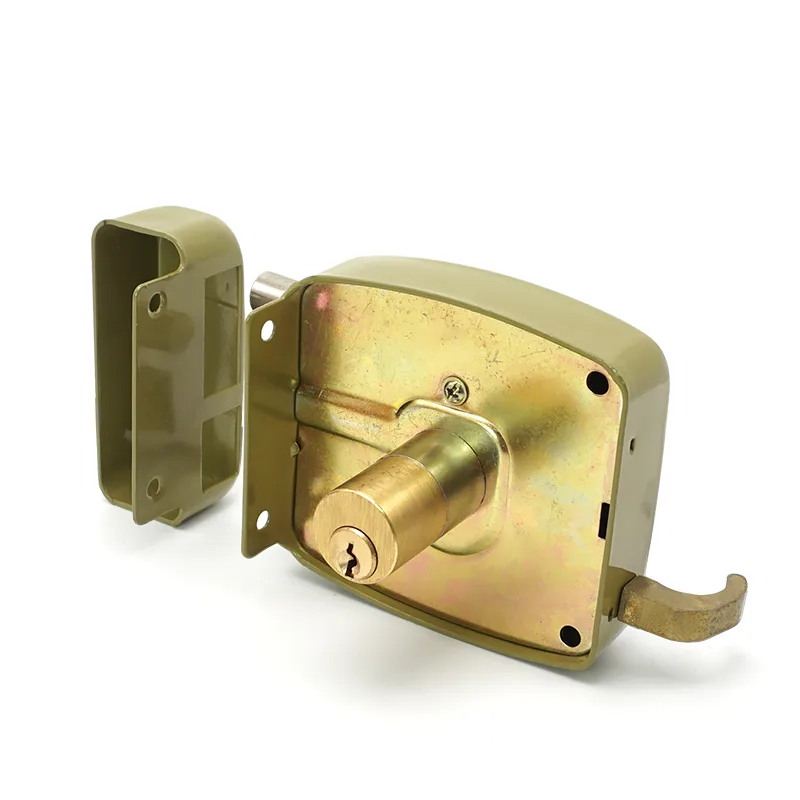

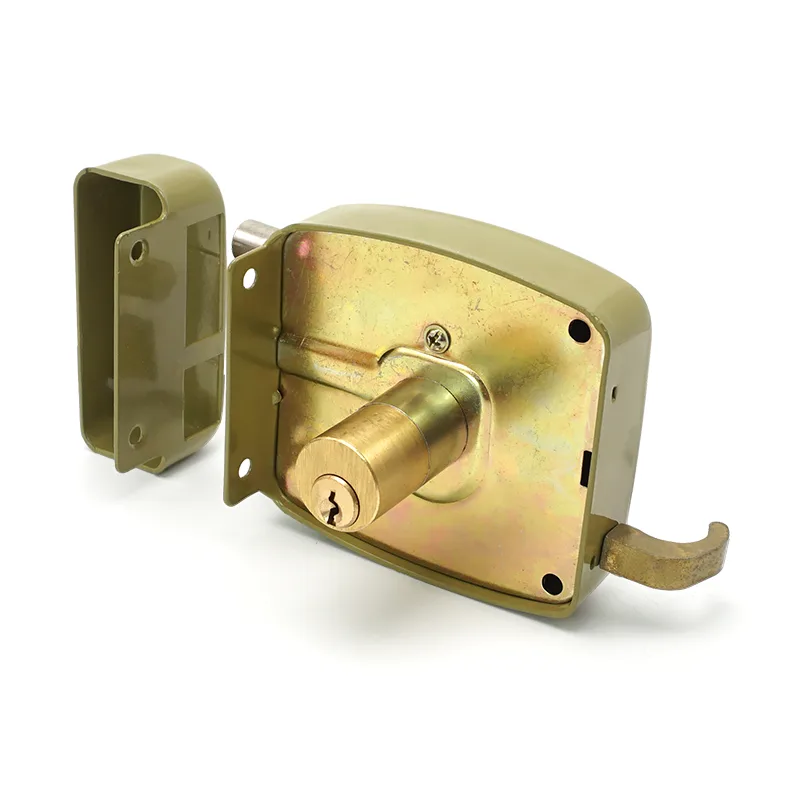

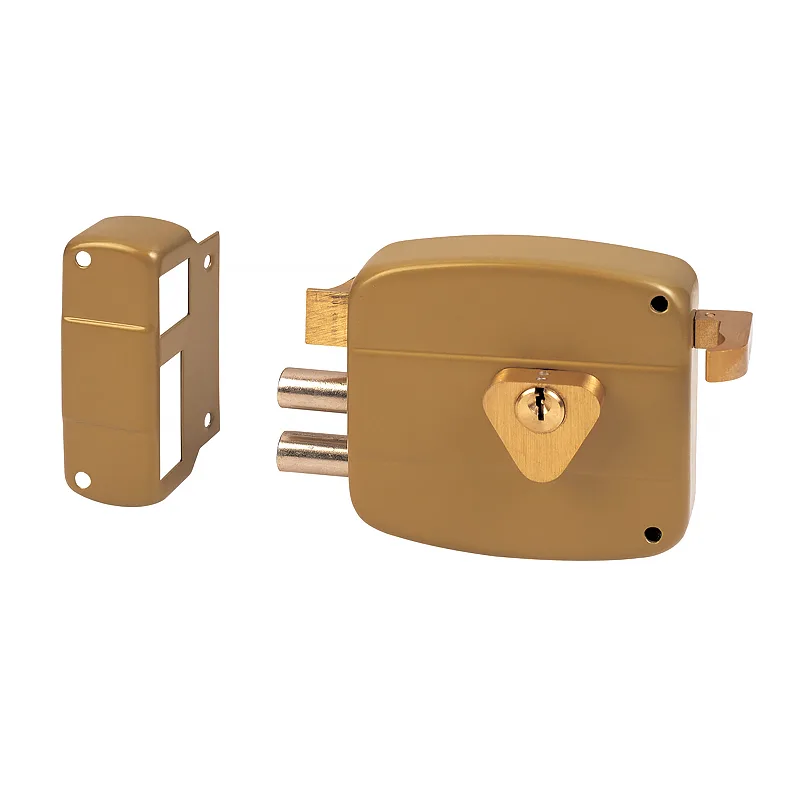

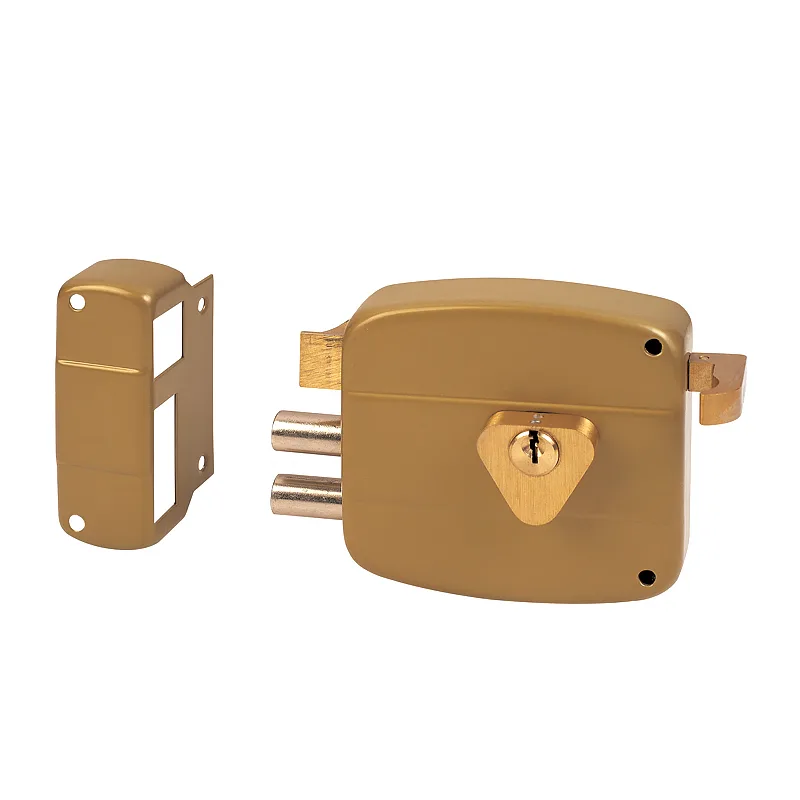

Iron case, steel base internal components with zinc plated finish night latch and rim lock, 60mm backset.
- Durable construction with an attractive finish
- Double cylinder, double-throw rim lock
- Triple security: anti-pry, anti-inside unlock without key, and anti-removal from inside when locked
- Suitable for wooden or iron doors
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Iron case, steel base internal components with zinc plated finish
- Backset
- 60mm (2-3/8")
- Cylinder
- Double cylinder, solid brass cylinder plug
- Finish
- Painting
- Packing
- Blister or color box available,24 pcs/ctn
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
- Size
- 100×100mm (3-15/16" × 3-15/16")

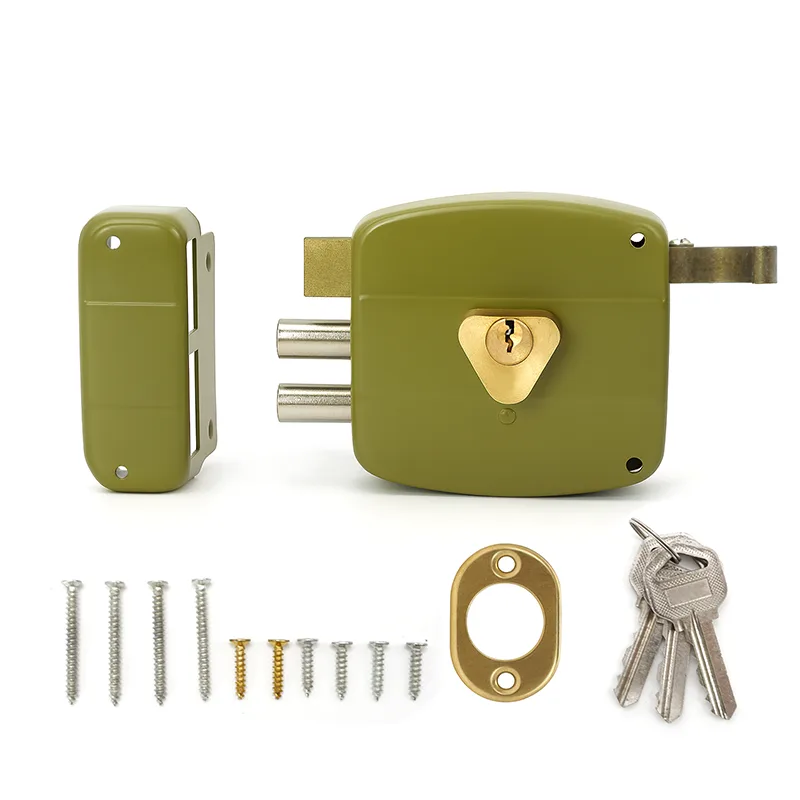

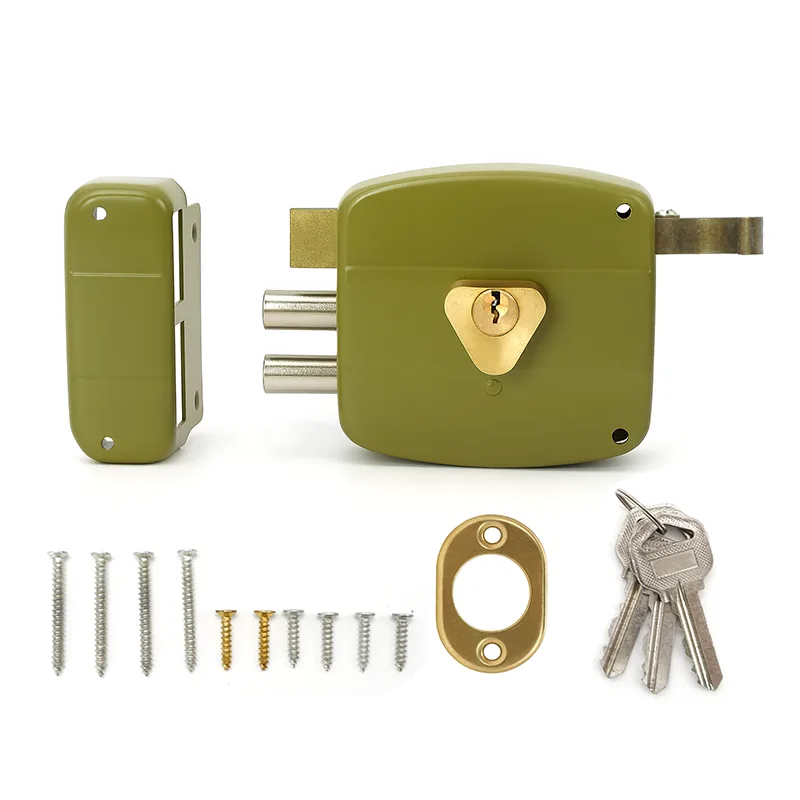

- Accessories
- Includes installation screws
- Customization
- OEM & ODM available
- Pieces per carton
- 24
- Carton size
- 30.2×26×40.4 cm
- Carton volume
- 0.0317 m³
- Gross weight
- 19.6 kg
- Net weight
- 18.6 kg
Dimensioned drawing
Case 100 × 100mm, backset 60mm, bolt throw 25mm.
Drawn 1:1 from the published specification
Common questions
- What is the 5689 made from?
- The 5689 is made from Iron case, steel base internal components with zinc plated finish.
- Which finishes is the 5689 available in?
- The 5689 is available in Painting.
- What backset does the 5689 use?
- The 5689 has a backset of 60mm.
- What door thickness does the 5689 suit?
- The 5689 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the 5689 provide?
- The 5689 provides Single cylinder, double cylinder or self-locking.
- Is the 5689 handed?
- Handing for the 5689: Fully reversible, left or right hand.
