AR4-110 Security Mortise Lock Body

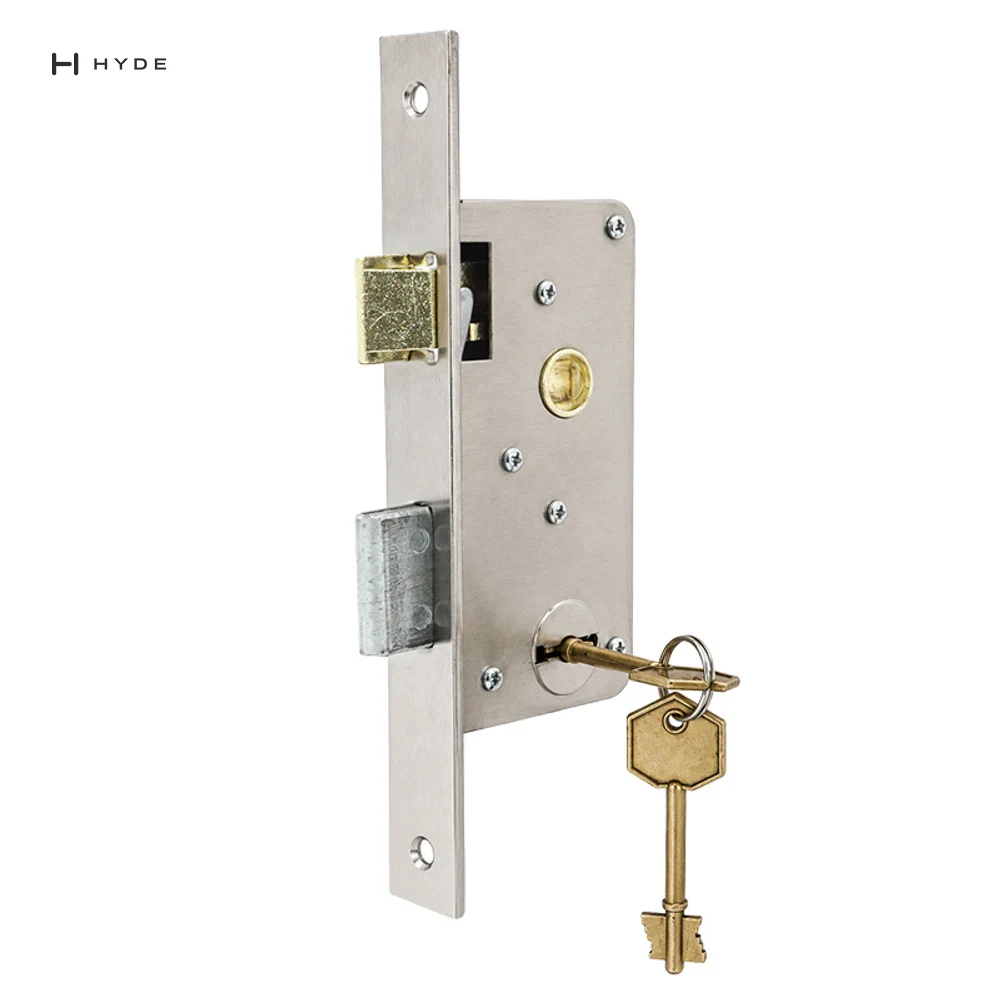

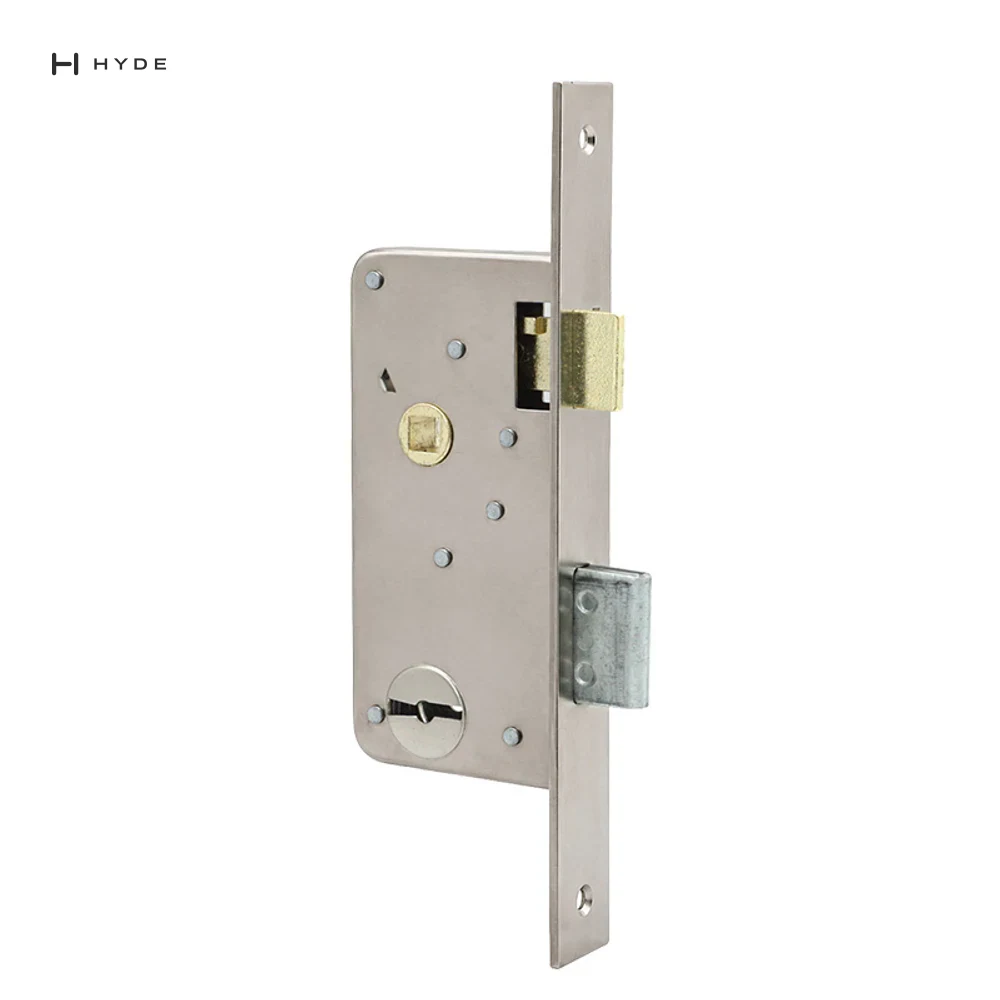

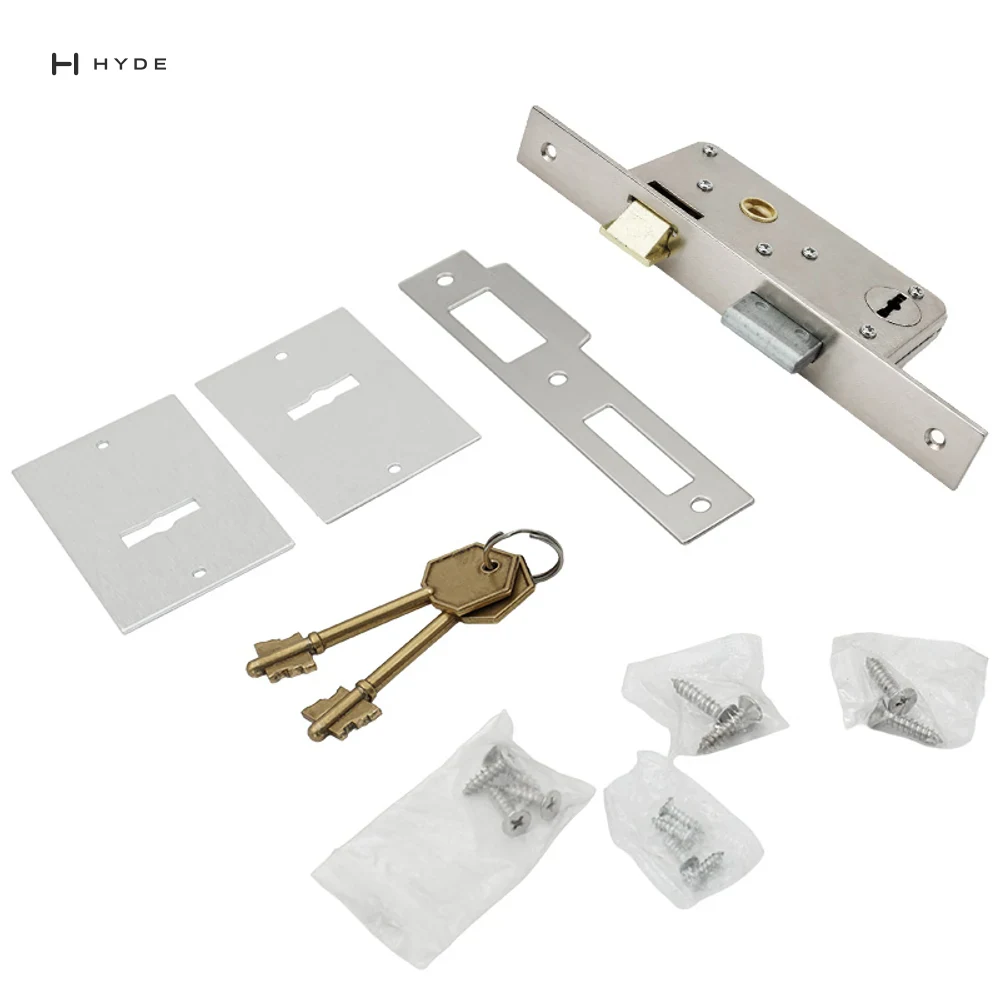

Security mortise lock body: 40mm backset, 68mm center distance and a 212 × 25mm faceplate, supplied with two keys.
- Factory reference
- 6840
- Center distance
- 68mm (2-11/16")
- Backset
- 40mm (1-9/16")
- Faceplate
- 212 × 25mm (8-3/8" × 1")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
AR4-110
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Factory reference
- 6840
- Center distance
- 68mm (2-11/16")
- Backset
- 40mm (1-9/16")
- Faceplate
- 212 × 25mm (8-3/8" × 1")
- Case size
- 127.3 × 60.8mm (5" × 2-3/8")
- Latch options
- Copper-plated zinc alloy or brass
- Key options
- Zinc alloy or brass; two keys
- Material
- Nickel-plated iron lock case

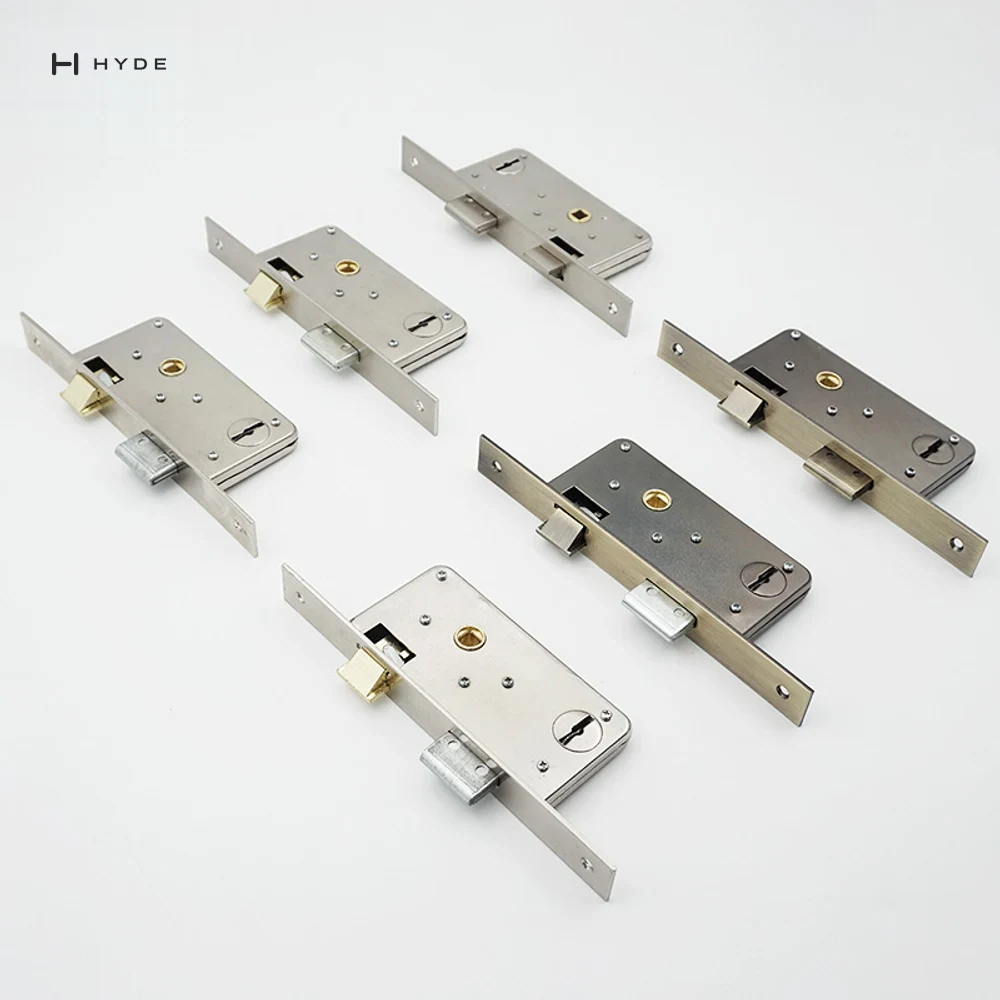

- Available finishes
- Nickel-plated
AR4-110

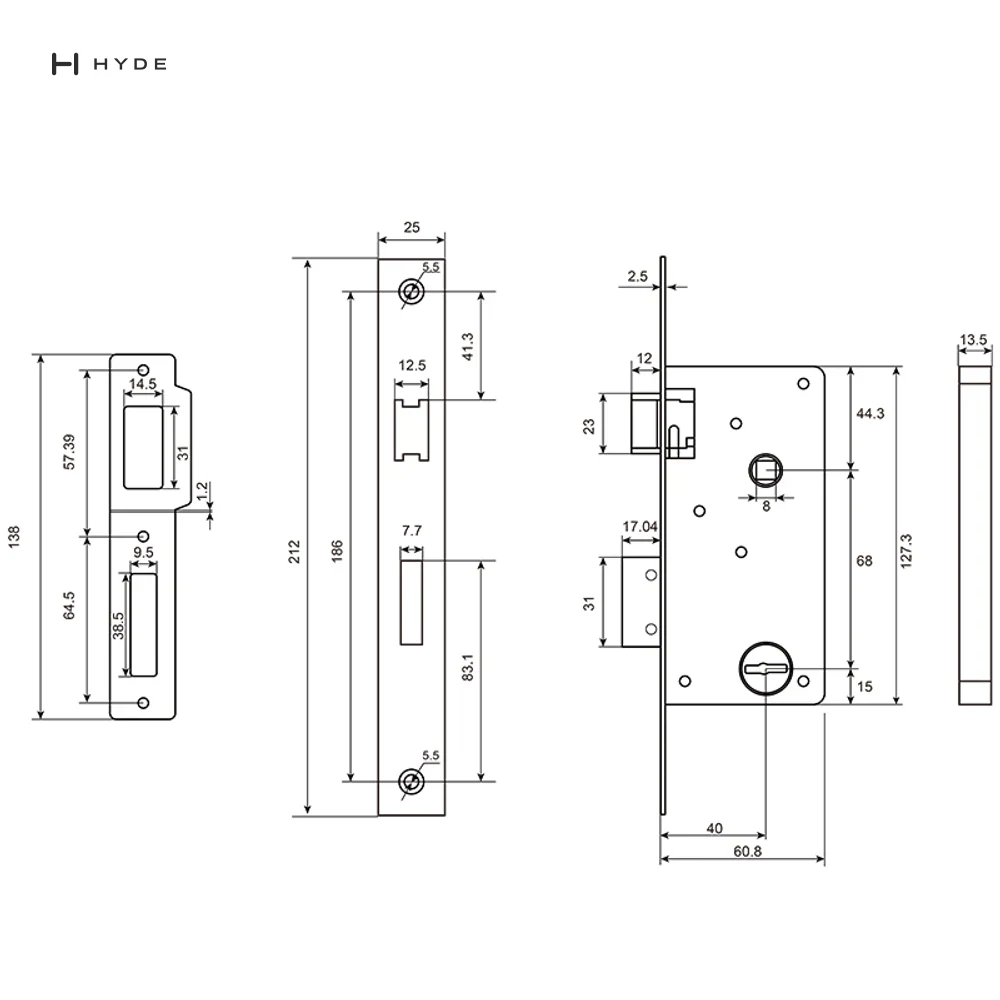

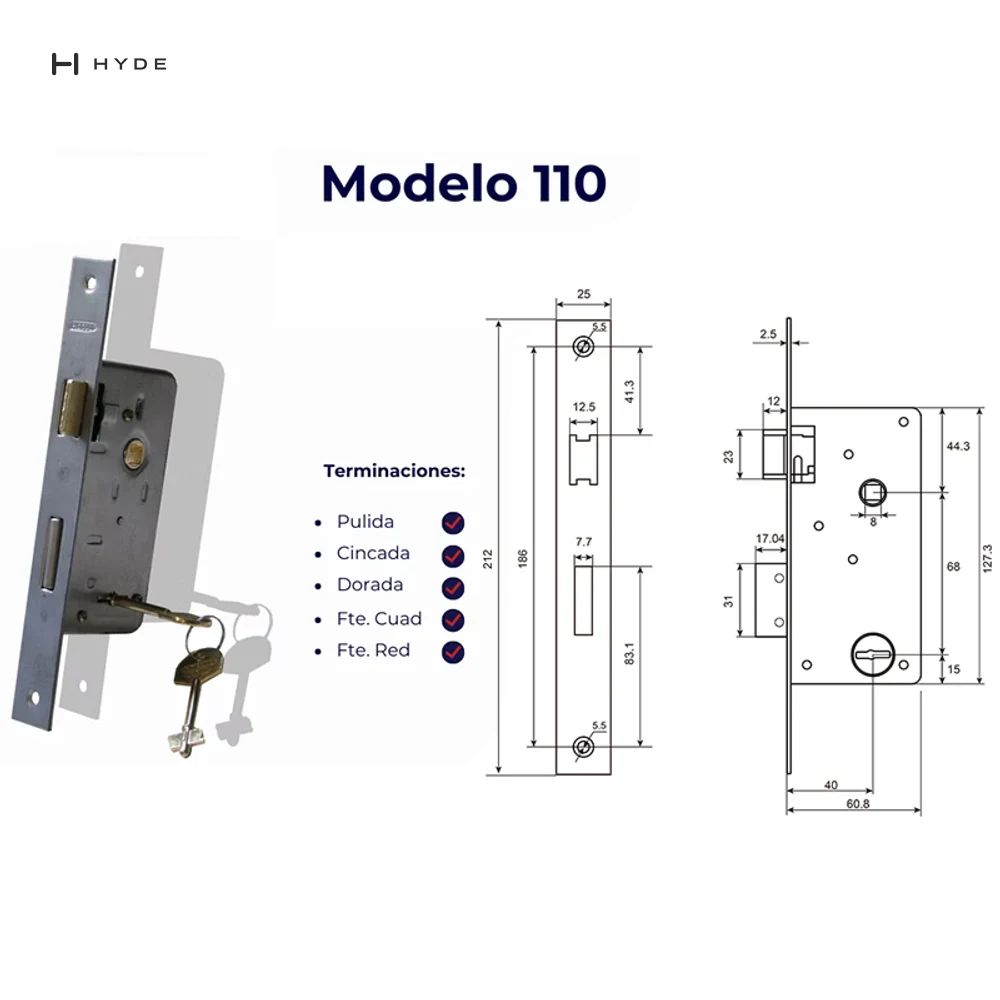

Drawings
Drawings and files published for this model.
AR4-110
Video
39 seconds of the part working.
AR4-110
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishAR4-110, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
