Lever Handle · 49 models in this range

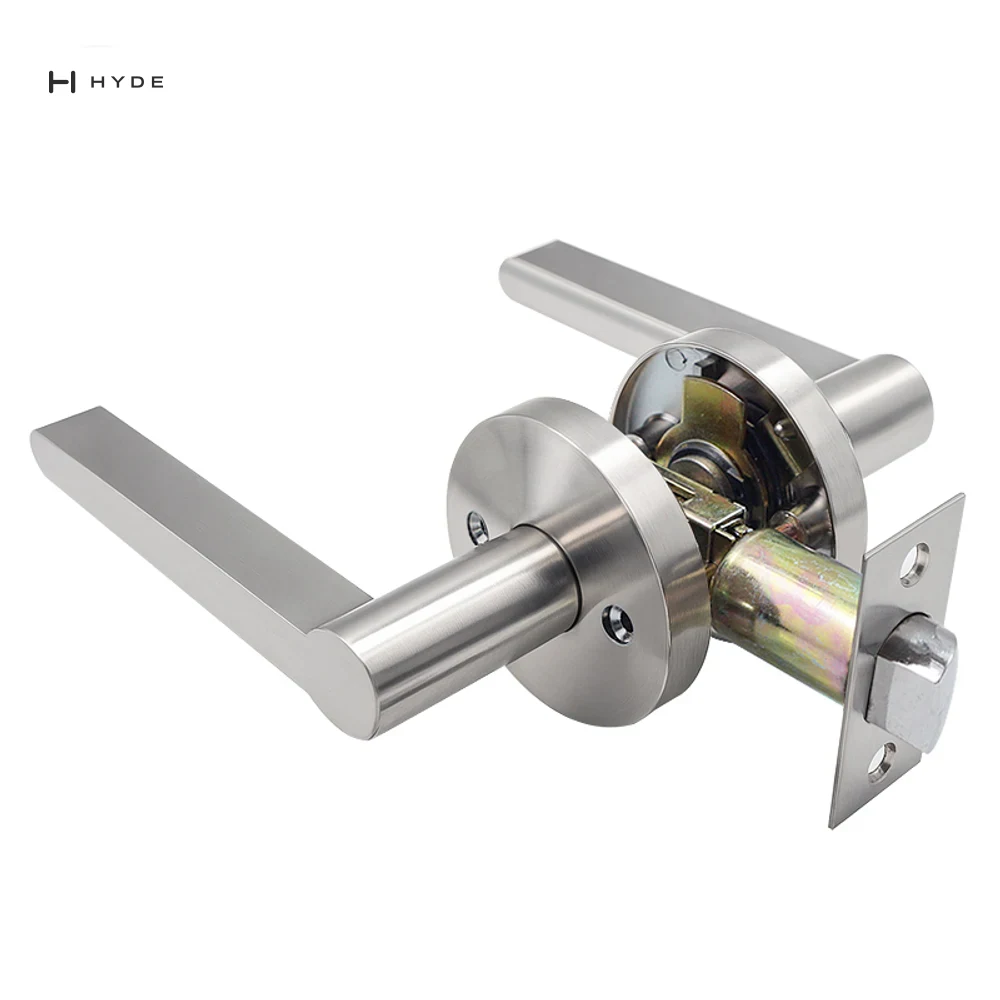

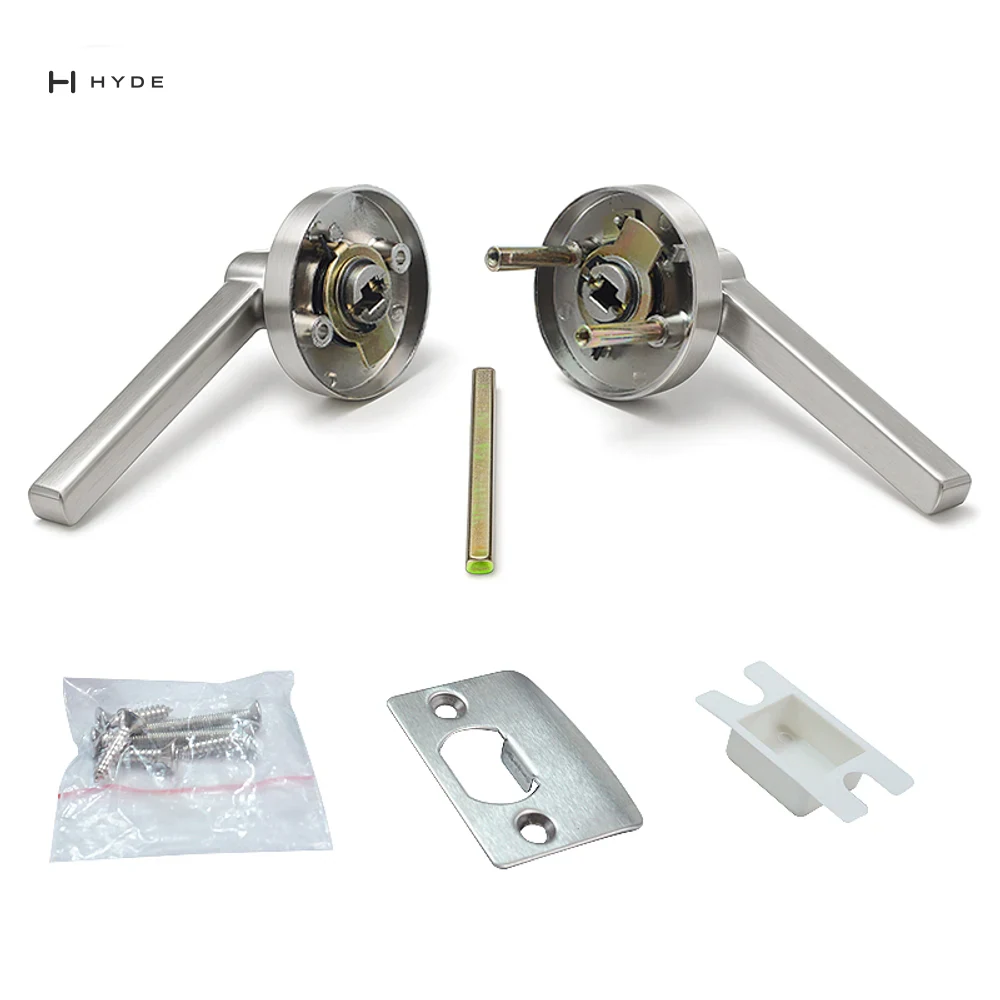

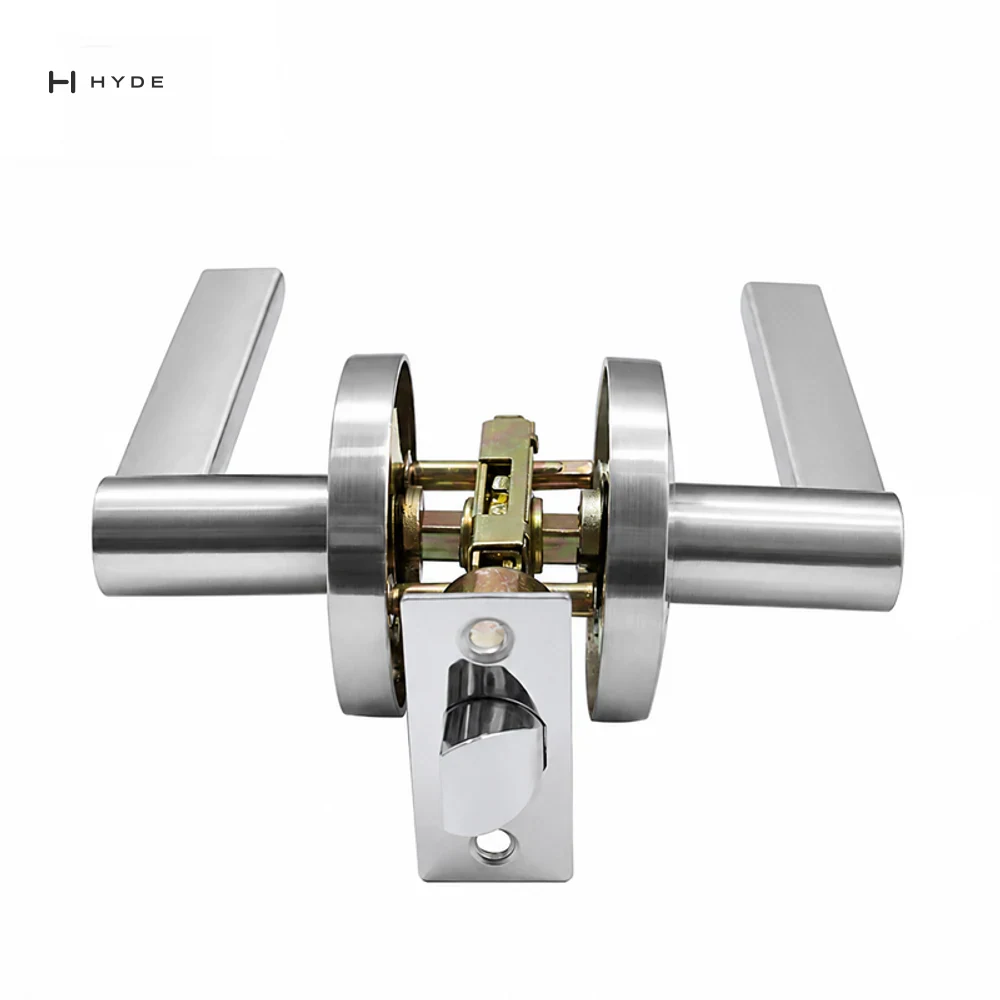

LH853 SNPS Lever Handle
Lever Handle in satin nickel, passage function.
- Material
- Zinc alloy
- Backset
- 60mm (2-3/8")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
LH853 SNPS
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60mm (2-3/8")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Passage
- Finish
- Satin nickel
- Application
- For passage doors
Features
- Economical and easy to install, ideal for residential use
- Key or thumb-turn locks/unlocks both levers
- Turn thumb-turn counterclockwise or key clockwise to lock; reverse to unlock
- Zinc-plated steel chassis and latch for corrosion resistance
- Exposed trim available in stainless steel or brass
LH853 SNPS

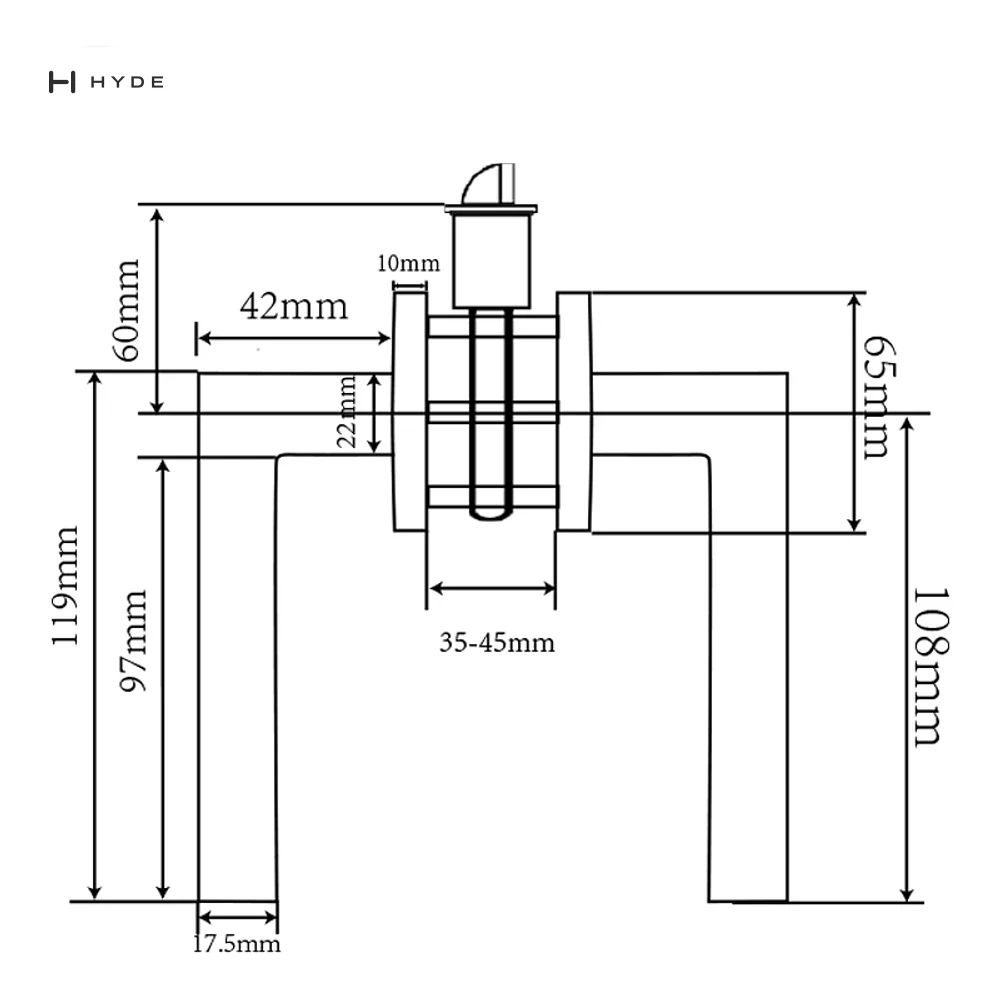

Drawings
Drawings and files published for this model.
LH853 SNPS
Video
25 seconds of the part working.
LH853 SNPS
Common questions
- What is the LH853 SNPS made from?
- The LH853 SNPS is made from Zinc alloy.
- Which finishes is the LH853 SNPS available in?
- The LH853 SNPS is available in Satin nickel.
- What backset does the LH853 SNPS use?
- The LH853 SNPS has a backset of 60mm.
- What door thickness does the LH853 SNPS suit?
- The LH853 SNPS suits a door thickness of 35mm to 45mm adjustable.
- What function does the LH853 SNPS provide?
- The LH853 SNPS provides Passage.
- How many cycles is the LH853 SNPS tested to?
- The LH853 SNPS is tested to 200,000 cycles.
LH853 SNPS
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishLH853 SNPS, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
LH853 SNPS
Next steps
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
