Lever Handle · 49 models in this range

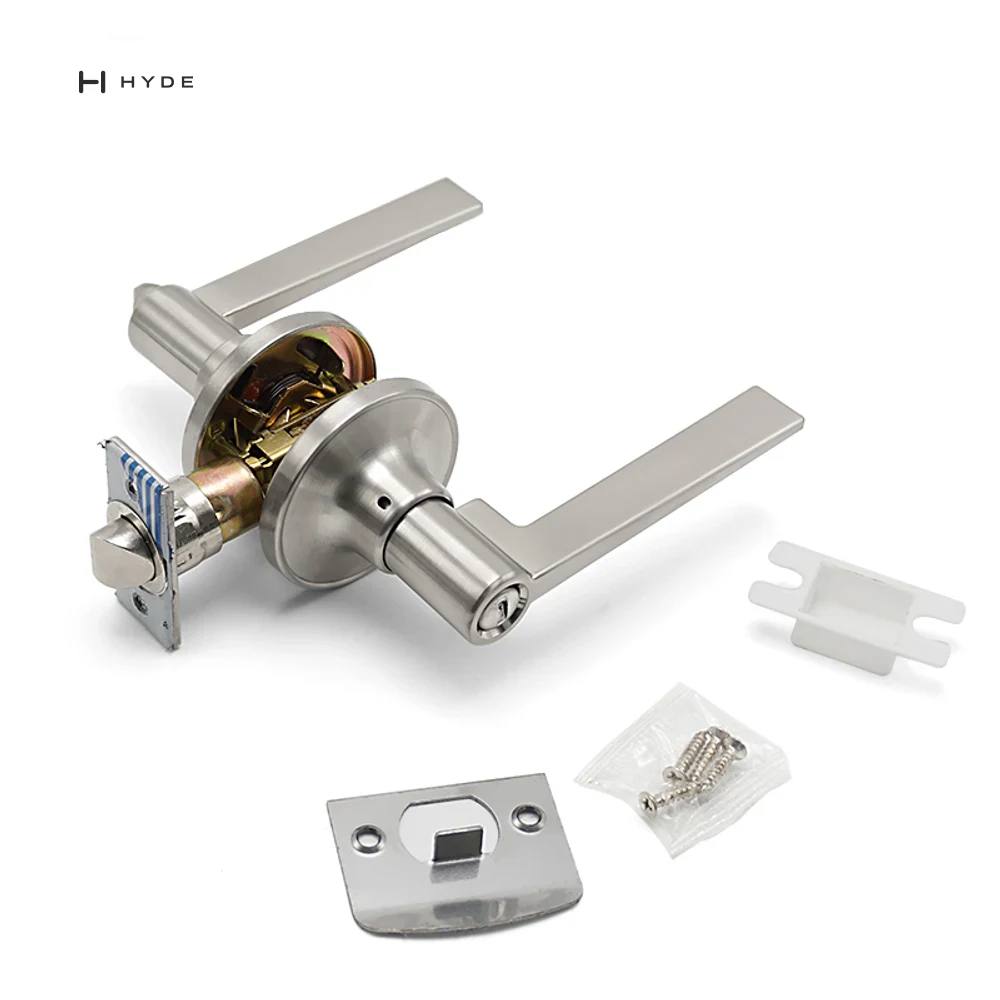

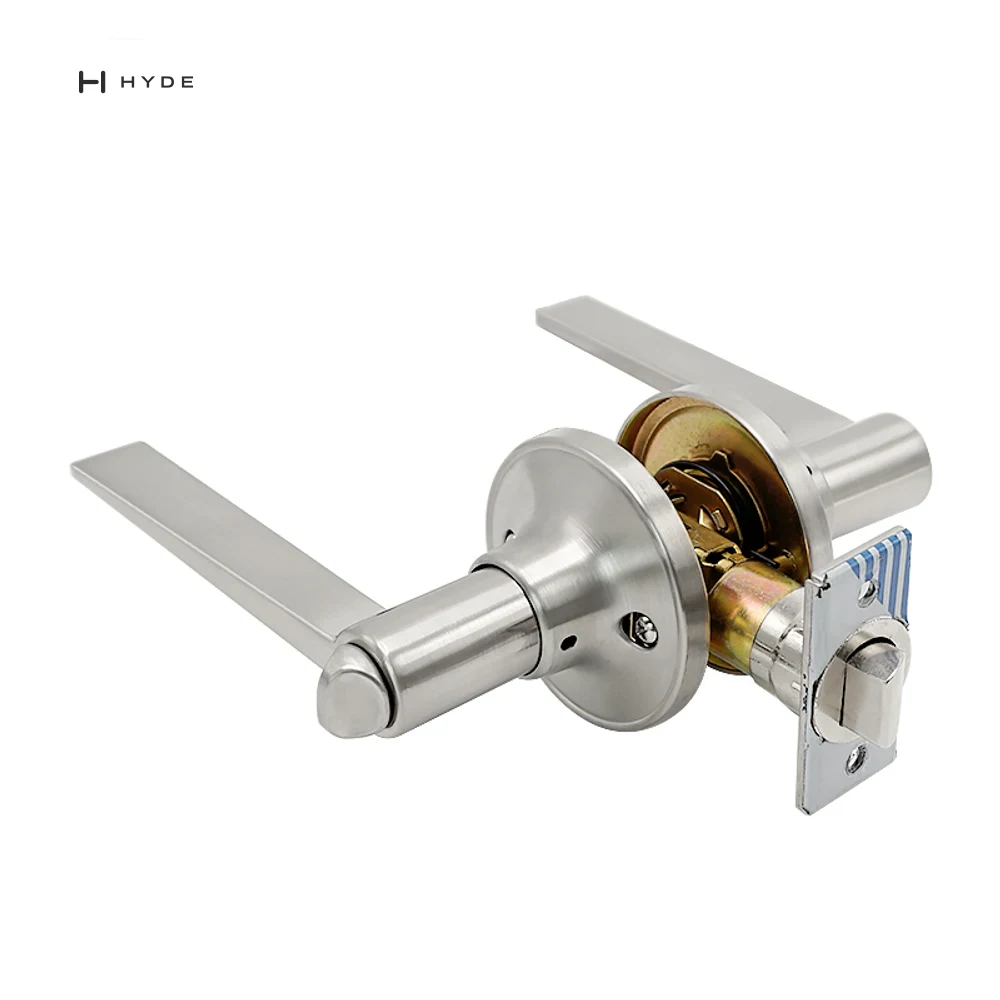

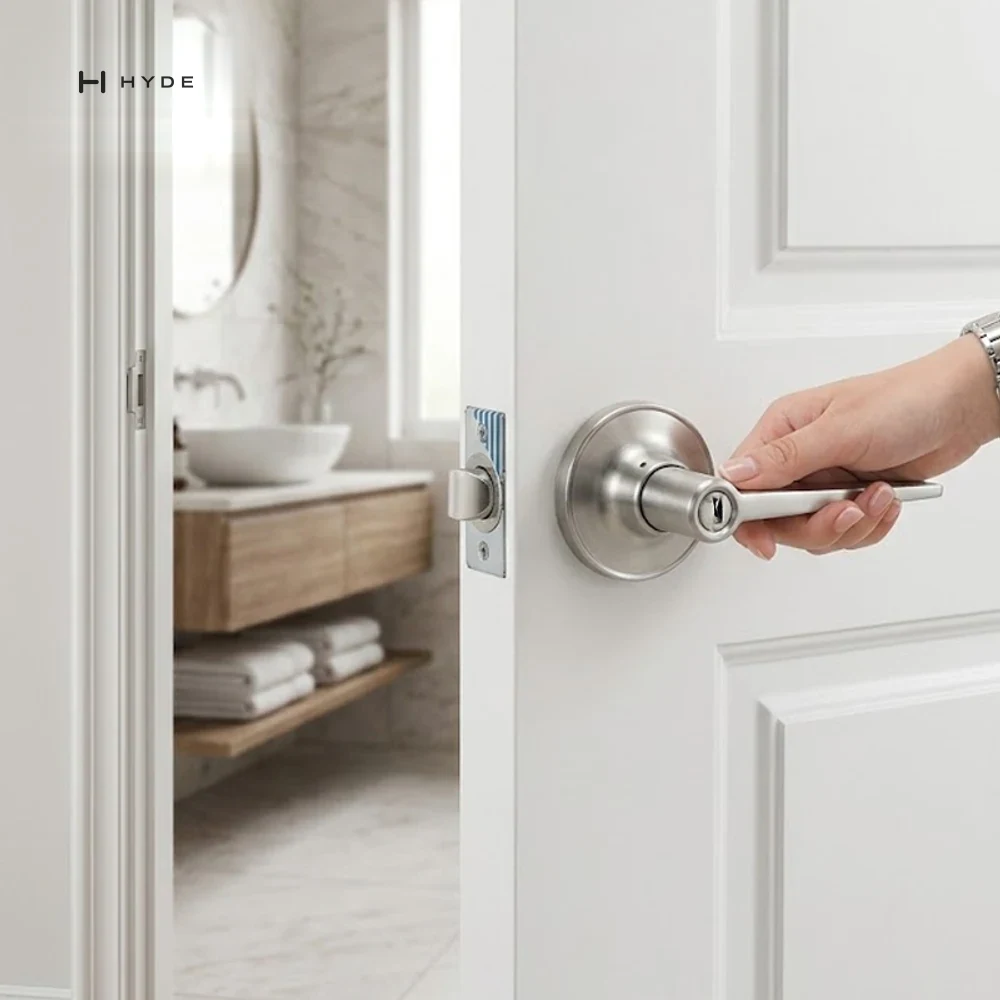

853 SSBK Lever Handle
Zinc alloy lever handle in a satin stainless steel finish (US32D), privacy function.
- Material
- Zinc alloy

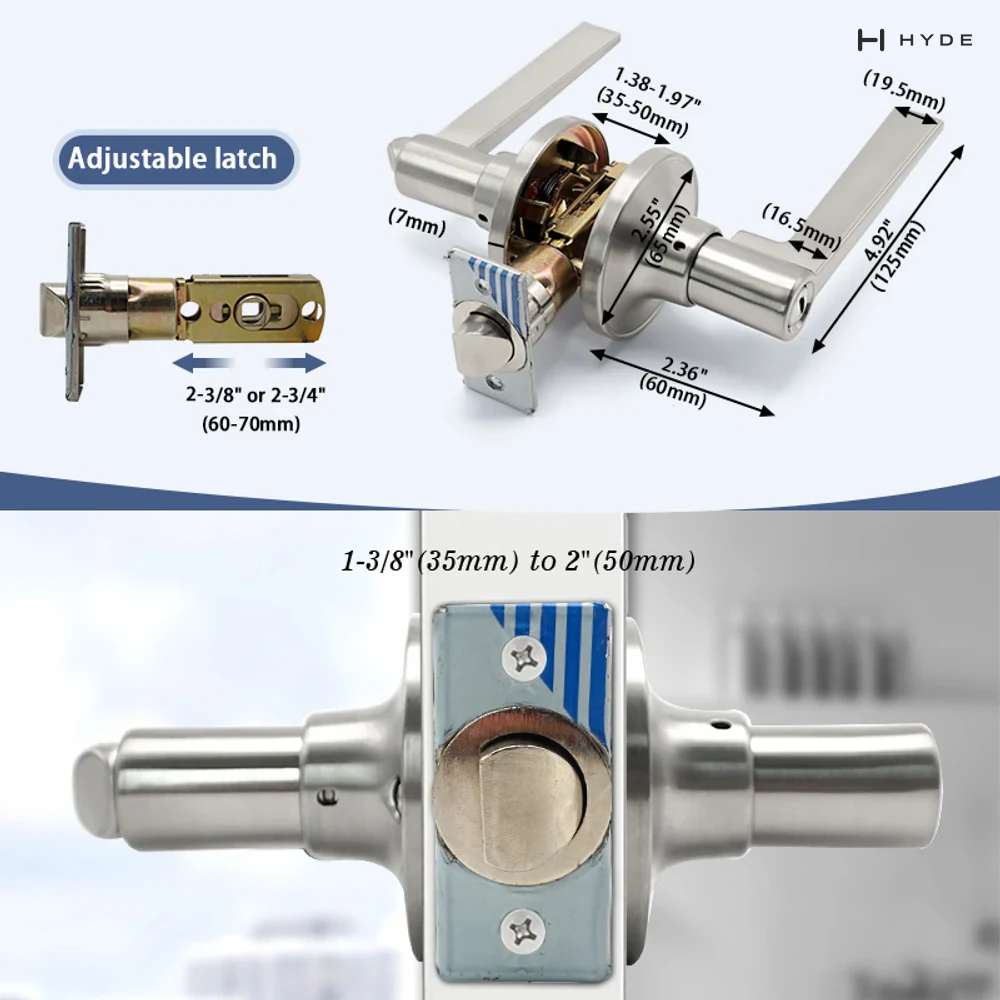

- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
853 SSBK
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Privacy, bathroom, turn button inside
- Finish
- Satin stainless steel (US32D)
Features
- Cost-effective and easy to install, ideal for residential use
- Key or thumb-turn locks/unlocks both levers
- Rotate thumb-turn counterclockwise or key clockwise to lock; reverse to unlock
- Zinc-plated steel chassis and latch for corrosion resistance
- Exposed trim available in stainless steel or brass
853 SSBK
Drawings
Drawings and files published for this model.
853 SSBK
Video
19 seconds of the part working.
853 SSBK
Common questions
- What is the 853 SSBK made from?
- The 853 SSBK is made from Zinc alloy.
- Which finishes is the 853 SSBK available in?
- The 853 SSBK is available in Satin stainless steel (US32D).
- What backset does the 853 SSBK use?
- The 853 SSBK has a backset of 60/70mm.
- What door thickness does the 853 SSBK suit?
- The 853 SSBK suits a door thickness of 35mm to 45mm adjustable.
- What function does the 853 SSBK provide?
- The 853 SSBK provides Privacy, bathroom, turn button inside.
- How many cycles is the 853 SSBK tested to?
- The 853 SSBK is tested to 200,000 cycles.
853 SSBK
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish853 SSBK, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
