01 / 06
Lever Handle · 45 models in this range

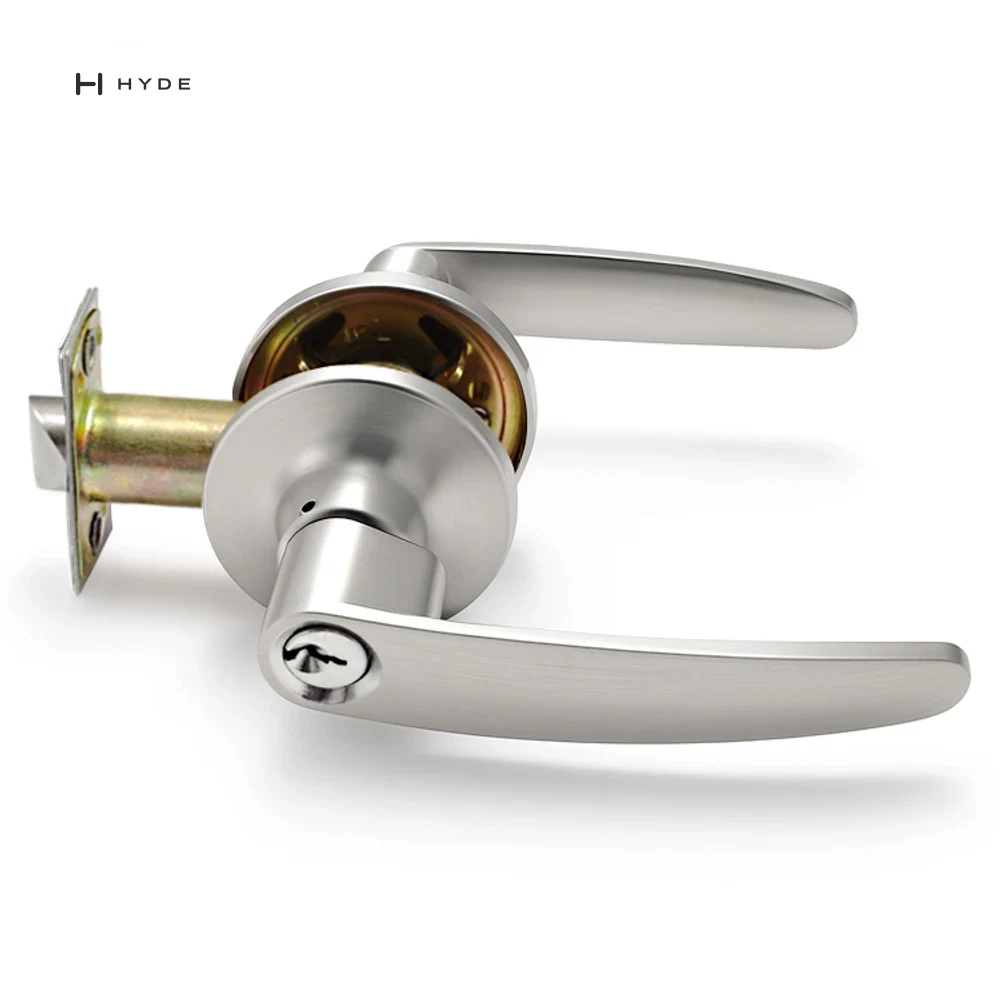

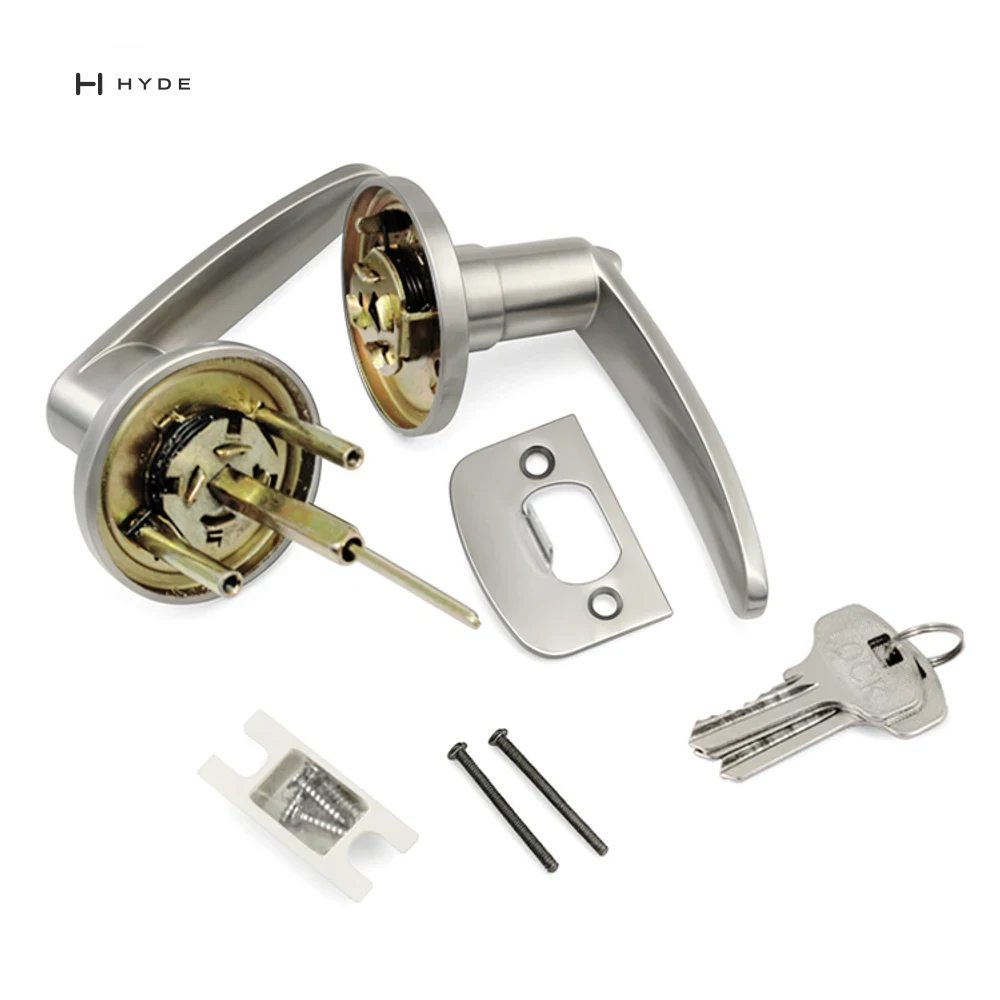

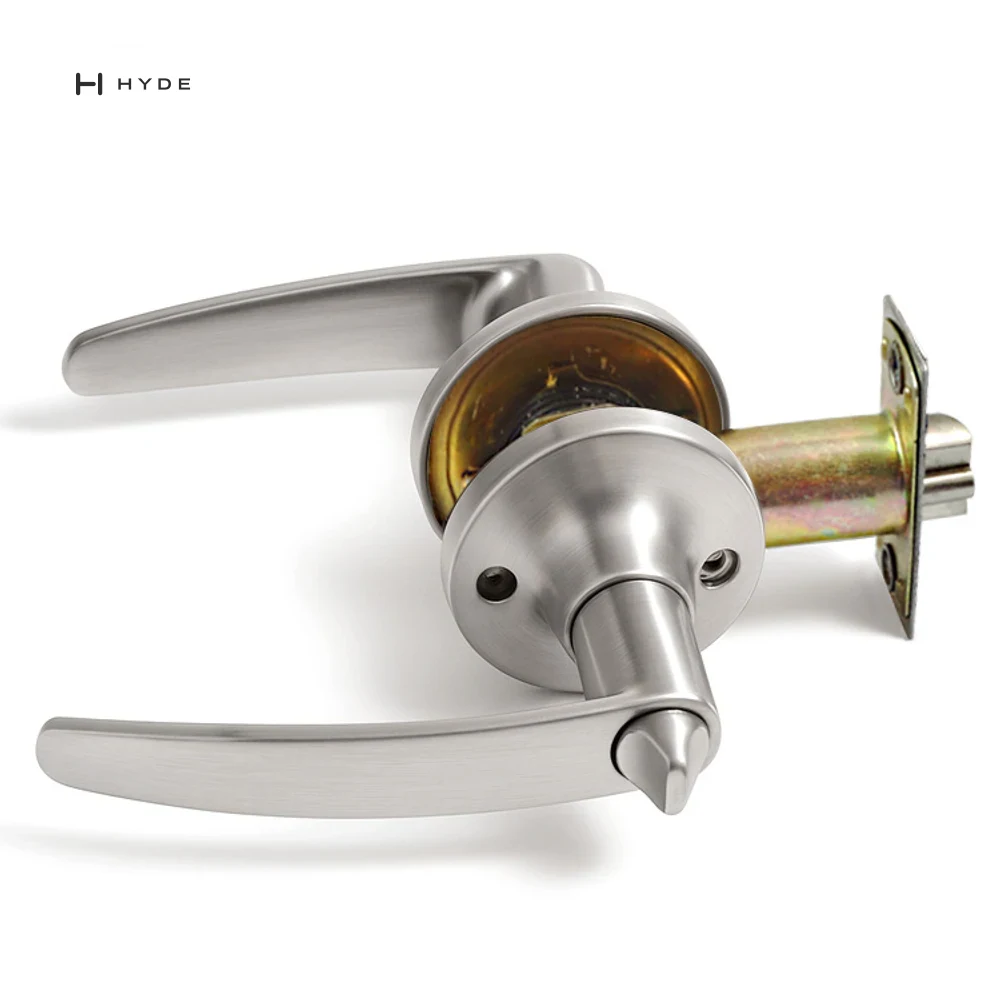

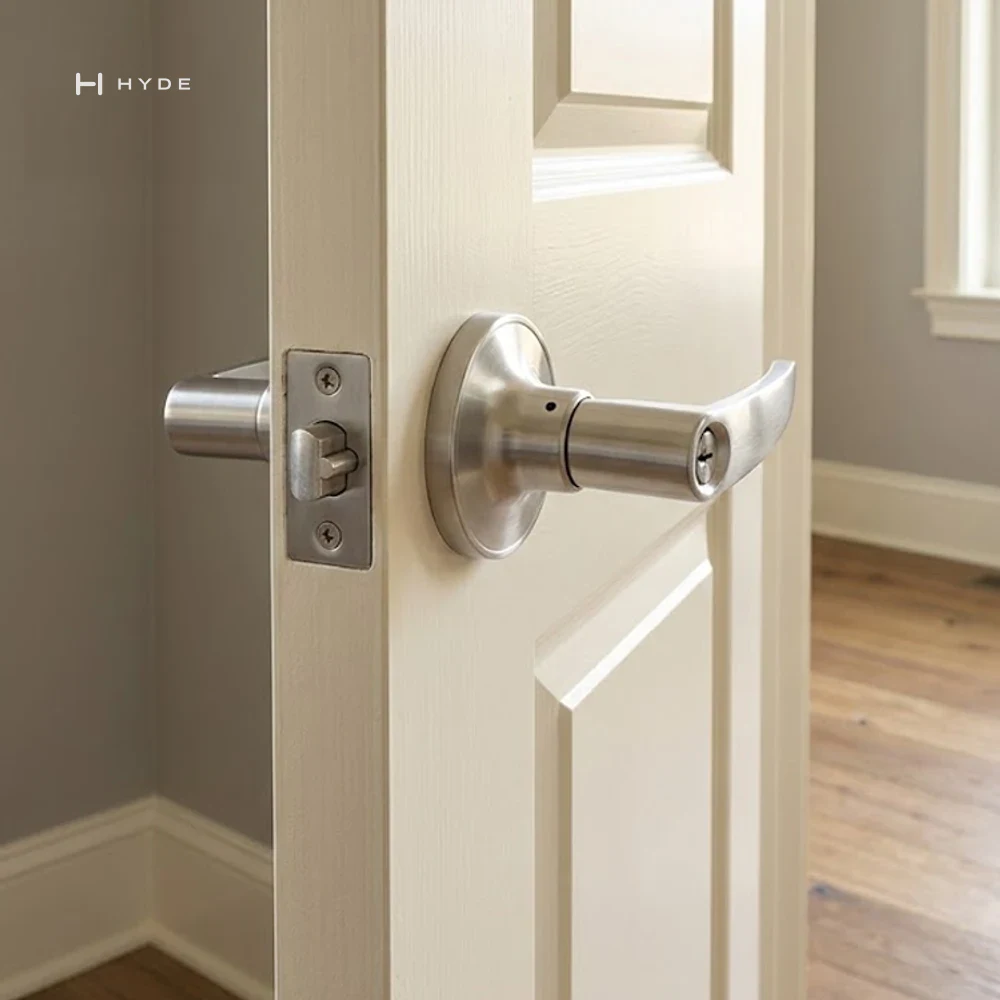

6491 SNET Tubular Lever Lock
Tubular lever lock in satin nickel, entrance function.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
6491 SNET
Technical specifications
As the record states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Material
- Zinc alloy
- Backset
- 60/70mm (2-3/8" / 2-3/4")
- Door thickness
- 35mm to 45mm adjustable (1-3/8" / 1-3/4")
- Cycle life
- 200,000 cycles
- Chassis
- Solid steel, zinc plated for corrosion resistance
- Trim
- Zinc die-casting electro-plated or solid brass
- Handing
- Fully reversible, left or right hand
- Function
- Entrance, keyed outside
- Keying
- Can be keyed alike with deadbolts, or master keyed
- Finish
- Satin nickel
6491 SNET

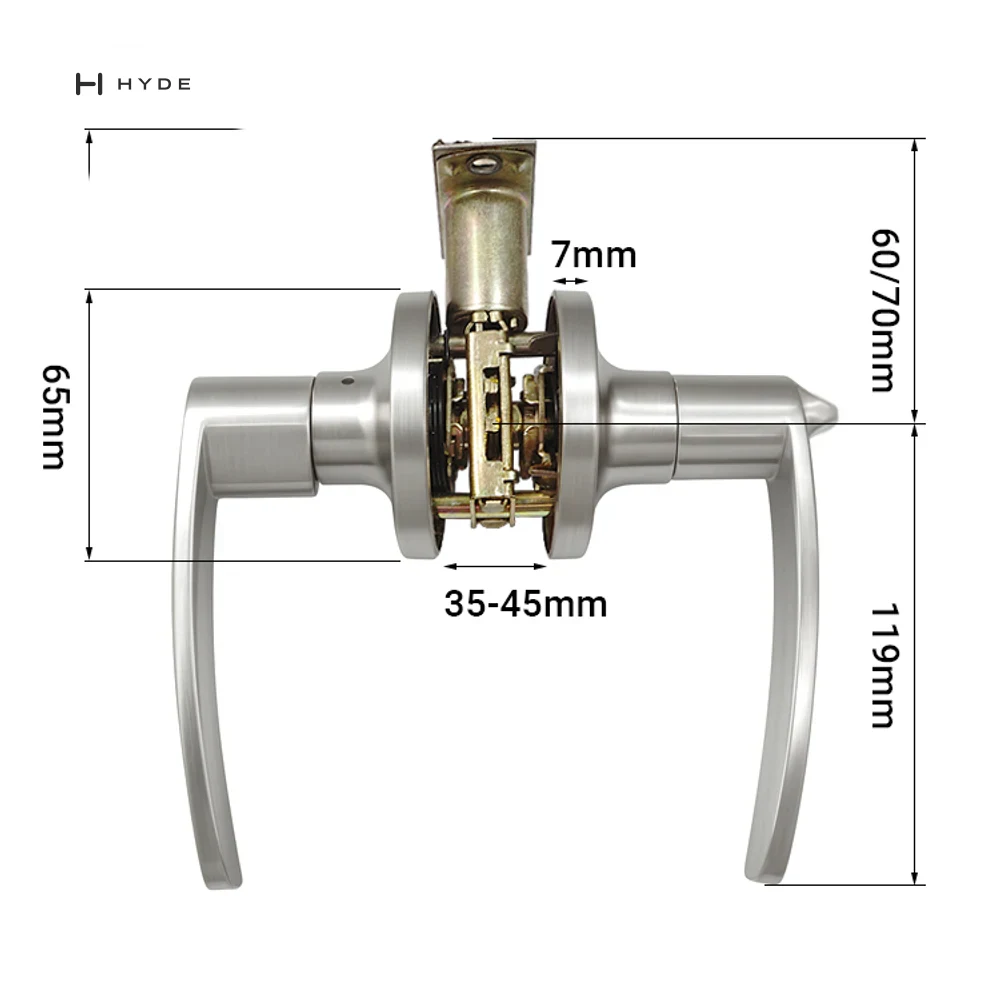

Drawings
Drawings and files published for this model.
6491 SNET
Video
32 seconds of the part working.
6491 SNET
Common questions
- What is the 6491 SNET made from?
- Material of the 6491 SNET: Zinc alloy.
- Which finishes is the 6491 SNET available in?
- Finishes available for the 6491 SNET: Satin nickel.
- What backset does the 6491 SNET use?
- Backset of the 6491 SNET: 60/70mm.
- What door thickness does the 6491 SNET suit?
- Door thickness for the 6491 SNET: 35mm to 45mm adjustable.
- What function does the 6491 SNET provide?
- Function of the 6491 SNET: Entrance, keyed outside.
- How many cycles is the 6491 SNET tested to?
- Cycle rating of the 6491 SNET: 200,000 cycles.
6491 SNET
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finish6491 SNET, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
