D-5062 Floor Spring
45# steel double-action floor spring for timber and metal doors. Max door weight 60kg / 100kg.
- Variants
- D-5062.60 / D-5062.100
- Double action
- Yes
- Max door width (spindle to edge)
- ≤800mm / ≤1000mm (31-1/2" / 39-3/8")
- Min door thickness
- ≥42mm (1-5/8")
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
D-5062
Technical specifications
As this model's specification states them. Where a row is missing, ask: we confirm it against your drawing rather than guess.
- Variants
- D-5062.60 / D-5062.100
- Double action
- Yes
- Max door width (spindle to edge)
- ≤800mm / ≤1000mm (31-1/2" / 39-3/8")
- Min door thickness
- ≥42mm (1-5/8")
- Max door weight
- 60kg / 100kg
- Max opening angle
- 125°
- 90° hold-open
- Yes
- Two-stage closing valve
- Yes
- Closing force
- EN3 / EN4
- Material
- 45# steel
- Available finishes
- Satin stainless · Matt black
- Suitable door types
- Wooden Door · Metal Door
D-5062
Drawings
Drawings and files for this model.
D-5062
Ordering
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
- 1Model and finishD-5062, and the finish or color
- 2QuantityPer order, and per year if it repeats
- 3Destination countryFor freight and export documents
- 4ChangesA drawing or photograph of anything you want changed
D-5062
Next steps
- Compare every model in this range
One table, one row per model, across the specifications that differ between them.
- Ordering, lead times and samples
Minimum order quantity, production lead time, sample policy, payment terms and OEM work — answered in full.
D-5062
More in the Floor Spring series
Floor Spring
Model D-5063
45# steel
Floor Spring

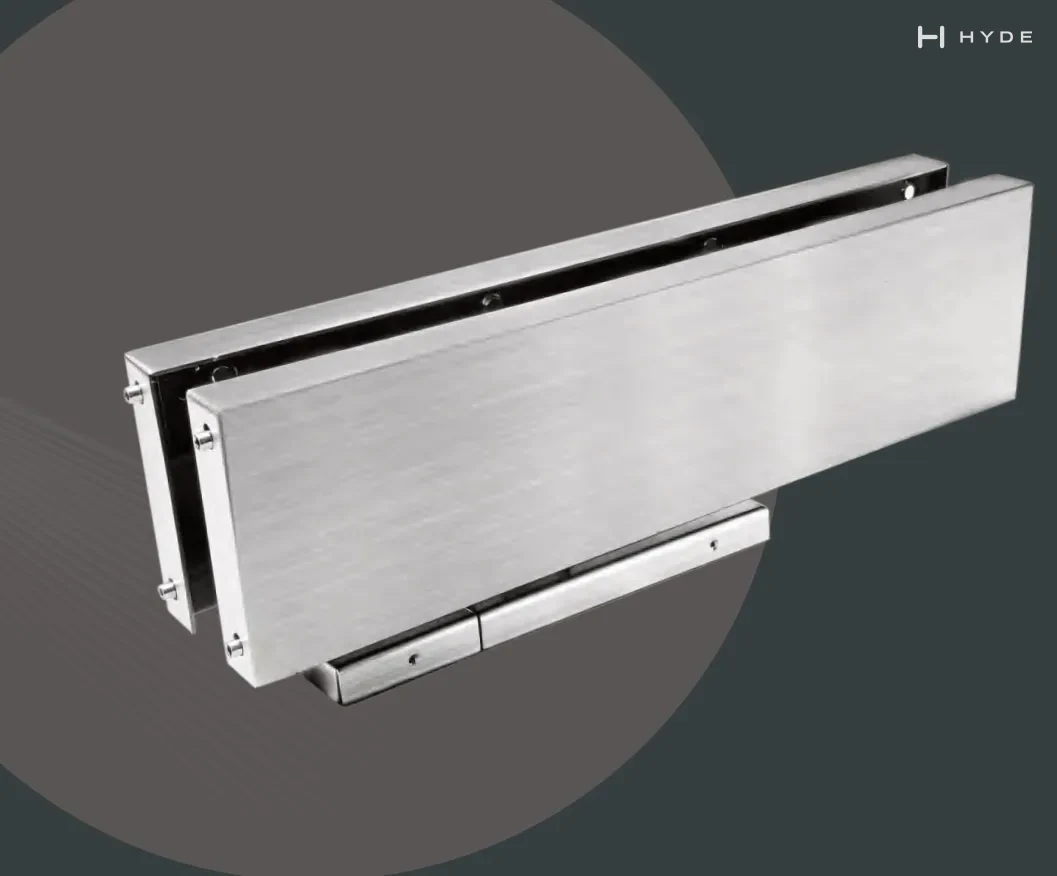

Model DZ-2031
45# steel
Floor Spring

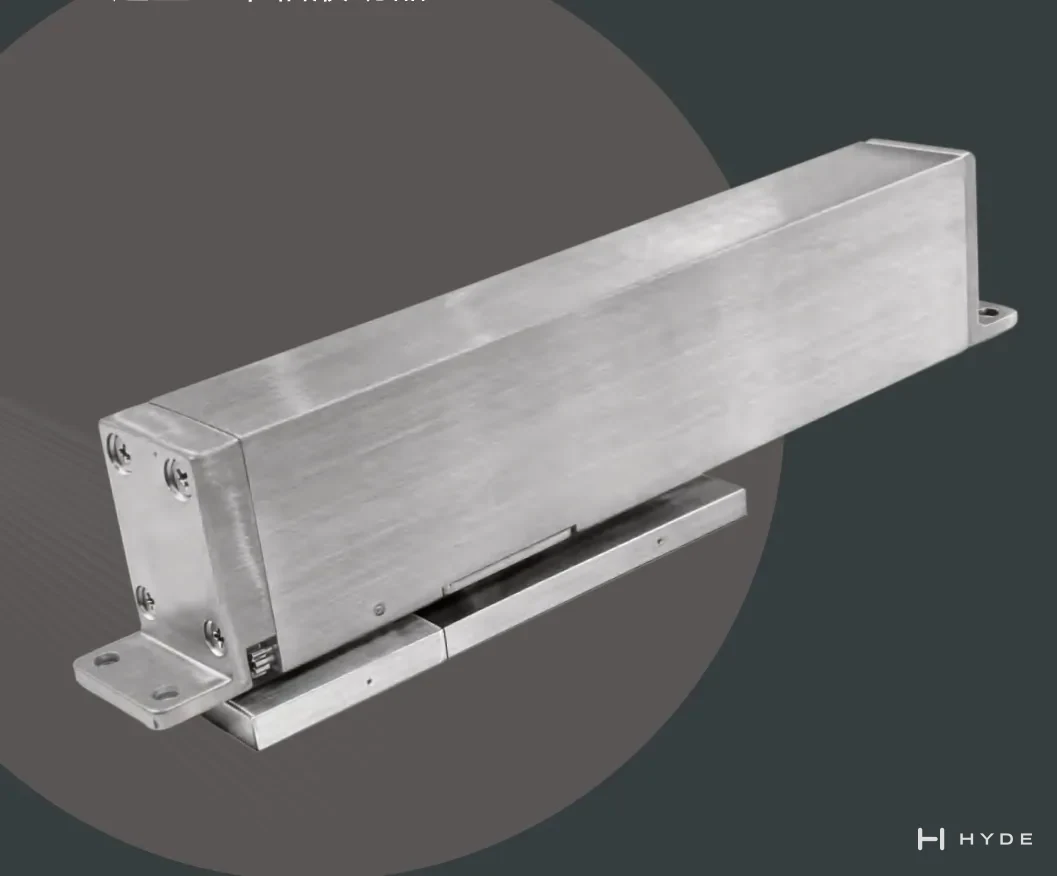

Model DZ-2039
