Night Latch And Rim Lock

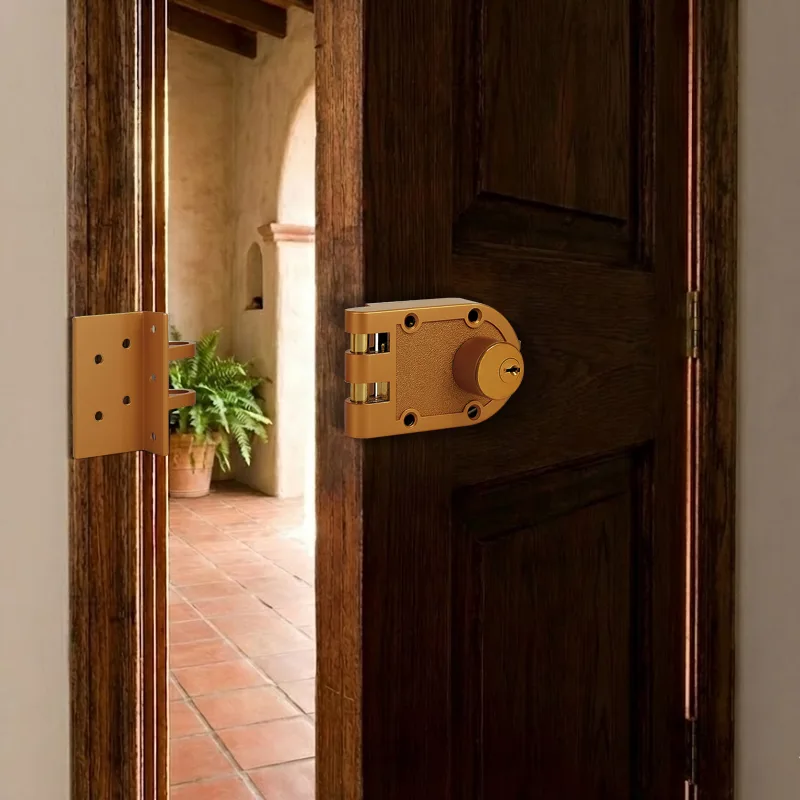

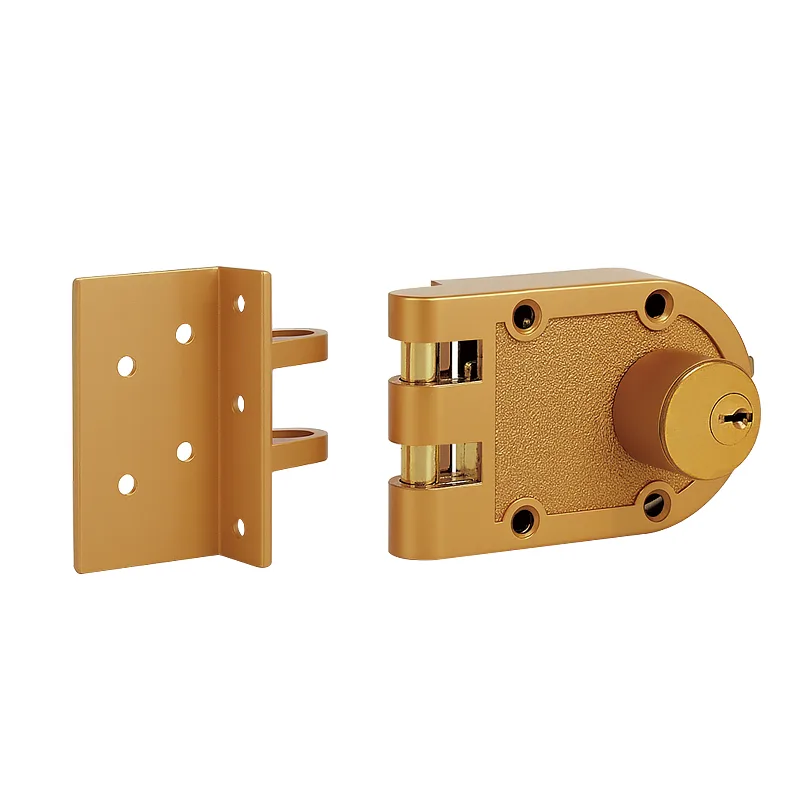

H102 Night Latch And Rim Lock
Model
H102
Zinc Alloy night latch and rim lock.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Zinc Alloy
- Door thickness
- 35mm to 55mm standard; 30mm to 60mm on request (1-3/8" / 2-3/16" / 1-3/16" / 2-3/8")
- Latch extension
- 13mm, with inside deadlocking button (1/2")
- Deadbolt throw
- 25mm on rim deadbolt versions (1")
- Chassis
- Zinc die-cast case, zinc-plated steel internal components
- Strike
- Angle strike standard for inward-opening doors; flat strike available
- Handing
- Fully reversible, left or right hand
- Function
- Single cylinder, double cylinder or self-locking
- Feature
- Anti-picking slide gate on single-cylinder deadlock
Common questions
- What is the H102 made from?
- The H102 is made from Zinc Alloy.
- What door thickness does the H102 suit?
- The H102 suits a door thickness of 35mm to 55mm standard; 30mm to 60mm on request.
- What function does the H102 provide?
- The H102 provides Single cylinder, double cylinder or self-locking.
- Is the H102 handed?
- Handing for the H102: Fully reversible, left or right hand.
