Glass Door Handle
19-130MM Glass Door Handle
Model
19-130MM
Stainless steel glass door handle.
For a quotation, send the model and finish, the quantity, the destination country, and a drawing or photograph of anything you want changed.
Or email us about this model: tec@cantonlock.com
Find 19-130MM on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.
Technical specifications
- Material
- Stainless steel
- Plate size
- 200 × 65mm (7-7/8" × 2-9/16")
- Plate thickness
- 1.2mm (1/16")
- Grip center distance
- 148mm (5-13/16")
- Projection
- 60mm (2-3/8")
- Grip section
- 19mm (3/4")
- Slot width
- 20mm (13/16")

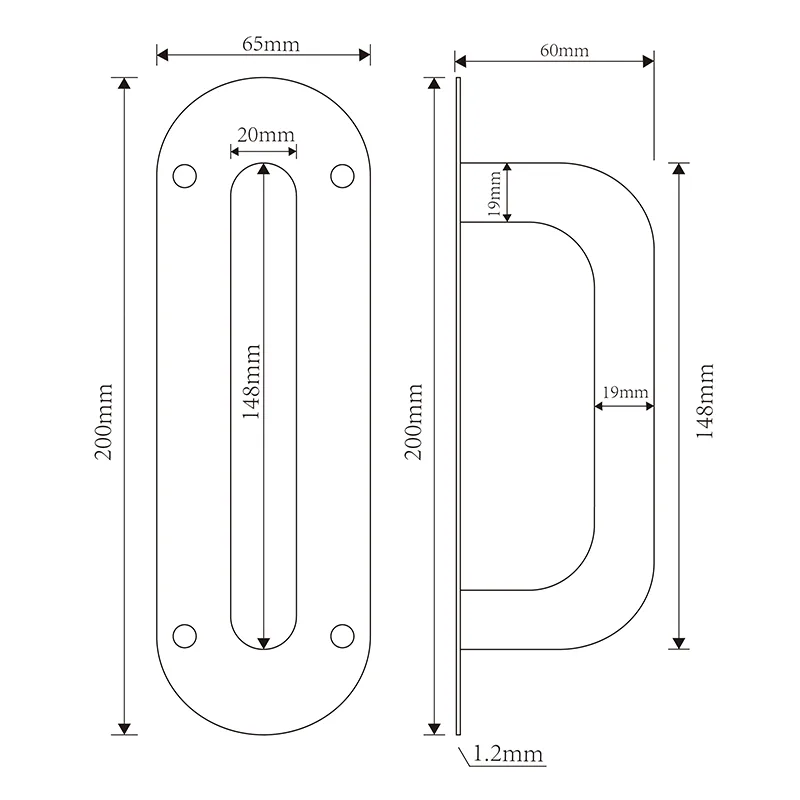

Dimensioned drawing
Plate 200 × 65mm, grip centers 148mm. Projection 60mm.
Drawn 1:1 from the published specification
Common questions
- What is the 19-130MM made from?
- The 19-130MM is made from Stainless steel.
- What is the center distance on the 19-130MM?
- The center distance on the 19-130MM is 148mm.
- What size is the 19-130MM?
- The 19-130MM measures 200 × 65mm.
