Coleção Canton
Dobradiças de latão e aço
Brass, stainless-steel and steel hinge ranges for architectural door applications.
Aquí solo se publican fichas verificadas. El resto del catálogo histórico se está preparando para su publicación estructurada.
Canton Hyland fabrica cada bisagra de latón y acero de esta gama en Guangdong, China, con 29 modelos publicados. El plazo de producción parte de 30 días desde la confirmación del pedido, y producimos bajo marca propia del cliente (OEM). Escriba al equipo de exportación con su cuadro de puertas para recibir modelos, acabados y una fecha confirmada.
29 produtos · a mostrar 1–20
Ordem de catálogo
Size 6*3*3mm（Customizable）
Brass and Steel Hinges
Model 6*3*3mm
201 / 304 Stainless steel
Brass and Steel Hinges
Model AAH024 · Video
201 / 304 Stainless steel
Brass and Steel Hinges
Model B024
Brass
Brass and Steel Hinges
Model B025
Brass
Size 3.5"x2.28"x1.6MM
Brass and Steel Hinges
Model BL027 · Video
Iron
Size 4"x3"x2.5MM
Brass and Steel Hinges
Model BL028
Stainless Steel 304/201
Brass and Steel Hinges
Model BL029 · Video
201 / 304 Stainless steel
Brass and Steel Hinges
Model BL030 · Video
304 Stainless Steel
Brass and Steel Hinges
Model BL031 · Video
304 Stainless Steel
Brass and Steel Hinges
Model Brass Piano Hinge
Iron
Size 34*140*28mm/28*118*22mm/25*118*18mm/19*95*13mm/16*70*11mm
Brass and Steel Hinges
Model CH01
Zinc Alloy/304 Stainless Steel
Door Hinge

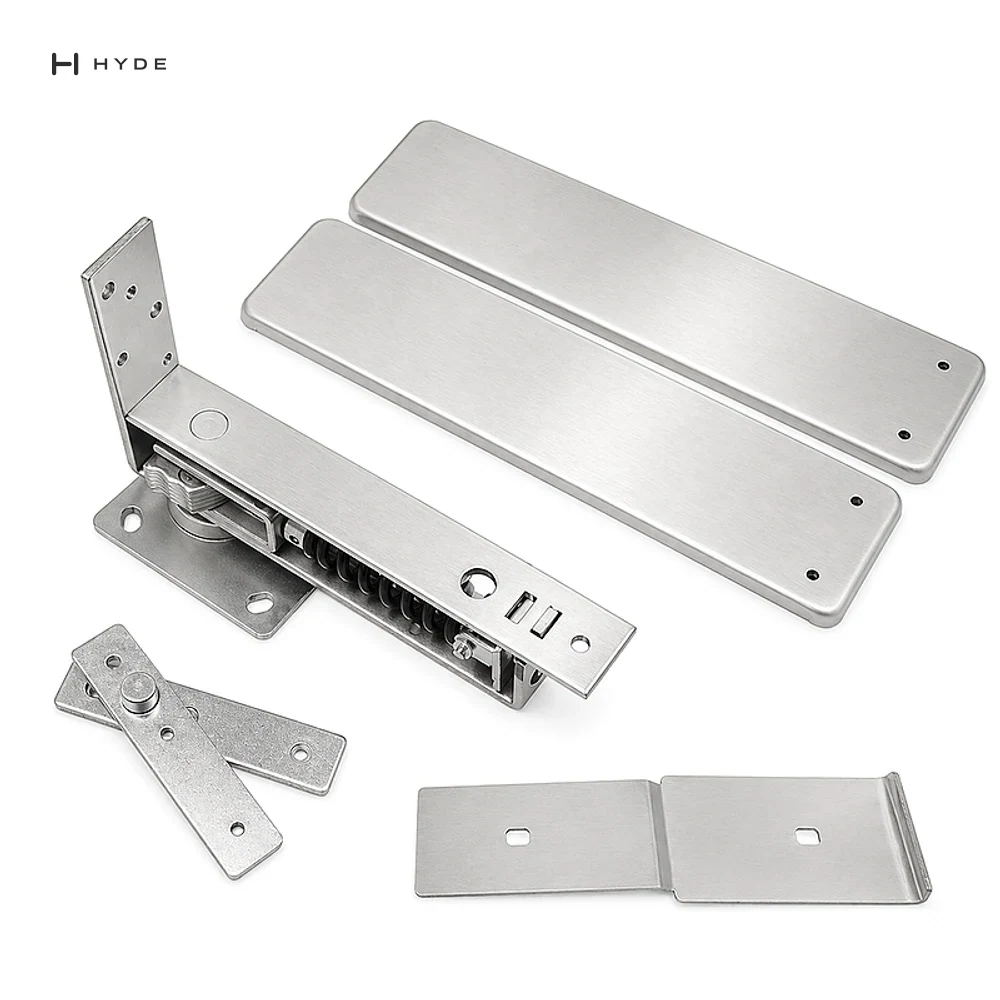

Model F100 SS
Iron
Brass and Steel Hinges
Model IH01 · Video
Iron
Brass and Steel Hinges
Model SS026
Stainless Steel
Size 4.0''x3.0''x2.0mm
Brass and Steel Hinges
Model SS027
Stainless Steel
Size 4.0''x3.0''x2.0mm
Brass and Steel Hinges
Model SSH011
304 Stainless Steel
Brass and Steel Hinges
Model SSH012
Stainless Steel 304
Brass and Steel Hinges
Model SSH013 · Video
Stainless Steel
Size 2x2x2
Brass and Steel Hinges
Model SSH015
Stainless Steel
Brass and Steel Hinges
Model SSH016 · Video
Stainless Steel
29 dobradiças de latão e aço — full model index
- 6*3*3mm — Brass and Steel Hinges
- AAH024 — Brass and Steel Hinges
- B024 — Brass and Steel Hinges
- B025 — Brass and Steel Hinges
- BL027 — Brass and Steel Hinges
- BL028 — Brass and Steel Hinges
- BL029 — Brass and Steel Hinges
- BL030 — Brass and Steel Hinges
- BL031 — Brass and Steel Hinges
- Brass Piano Hinge — Brass and Steel Hinges
- CH01 — Brass and Steel Hinges
- F100 SS — Door Hinge
- IH01 — Brass and Steel Hinges
- SS026 — Brass and Steel Hinges
- SS027 — Brass and Steel Hinges
- SSH011 — Brass and Steel Hinges
- SSH012 — Brass and Steel Hinges
- SSH013 — Brass and Steel Hinges
- SSH015 — Brass and Steel Hinges
- SSH016 — Brass and Steel Hinges
- SSH017 — Brass and Steel Hinges
- SSH018 — Brass and Steel Hinges
- SSH019 — Brass and Steel Hinges
- SSH020 — Brass and Steel Hinges
- SSH021 — Brass and Steel Hinges
- SSH022 — Brass and Steel Hinges
- SSH023 — Brass and Steel Hinges
- SSH031 — Brass and Steel Hinges
- Stainless Steel Door Hinge
Comparar modelos desta gama
As especificações que distinguem um modelo de outro, lado a lado. Uma célula vazia significa que ainda não publicámos esse dado para esse modelo.
| Modelo | Material | Finish | Size | Opening Angle | Function |
|---|---|---|---|---|---|
| B025 | Brass | Antique Brass (AB), Antique Copper (AC), Polished Brass (PB), Satin Brass (SB), Stainless Steel (SS), Bright Polished (SP), Satin Chrome (SC) | Customizable upon customer request | 90-180° | fix the door |
| BL030 | 304 Stainless Steel | Spray Coated / Matte Black / Satin / Antique Finish | Customized Size Available | 180° | Self Closing / Adjustable Tension / 90° Positioning |
| SSH023 | 201/304 Stainless Steel | AB / AC / PB / SB / SS / SP / SC (Custom Available) | 3.5”×3.5”×3.0mm / 4”×3”×3.0mm / 4”×4”×3.0mm (Custom Available) | 180° | Automatic Self-Closing (Adjustable Tension) |
| SSH031 | Stainless Steel | Stainless Steel (SS), Polished Stainless Steel (PSS), Antique Brass (AB), Antique Copper (AC), PVD | 4” × 3” | 180° (90° each direction) | Double Action, Self-Closing |
| 6*3*3mm | 201 / 304 Stainless steel | AB / AC / PB / SB / SS / SP / SC ；other available | 6*3*3mm（Customizable） | 180 Degrees | — |
| B024 | Brass | PB/SB/AB/AC/CP other finish to order | — | 90-180° | fix the door |
| BL028 | Stainless Steel 304/201 | — | 4"x3"x2.5MM | 90-180° | fix the door |
| BL031 | 304 Stainless Steel | Black / Silver / Bronze / Gold / Custom Finish | — | 180° / 360° Rotation | Self-Closing / Soft-Close Buffer / Multi-Angle Positioning |
| CH01 | Zinc alloy/304 Stainless steel | Antique Brass (AB), Antique Copper (AC), Polished Brass (PB), Satin Brass (SB), Stainless Steel (SS), Bright Polished (SP), Satin Chrome (SC) — other available | 34*140*28mm/28*118*22mm/25*118*18mm/19*95*13mm/16*70*11mm | — | concealed hinge |
| IH01 | Iron | Zinc Plated | Custom Sizes Available | 180° / 360° Rotation | — |
| SSH015 | Stainless Steel | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP), Satin Nickel (SN) | 2x2x2 | — | fix the door |
| SSH016 | Stainless Steel | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP), Satin Nickel (SN) | — | 90-180° | fix the door |
| SSH017 | Stainless Steel | Antique Brass (AB), Antique Copper (AC), Polished Brass (PB), Satin Brass (SB), Stainless Steel (SS), Bright Polished (SP), Satin Chrome (SC) | 4"x3"x2.5MM | 90°–180° | — |
| SSH022 | Stainless Steel | Polished Brass (PB), Satin Brass (SB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP) | 4"x3"x2.5MM | 90-180° | — |
| BL027 | Iron | BL | 3.5"x2.28"x1.6MM | — | — |
| F100 SS | Iron | Satin stainless steel (US32D) | — | — | Includes opening and closing speed regulation, spring tension is fully adjustable, door can swing 116 inwards or out wards, with stops at 0, 88 and 116 in both directions. |
| SSH012 | Stainless Steel 304 | Polished Brass (PB), Satin Brass (SB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP) | — | — | fix the door |
| SSH013 | Stainless Steel | Polished Brass (PB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP), Satin Nickel (SN) | — | — | fix the door |
| SSH018 | Stainless Steel | Polished Brass (PB), Satin Brass (SB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP) | 102x72.5x2.5MM | — | — |
| SSH019 | Stainless Steel | Polished Brass (PB), Satin Brass (SB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP) | 102x72.5x2.5MM | — | — |
| SSH020 | Stainless Steel | Polished Brass (PB), Satin Brass (SB), Antique Brass (AB), Antique Copper (AC), Chrome Plated (CP) | — | 90-180° | — |
