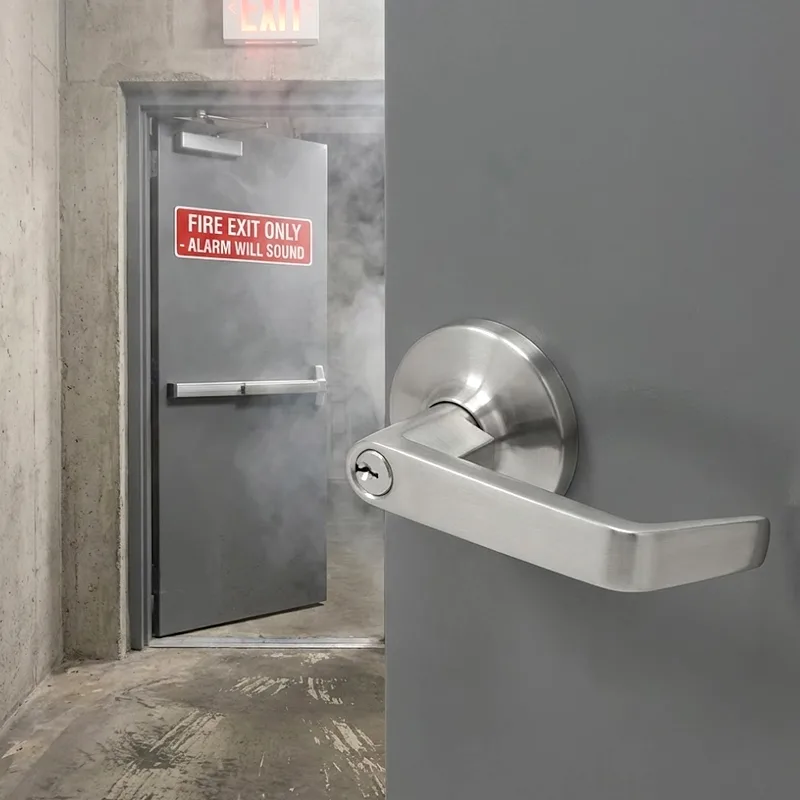

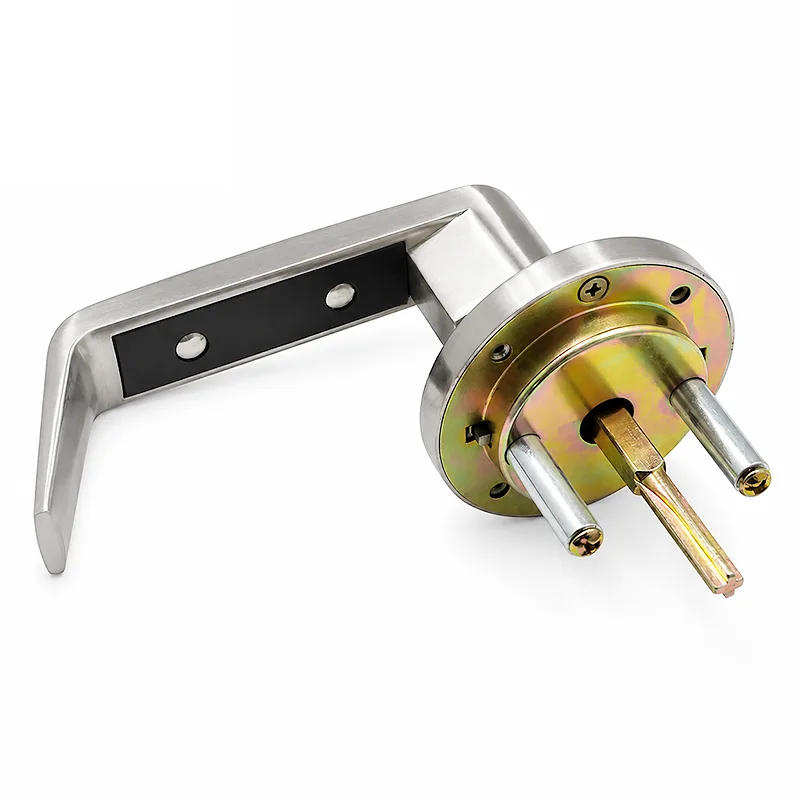

External handle for panic bar systems. Key-operated locking/unlocking.
Watch it work0:27Or email us about this model: tec@cantonlock.com
Find 027 on our Alibaba storefront
Opens our storefront already searched for this model — trade assurance, tiered pricing and order tracking are handled there.

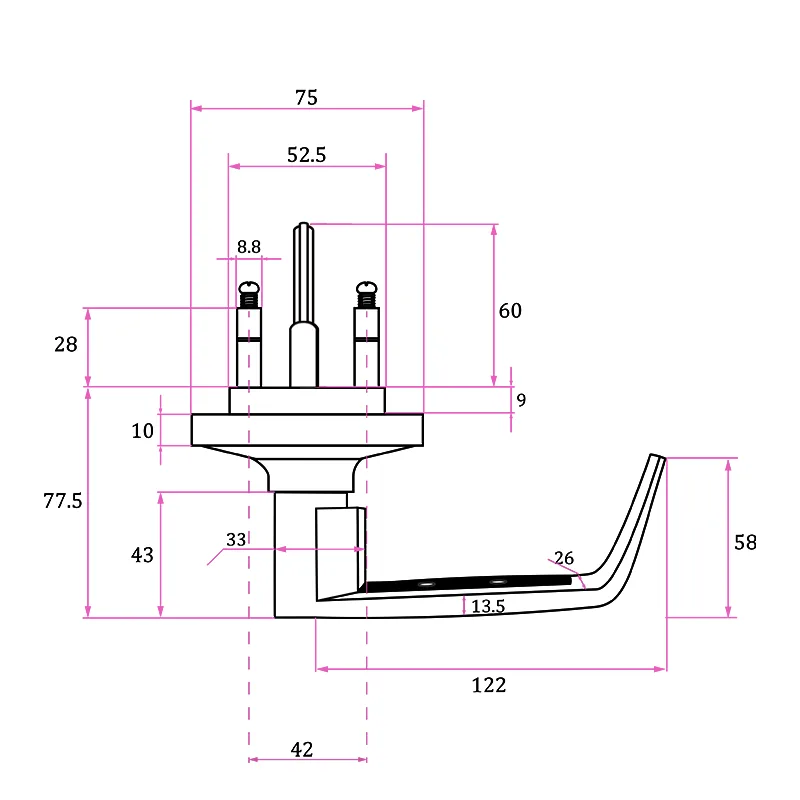

Technical specifications
- Type
- Trim handle · external handle for panic bar systems
- Material
- zinc alloy
- Lever length
- 122mm
- Plate width
- 75mm
- Fixing centres
- 52.5mm
- Plate height
- 77.5mm
- Lever drop
- 58mm
- Spindle length
- 60mm

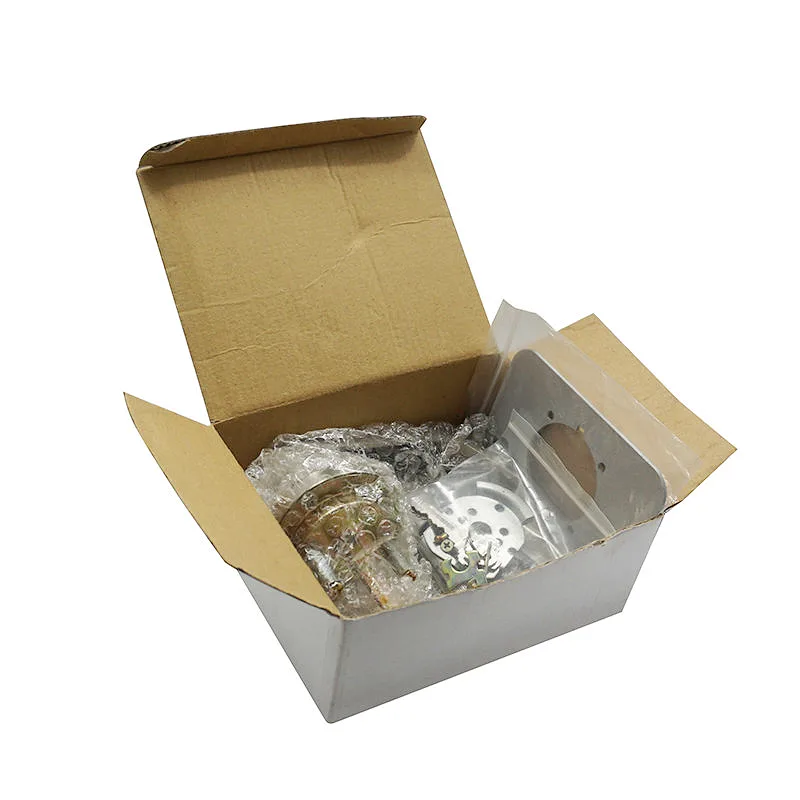

- Pieces per carton
- 20
- Carton size
- 37×29×41 cm
- Carton volume
- 0.044 m³
Common questions
- What type of hardware is the 027?
- The 027 is a Trim handle · external handle for panic bar systems.
- What is the 027 made from?
- The 027 is made from zinc alloy.
- How is the 027 packed?
- The 027 is packed as 20.
